Jacuzzi J-SHOWER TOWERTM User Manual

11
6. Attach the shower line to the water inlet and the fill
spout line to the fill spout. (See Illustration 6.)
7. Attach the three (3) pins to the bottom of the tower.
(See Illustrations 7 and 8.)
8. After these steps are completed, set the tower aside.
P1
WASHER
QTY.-2
FIBER WASHER

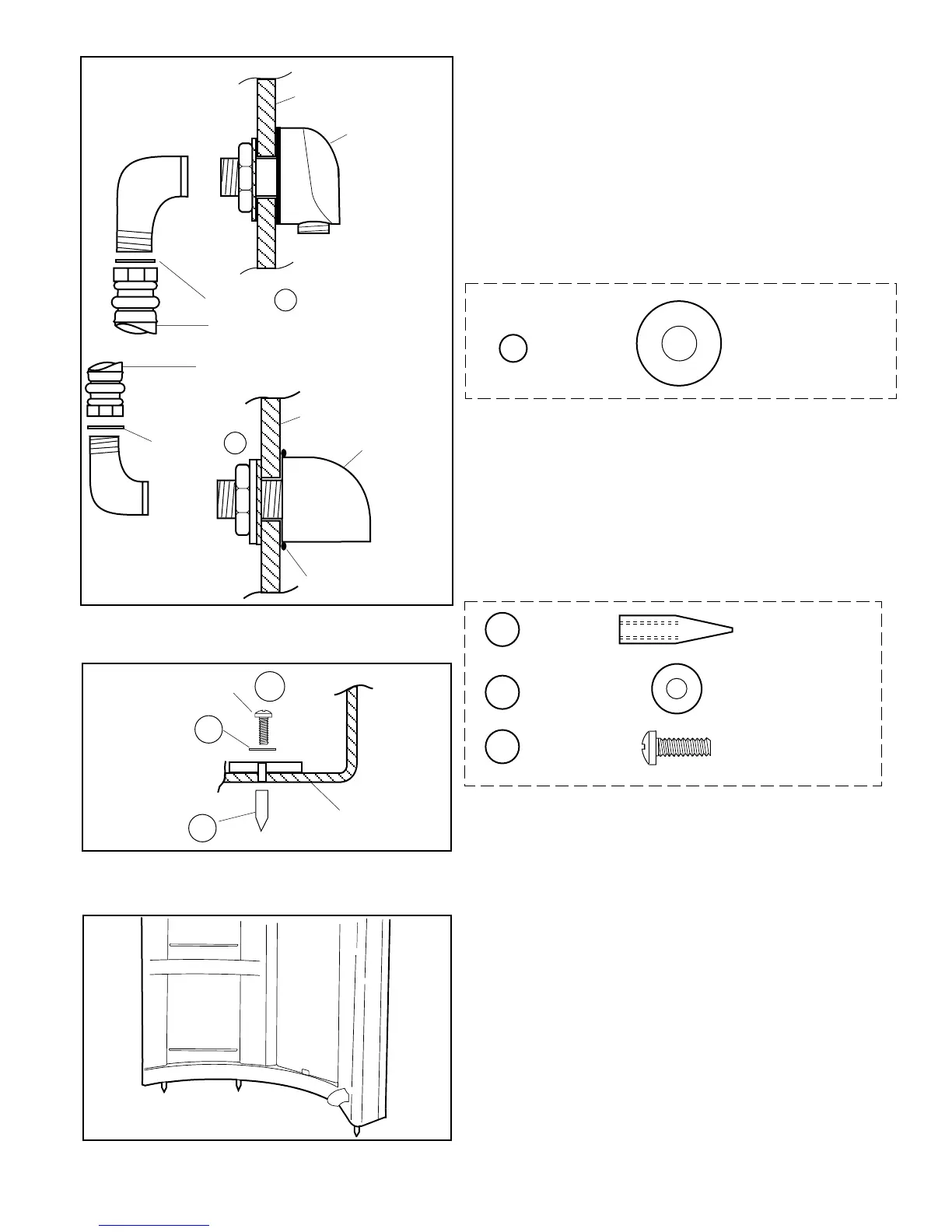

ILLUSTRATION 6
CAULK
FILL SPOUT
TOWER
WALL
12" HOSE
WASHER
12" HOSE
WATER
INLET
TOWER
WALL
ILLUSTRATION 8
PIN
QTY.-3
FLAT WASHER
#8 TYPE B
STAINLESS STEEL
WASHER
QTY.-3
PAN HEAD SCREW
#8-32 x 1/2"
STAINLESS STEEL
SCREW
QTY.-3
ILLUSTRATION 7
TOWER PINS
PIN #8-32
.25DIA X 1"
P1
WASHER
P1
H4
H5
H6
8-32 SCREW
WASHER
PIN
TOWER
BOTTOM
H6
H4
H5
LOCATED IN HARDWARE KIT
