20

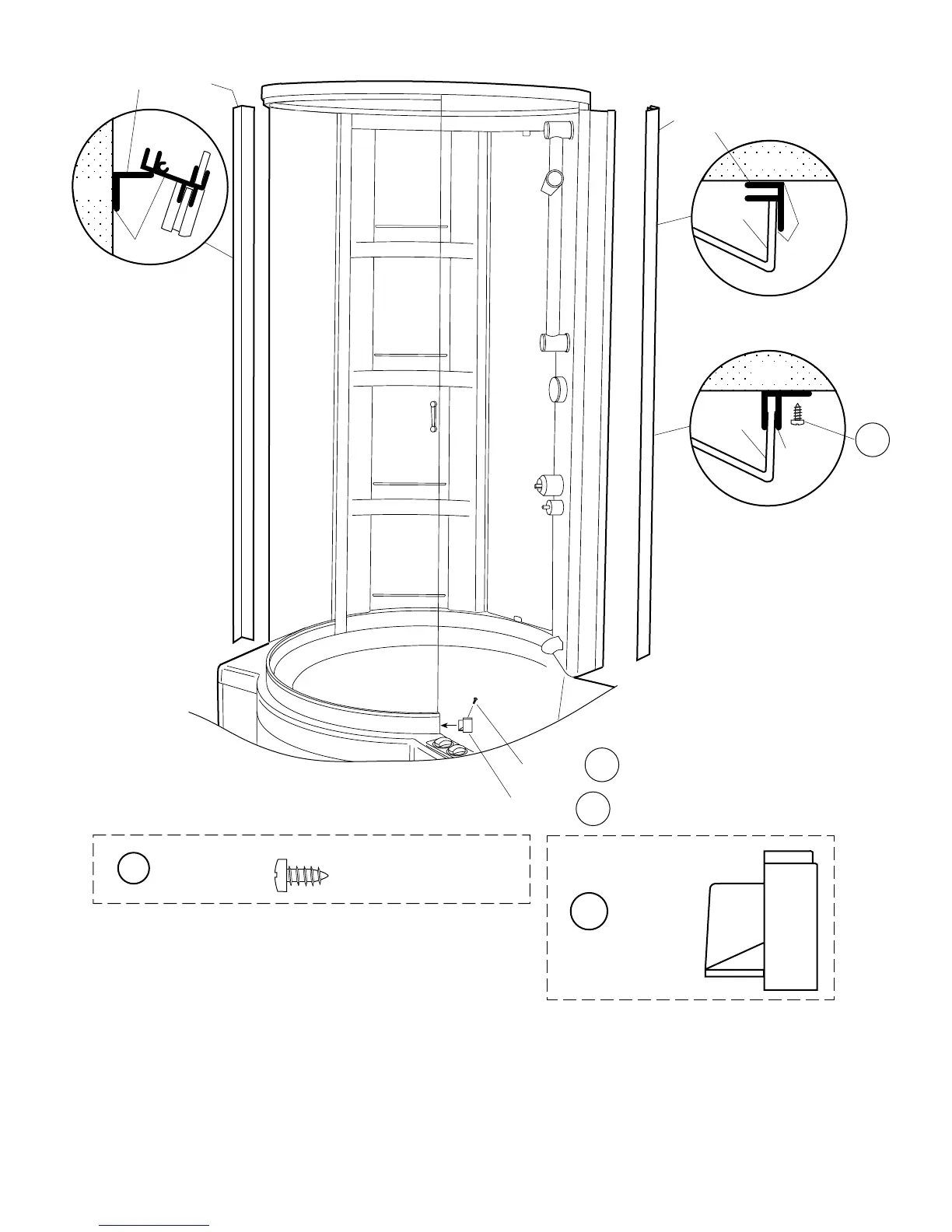

14. Install on the sides of the tower the aluminum extrusions provided. They may be sealed in place or secured with
screws. Seal the end cap and place into the end of the lower track. Secure with self taping screw. (See Illustration
24.)
CAULK
BACK
WALL
WALL
END CAP
F-EXTRUSION
CAULK
WALL
L-EXTRUSION
CAULK
BACK
WALL
WALL
OR
ILLUSTRATION 24
H16
(6)
H9
SCREW
H9
M3.5X9.5MM
STAINLESS STEEL
SCREW
QTY.-7
H9
LOCATED IN HARDWARE PACK
CAP
QTY. -1
H16
