TOWER ASSEMBLY
1. Assemble the four (4) bails to the tower wall.
Do not overtighten the nuts on the threaded
shaft end. Overtightening may break the stud.

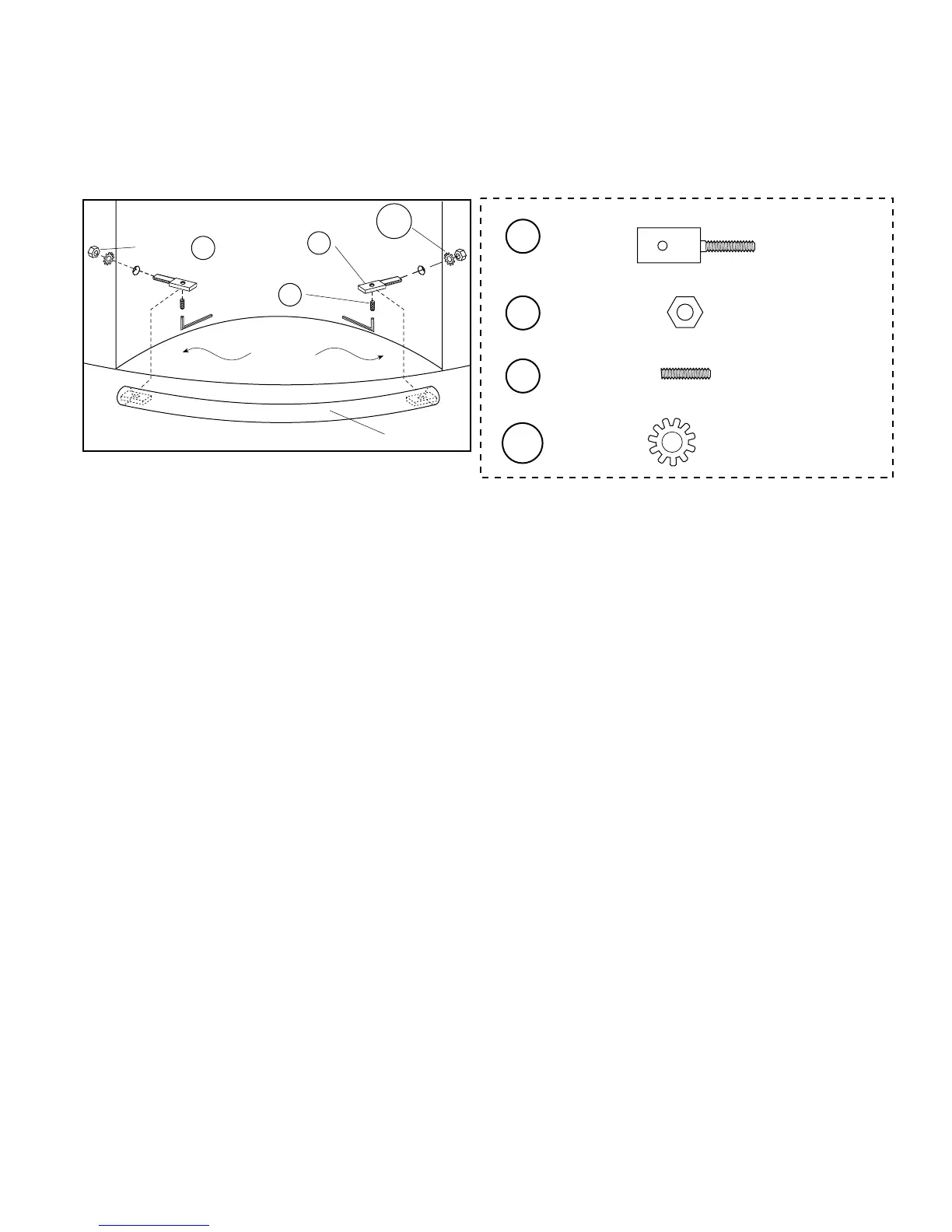

ILLUSTRATION 1
BAIL
SET SCREW (8)
BOLT (8)
H1
SHELF
NUT (8)
H2
H3
WASHER (8)
H1
BOLT
QTY.-8
SLOT
FASTENER
10 X32
H2
NUT
QTY.-8
HEX NUT
10 x 32
H3
SCREW
QTY.-8
SET SCREW
6 x 32
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
WB3
WB3
WASHER
QTY.-8
