Jacuzzi J-SHOWER TOWERTM - Tower Installation

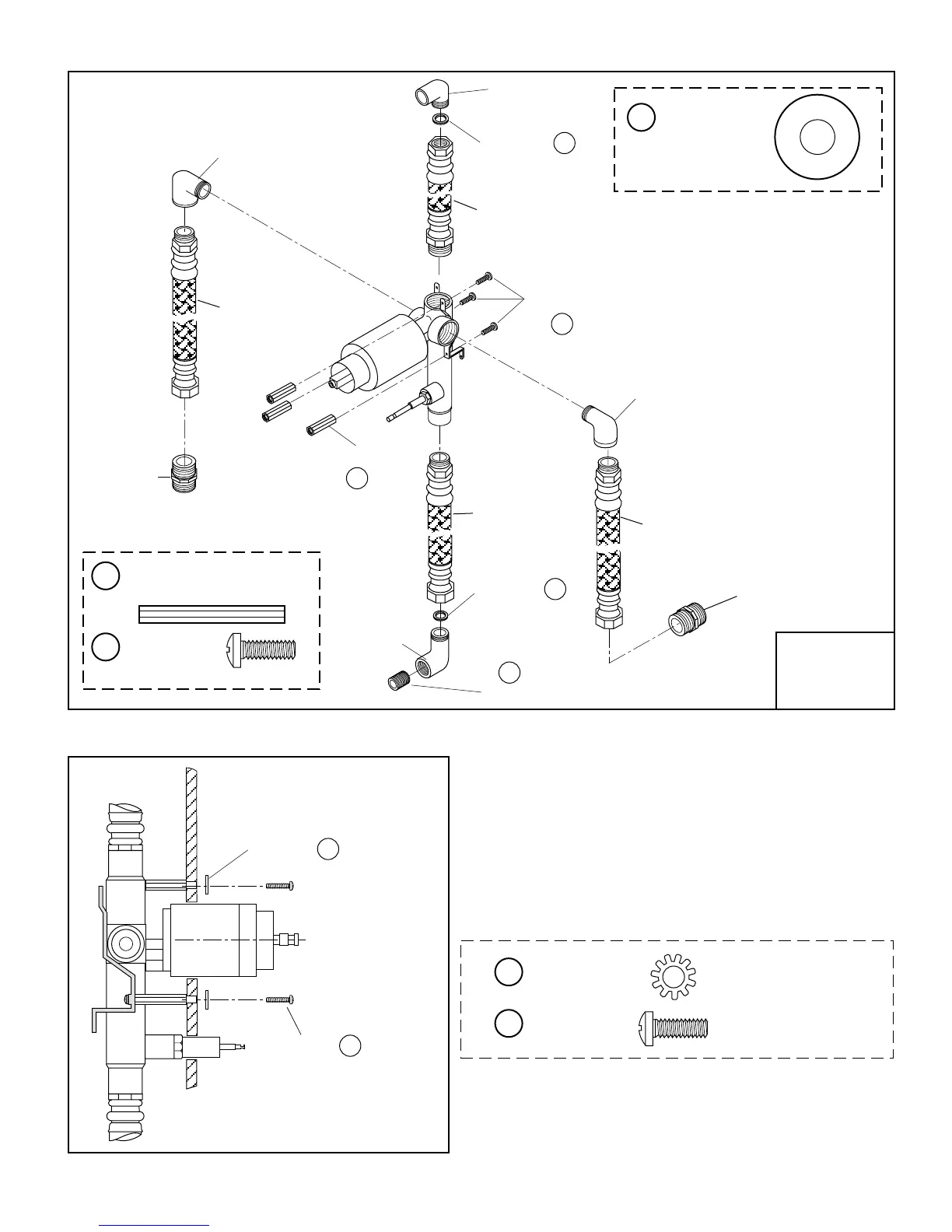

ILLUSTRATION 5
ATTACHING DIVERTER VALVE TO SHOWER WALL
SCREW
QTY.-3
PHILLIPS HEAD
SCREW M4X12
STAINLESS STEEL
EXTERNAL TOOTH
LOCK WASHER M4
P3
WASHER
QTY.-3
ILLUSTRATION 4
WATER LINES TO MIXER/DIVERTER VALVE
SCREWS
M/F 90° ELBOW
M/F 90° ELBOW
WASHER
P1
WATER SUPPLY
TO SHOWER (12")
COLD WATER
LINE (74")
COUPLING
WASHER
P1
WATER SUPPLY
TO FILL SPOUT
(12")
M/F 90°
ELBOW
M/F 90° ELBOW
(LOCATED IN
PLUMBING KIT
QUANTITY 4)
COUPLING
SCREWS (3)
P4
STANDOFF (3)
HOT WATER
LINE (74")
WASHER
P3
NIPPLE
P2
STANDOFF
QTY.-3
SCREW
QTY.-3
M4X12
✳
USE
APPROVED
PIPE
SEALANT
FIBER
WASHER
QTY.-2
FIBER WASHER
P4
P1
P5
P4
P4
P2
✳
✳
✳
✳
✳
✳
✳
✳
✳
10
4. Attach the Hot/Cold water lines, shower line, and fill
spout line to the mixer/diverter valve. (Use an
approved pipe sealant on threads.) Attach standoffs
to the mixer/diverter valve. (See Illustration 4.)
5. Attach the mixer/diverter valve to the shower wall.
(See Illustration 5.)
