13

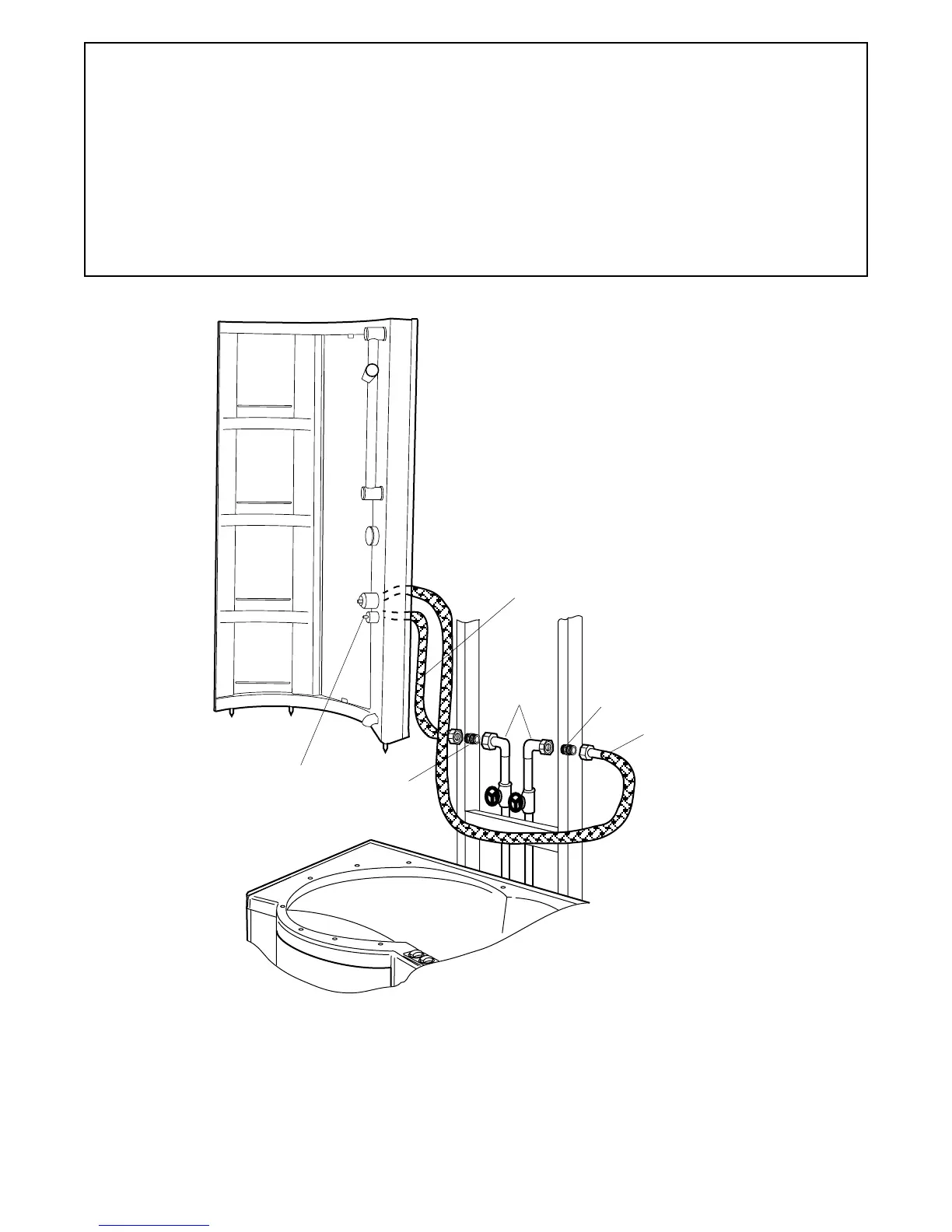

ILLUSTRATION 10
3. Attach Hot and Cold water supply lines of the mixer/diverter to the stub-out supply lines. (See Illustration 10.)
4. Locate the on/off handle and temporarily place it on the mixer valve. (See Illustration 26.) With the mixer/
diverter valve in the OFF position, turn on the water supply. Check for leaks at all connectors. Turn on the
water to the fill spout and check for leaks. Push the diverter knob shaft in and check for leaks at the shower
line. Seal any leaks and continue.
Although the J-Shower Tower is shipped partially assembled, it will have to be partially disassembled to
install. After removing packing materials, follow the instructions below.
1. Remove end cap on the lower track. (Page 20, illustration 24.)
2. Remove the top ring. (Page 17, illustration 19.)
3. Remove the fixed panel with bottom rail. (Page 16, illustration 15 .)
4. It is not necessary to remove bails or wall bar. Water connections will have to be removed to apply sealant.
DISASSEMBLY INSTRUCTIONS
HOT WATER
SUPPLY LINE
COLD WATER
SUPPLY LINE
HOT/COLD
WATER
STUB-OUT
WITH
VALVES
DIVERTER
KNOB SHAFT
COUPLING
COUPLING
