FIXED PANEL ASSEMBLE TO BATH
8. Screw 1-1/2" Allen set screw 3/4" deep into the bottom of the fixed panel. Lay a 1/4" bead of sealant under the
bottom rail and inside the vertical frame. Place the assembly against the vertical edge of the tower and onto the
bath surface. (See Illustration 15.) Secure the assembly to the bathtub using one (1) nut and washer and four
(4) screws and washers following the fastening sequence. Gently push on the shaded portion of the bottom rail
(see Illustration 15) to align with the holes in the bath shell. After installing the fixed panel, apply sealant along
all four inside edges of the glass frame. Clean up excess sealant.
VERTICLE
EDGE OF
TOWER
1
2
3
4
5
FASTENING
SEQUENCE

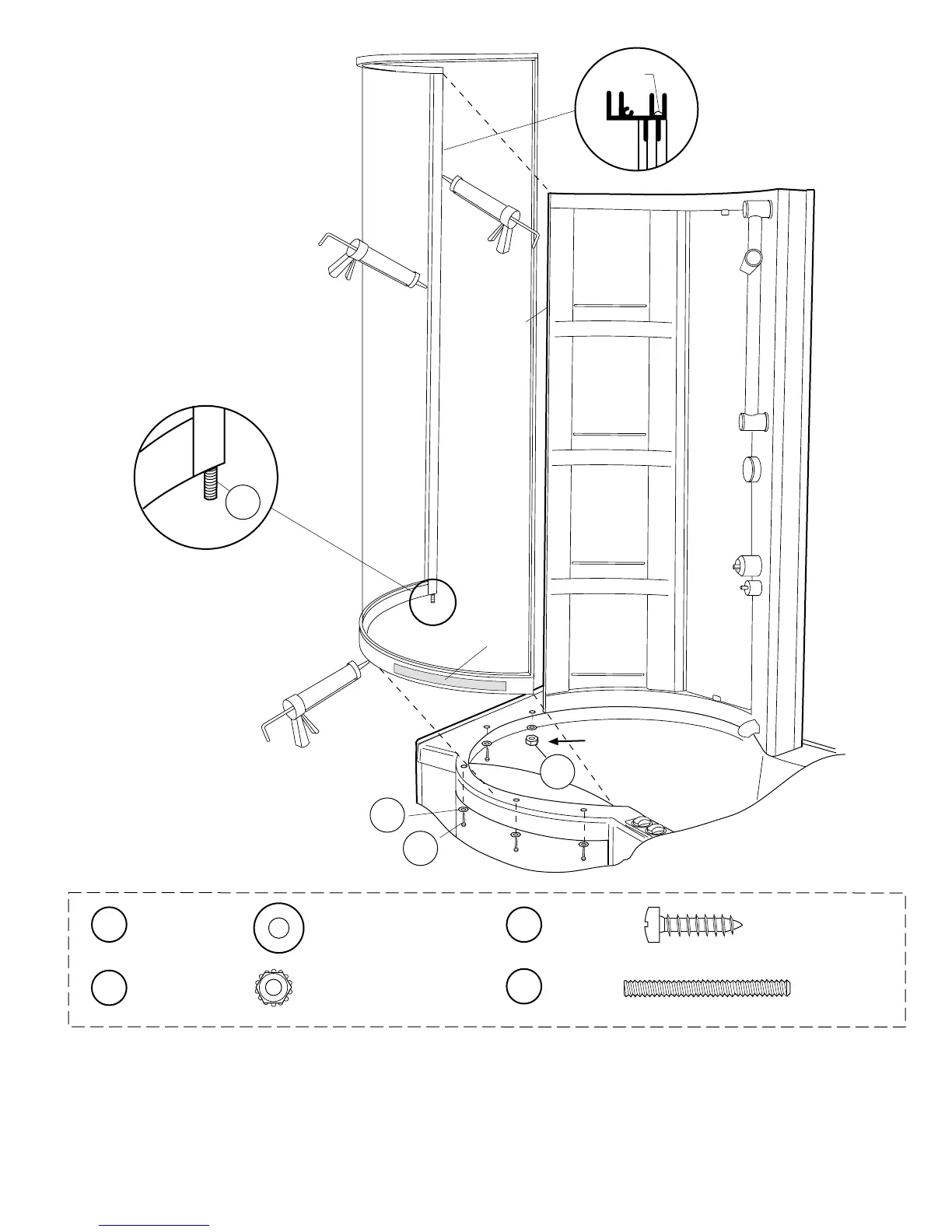

ILLUSTRATION 15
CAULK
(5)
H17
M4.2X19MM
STAINLESS STEEL
SCREW
QTY.-4
(4)
SET SCREW
#8-32 x 1 1/2"
SCREW
QTY.-1
H17
GENTLY
PUSH
THIS
AREA
H8
FLAT WASHER
#8 TYPE B
STAINLESS STEEL
WASHER
QTY.-5
H5
HEX LOCKNUT
#8-32
NUT
QTY.-1
H7
H5
H8
H7
LOCATED IN HARDWARE KIT
