JWI-3000 4
CONN
1
2
3
4
5
E+
E-
S+
S-
LOAD-CELL
Shield
☆
Zeros the display
☆
Short press to save and exit from the setting mode
☆
Long press to exit from the setting mode without saving.
UNIT/SET
key
☆
Exchange the weighing units
☆
Long press to enter the parameter setting

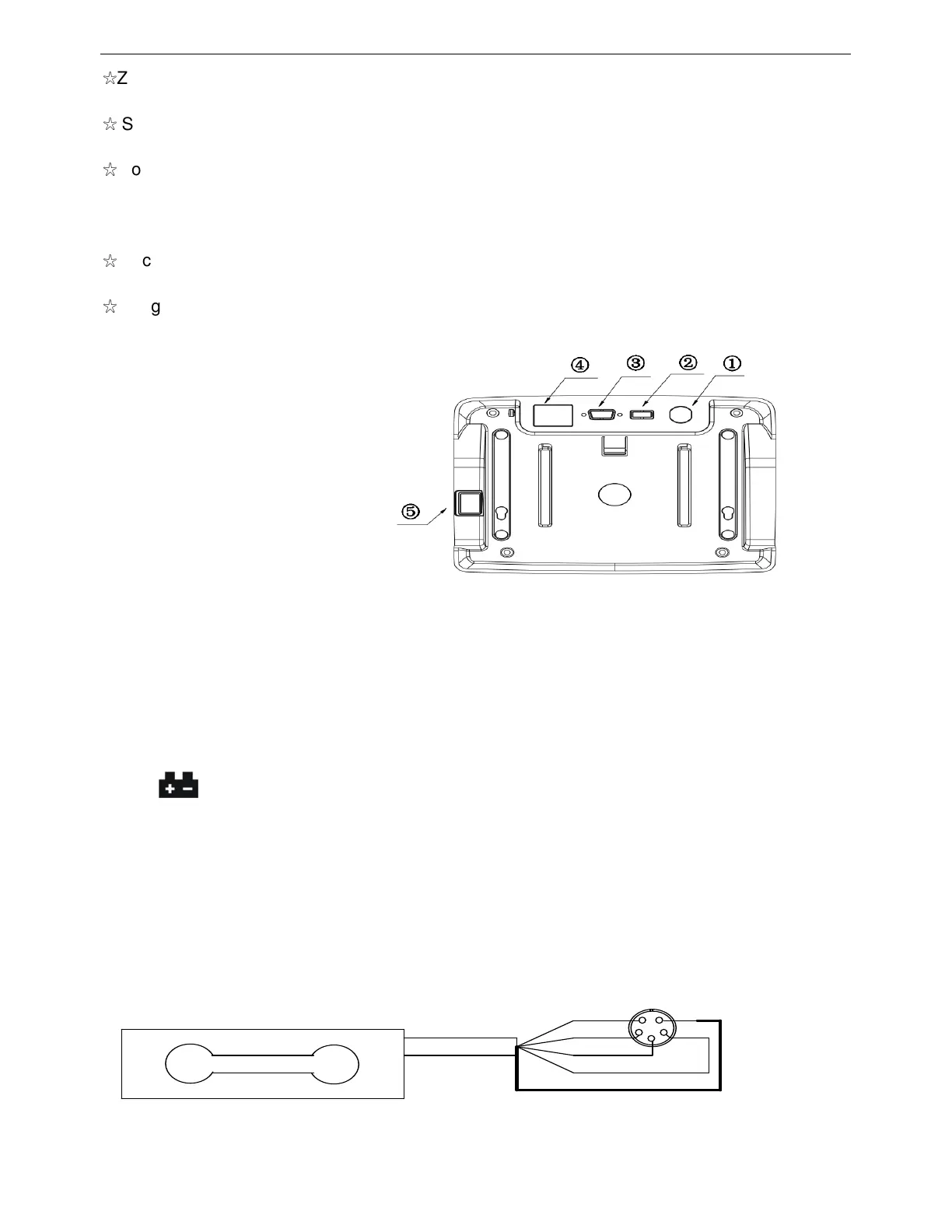

3-3 Rear Panel
1. Port for connecting load cell
2. USB Port
3. RS-232 Port
4. Power socket
5. Power ON/OFF switch
3-4 Power supply
1. Switching power supply (100V~240V)
2. (6V/4A) Internal Rechargeable Battery
Power Consumption
330mW with backlight (about 70 hours available)
Low battery warming
When “ ” appears in the upper left corner of the weight window, the battery power requires
recharging. The charge lamp turns green from red when the recharging is completed (which
takes about 8 hours). Disconnect the scale from power supply when it is fully charged.
4. Installation Instructions
4-1 Load cell connecting
