Jadever JWI-700D Series User Manual

JWI-700D/700S 6
CONN
1
2
3
4
5
E+
E-
S+
S-
LOAD-CELL
Shield
Low battery warning
When “ ” appears in the upper left corner of the weight window, the battery requires to be
changed
4. Installation

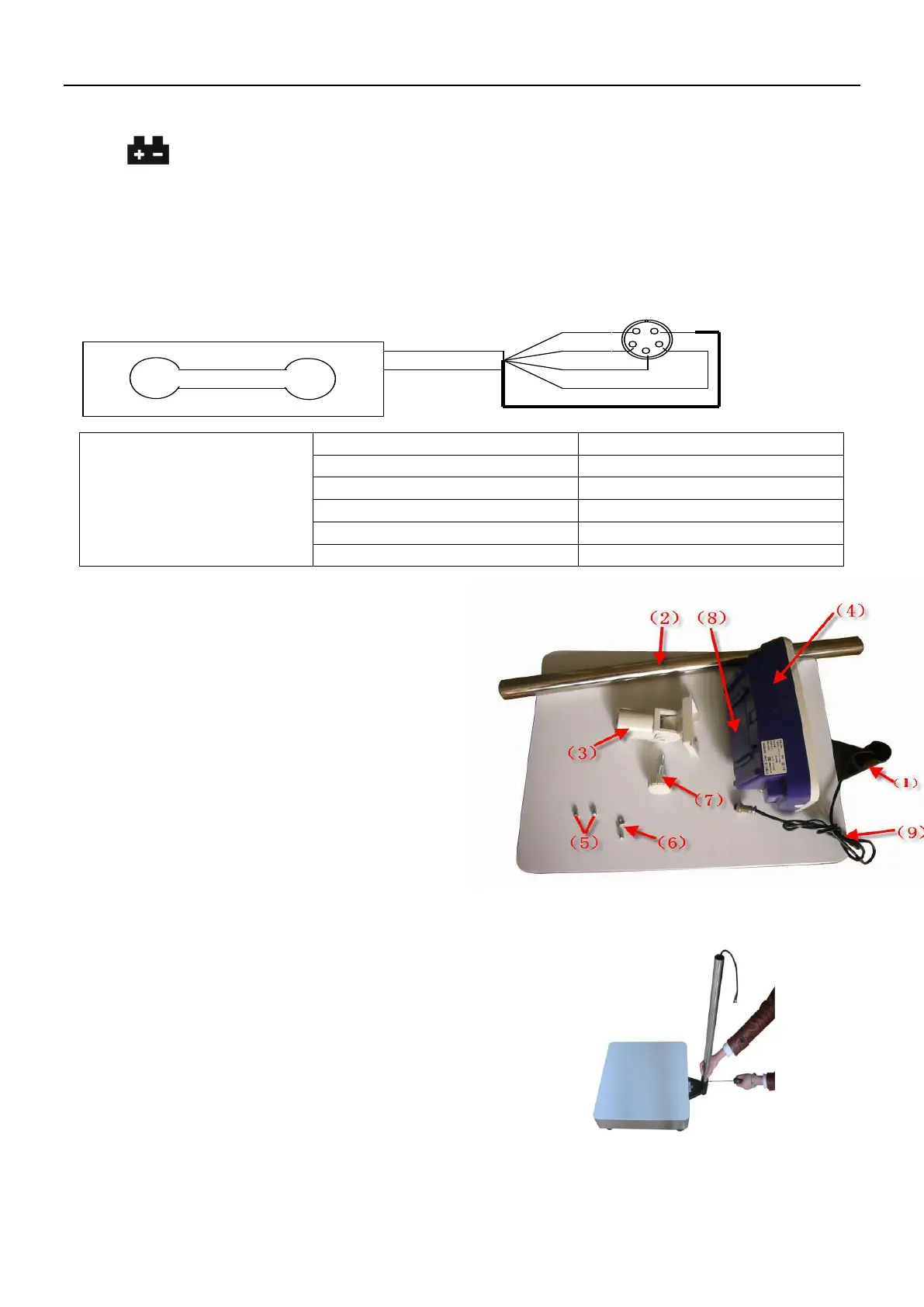

4-1 Load cell connection
4-2 Assembly Description of Upright Pole
(1）Rod seat
(2）Upright pole
(3）Racket
(4）Indicator
(5）Screw(for fixing the upright pole)
(6）Screw(for fixing bracket )
(7）Knob pole
(8）Bracket slot
(9）Load cell wire
Step 1: Thread the wire of the Load Cell (9) on the
rod seat (1) through the upright pole (2). Insert
The upright pole into the rod seat and then
Lock it with two screws (5).
Step 2: After threading the Load Cell wire
Through the bracket (3), attach the bracket to the
Upright pole and then lock it with the screw (6).
Note: if the load cell connector is too big to thread through the bracket, separate the bracket by
removing the Knob pole (7), see the following pictures.
LOAD CELL
CONNECTION
PIN
SIGNAL
1
E+
2
E-
3
S+
4
S-
5
SHIELD
