J&M TF2 - Main Wheel and Wing Wheel Assembly

26

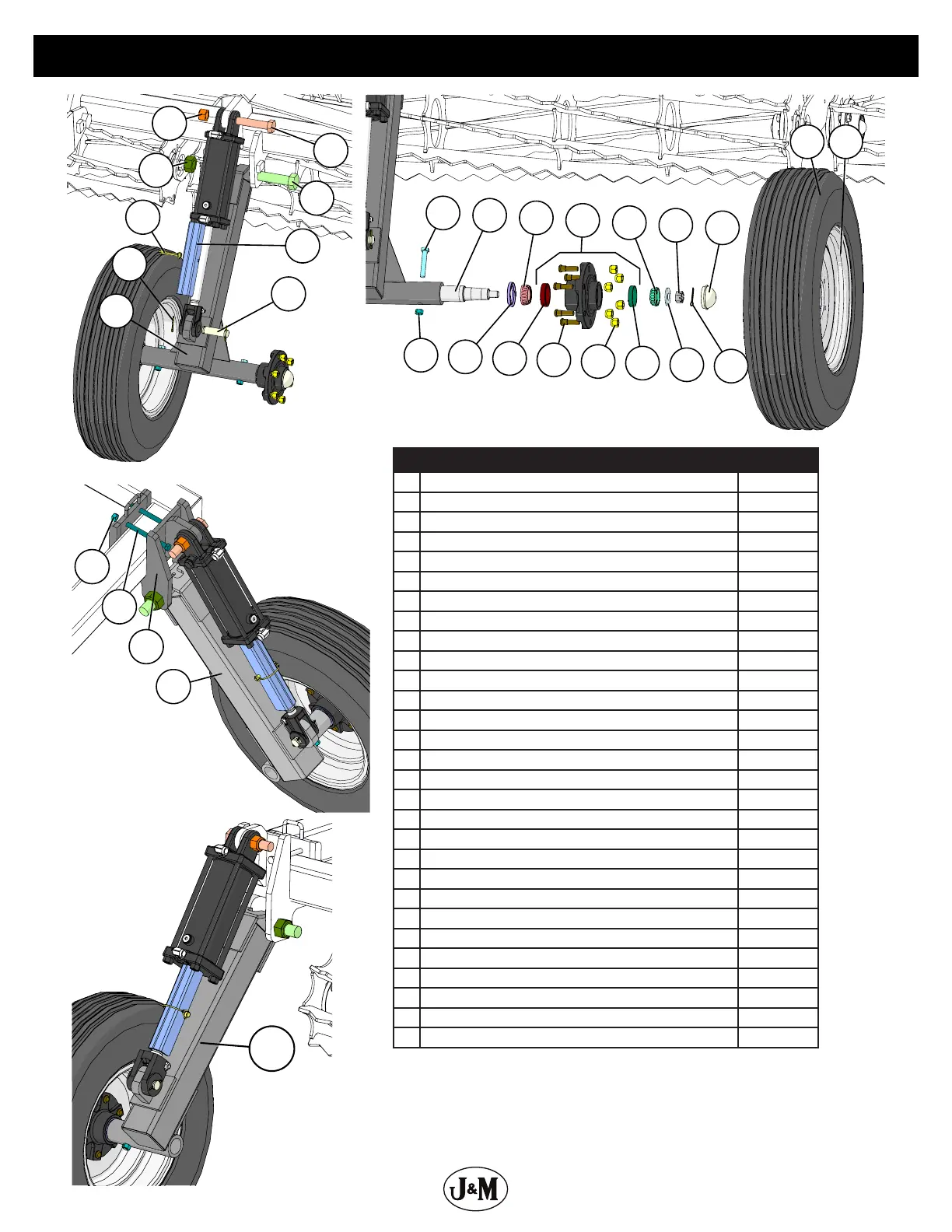

Main Wheel and Wing Wheel Assembly
Description Part No.
1 1”-8 Gr5 Z Nylon Locking Hex Nut JM0002161
2 1-1/4”-7 Gr2 Z Nylon Locking Hex Nut JM0026789
3 3/8” x 2-1/2” Wire Lock Pin (38212WLP) JM0014929
4 5/32” x 1-1/2” Cotter Pin JM0014348
5 TF212, TF215 Wheel Arm Weldment JM0026696
6 1”-8 x 5” Gr5 Z Hex Bolt JM0016688
7 1-1/4”-7 x 10” Gr5 Z Hex Bolt JM0076332
8 Wheel Cylinder Lock JM0015237
9 1” x 3-1/2” Clevis Pin with Cotter Pins JM0026784
10 1/2”-13 x 3” Gr5 Z Hex Bolt JM0016678
11 1-3/4” Diameter Spindle (SS-134SC) JM0026569
12 Large Inner Bearing for 6-8 Ton (LM48548) (104579) JM0019563
13 Hub with Races, Studs and Nuts, 7-8 Ton (105218) JM0026566
14 Small Outer Cone for 6-10 Ton (LM67048) JM0019564
15 3/4”-16 Gr2 Castle Hex Nut JM0002130
16 Dust Cap, 6-10 Ton (103969) JM0026567
17 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
18 Grease Seal, 6-8 Ton (103953) JM0026572
19 Large Cup for 6-8 Ton (LM48510) (104580) JM0026565
20 Wheel Stud for Hub, 6-8 Ton (1/2”-20 x 1-7/8”) (4187) JM0019559
21 1/2”-20 Lug Nut, 6-8 Ton (5552) JM0003062
22 Small Cup for 6-10 Ton (LM67010) (200500) JM0026564
23 3/4” USS Hardened YZ Flat Washer JM0058394
24 11L-15 Tire - 10 ply JM0027743
25 Wheel Rim, 6 Hole 15” x 8” (WR-158) JM0026801
26 1/2”-13 x 6” G5 Z Hex Bolt JM0016679
27 TF Wing Wheel Mount Weldment JM0026429
28 Wheel Arm Weldment - Left (TF212-TF215) JM0026713
29 Wheel Arm Weldment - Right (TF212, TF215) JM0026714
