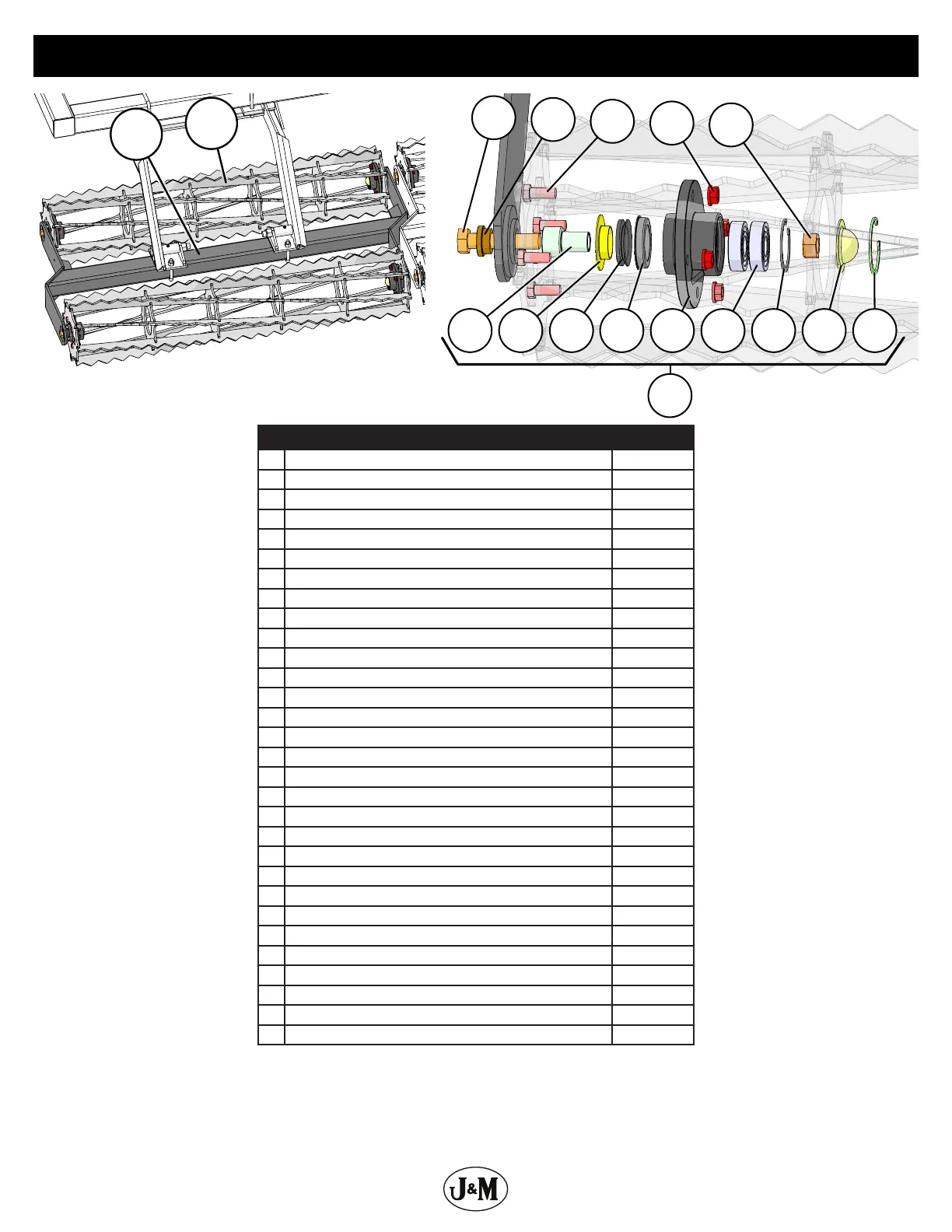

J&M TF2 - Rolling Basket

28
Description Part No.
1 3-1/2’ Crazy Leg Weldment 40” Wide (2:1 Twist) JM0001766
1 4’ Crazy Leg Weldment 46” Wide (2:1 Twist) JM0001767
1 5’ Crazy Leg Weldment 58” Wide (2:1 Twist) JM0001768
1 5-1/2’ Crazy Leg Weldment 64” Wide (2:1 Twist) JM0001769
1 6’ Crazy Leg Weldment 70” Wide (2:1 Twist) JM0001770
2 3-1/2’ Basket Weldment 16” Diameter 37-5/8” Length JM0005734
2 4’ Basket Weldment 16” Diameter 43-9/16” Length JM0005740
2 5’ Basket Weldment 16” Diameter 55-5/8” Length JM0005742
2 5-1/2’ Basket Weldment 16”Diameter 61-5/8” Length JM0005745
2 6’ Basket Weldment 16” Diameter 67-5/8” Length JM0005747
2 3-1/2’ Basket Weldment 13” Diameter 37-5/8” Length JM0026962
2 4’ Basket Weldment 13” Diameter 43-9/16” Length JM0005713
2 5’ Basket Weldment 13” Diameter 55-5/8” Length JM0003252
2 5-1/2’ Basket Weldment 13” Diameter 61-5/8” Length JM0002586
2 6’ Basket Weldment 13” Diameter 67-5/8” Length JM0003259
3 3/4”-16 x 3-3/4” Gr8 YZ Fine Thread Hex Bolt JM0076333
4 Flange Washer (1488 Hub) JM0041325
5 1/2”-13 x 1-1/4” Gr5 Z Hex Bolt JM0001513
6 1/2”-13 Gr5 Z SF Hex Nut JM0002153
7 3/4”-16 Gr8 YZ Hex Nut JM0041245
8 Bearing Sleeve (1488 Hub) (A-5645) JM0041321
9 Grass Wrap Guard (1488 Hub) (A-5573) JM0041324
10 Seal (1488 Hub) (A-907-B1-434) JM0041323
11 Counterface (1488 Hub) (A-5623) JM0041322
12 1488 Hub (Only) (A-5645) JM0041320
13 6305 Bearing (1488 Hub) JM0041319
14 Inner Retaining Ring for 1488 Hub (A-4436) JM0041318
15 Dust Cap with Seal for 1488 Hub (A-5579) JM0041317
16 Outer Retaining Ring (1488 Hub) (A-5745) JM0041316
17 1488 Hub Assembly (GBGI) JM0045622
3
4
8 9 10 11 13 14 15
6
1612
17
5
7
2
1
Rolling Basket
