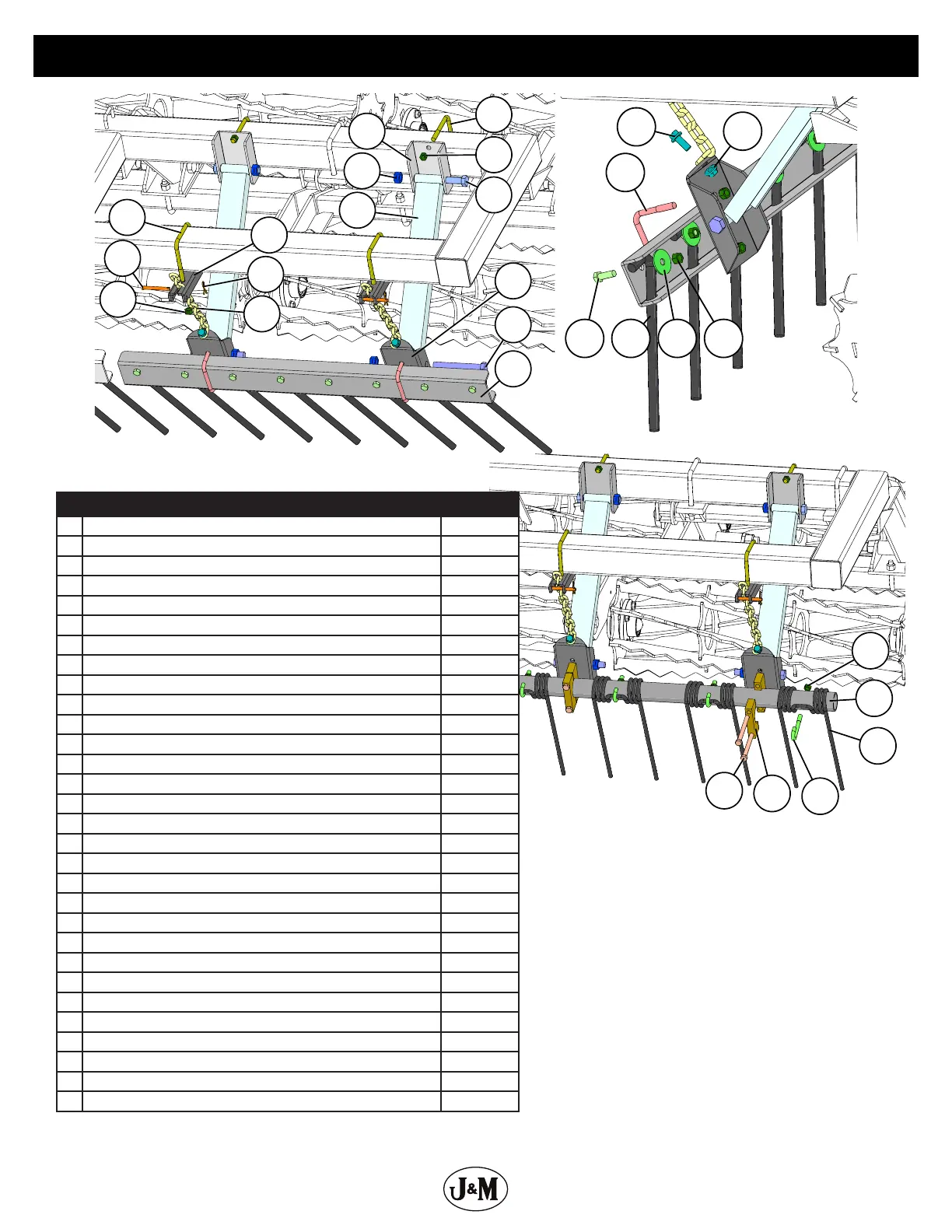

Coil Tine Pipe and Round Bar Bracket
1
8
7
9
10
3
6
3
4
2
12
11
1
13
5
15
14
17 18 19 3
16
21
3
23
20
22
24
Description Part No.
1 1/2”-13 x 4-1/8” x 5” Square U-Bolt JM0010001
2 3/8” x 3” Usable Length Clevis Pin JM0010003
3 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511
4 2” x 8-1/4” Chain Plate (2814CP) JM0015254
5 1/8” x 3/4” Grip Cotter Pin Z (CP1834Z) JM0010005
6 5/16” Z Yellow Chain 11 Link (16” Long) JM0020360
7 2-1/2” x 4” x 6” Upper Harrow Mounting Bracket (21246MB) JM0015241
8 3/4”-10 Gr5 Z Centerlock Hex Nut JM0002147
9 3” x 21” Harrow Arm (321HA) JM0017558
10 3/4”-10 x 5” Gr8 Z Hex Bolt JM0020318
11 4” x 8” Pivot Bracket (48PB) JM0015242
12 3/4”-10 x 6” Gr5 Z Hex Bolt JM0016683
13 4’ Harrow Tine Channel JM0015227
13 5’ Harrow Tine Channel JM0015228
13 6’ Harrow Tine Channel JM0015229
13 7’ Harrow Tine Channel JM0015230
14 7/16”-14 x 1-1/2” Gr5 Z SF Hex Bolt JM0076336
15 1/2”-13 x 4-1/8” x 4” Square U-Bolt (1244UB) JM0026990
16 7/16”-14 Gr5 Z SF Hex Nut JM0076337
17 1/2”-13 x 1-1/2” Gr5 Z Hex Bolt JM0002100
18 3/4” x 15” Harrow Tine Bar (Spike) JM0026972
19 1/2” ID x 2-1/4” OD Flat Washer - 3/16” Thick JM0059670
20 3’8” Coil Tine Pipe (CTP-38) JM0026999
20 4’8” Coil Tine Pipe (CTP-48) JM0026996
20 5’8” Coil Tine Pipe (CTP-58) JM0010011
20 6’8” Coil Tine Pipe (CPT-68) JM0026998
21 Coil Tine Spring (CTS-1) JM0020358
22 1/2”-13 x 4-1/4” Gr5 Z J-Bolt JM0020373
23 TF - Harrow Squeeze Block JM0027006
24 1/2”-13 x 5” Gr5 Z Hex Bolt JM0001594
