- 14 -

JW-H67M-USB3 User's Manual

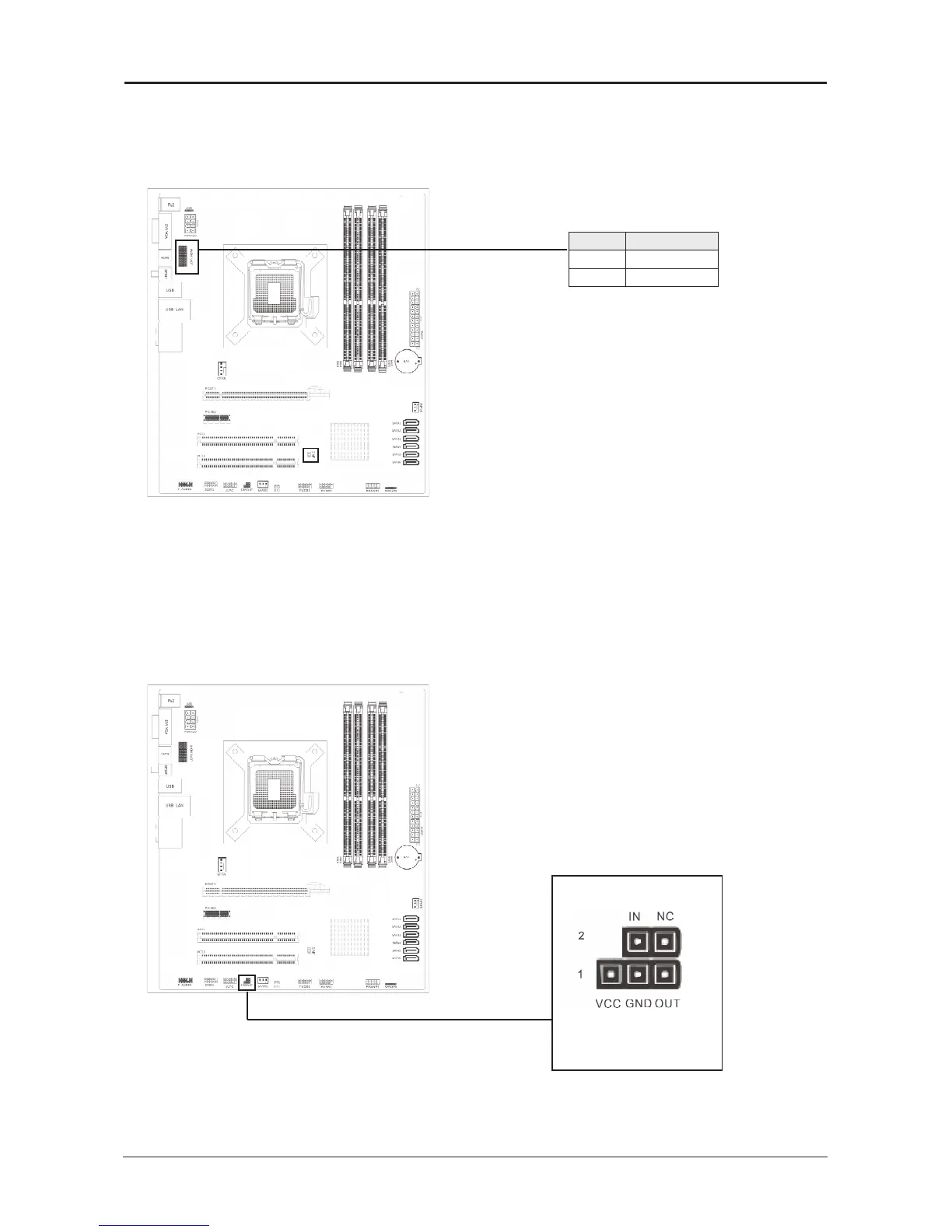

3.9 S/PDIF Output Connection Header (Optional)

S/PDIF (Sony/Philips Digital Interface) is a standard audio transfer le format. It is usually

found on digital audio equipment such as a DAT (Digital Audio Tape) machine or audio

processing device. It allows the transfer of audio from one le to another without the

conversion to and from an analog format, which could degrade the signal quality.

3.8 JDVI_HDMI jumper and JME jumper

While JVDI_HDMI jumper be shorted #pin 1-2, it will auto detect HDMI or DVI device, but if

some DVI or HDMI device cann't be detected, please be shorted #pin 2-3.

While you want to refresh you BIOS,you must be shorted #pin 1-2.

Pin No. Denition

Pin1-2 DVI

Pin2-3 HDMI

JDVI_HDMI Jumper
