Pin Pin Assignment Pin Pin Assignment
1 VCC 2 VCC
3 Data 0- 4 Data 0-
5 Data 0+ 6 Data 0+
7 Ground 8 Ground
9 No Pin 10 NC
HD Audio:
Pin No. Denition
1 PORT1L
2 AGND
3 PORT1R
4 NC
5 PORT2R
6 SENSE1
7 SENSE
8 No Pin
9 PORT2L
10 SENSE2

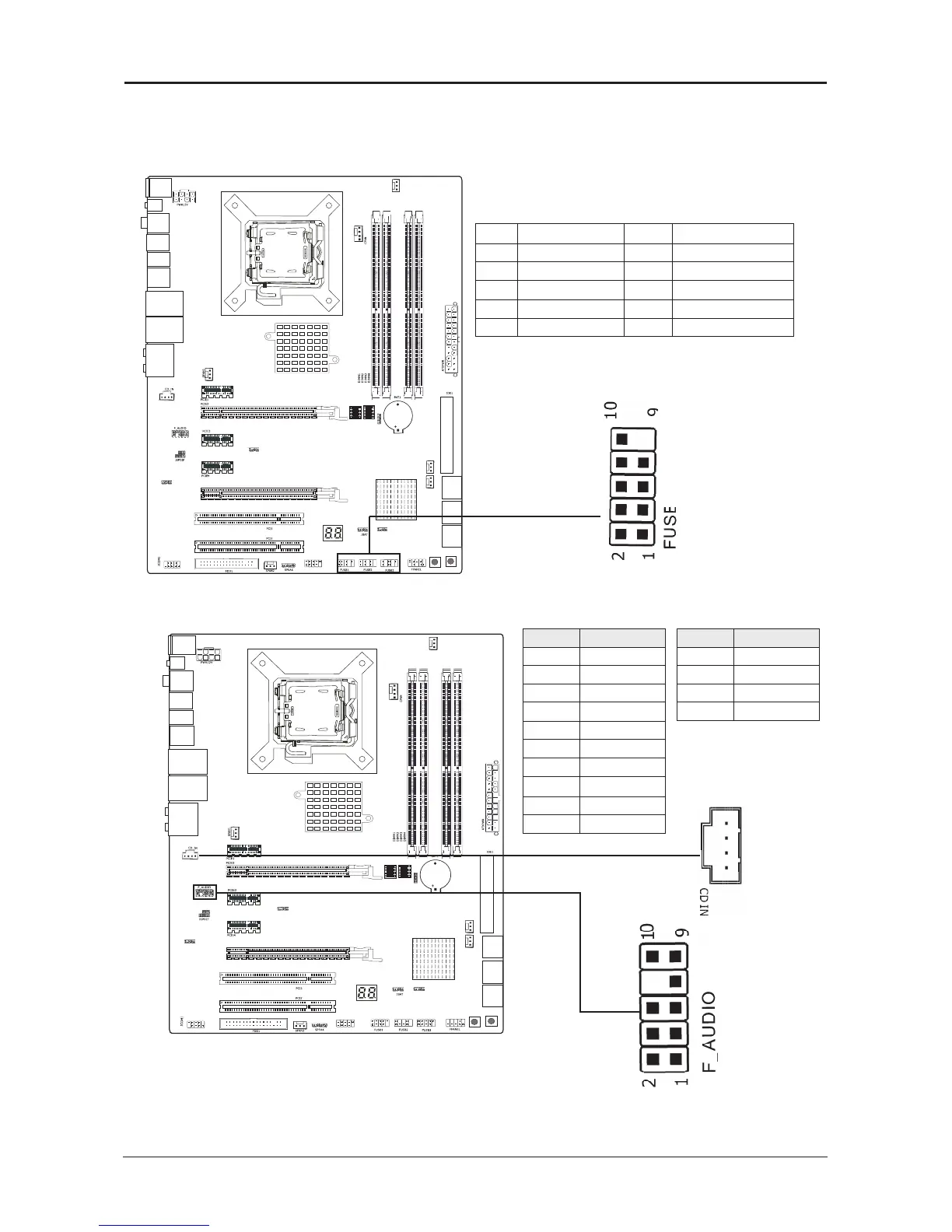

3.6 Additional USB Port Headers
3.7 Front Panel Audio & Internal Audio Connectors
PWR_BT RST_BT
LED1
PCIE5
JLAN
JLAN1
JBIOSLC
SATA1
USB
SATA2
SATA3
PS/2 Keyboard
USB
CMOS_BT
SPDIF_IN
1394
DUAL
eSATA
SPDIF_OUT
LAN
USB
LAN
USB
AUDIO_1
SAFE_BIOS
USER_BIOS
SFAN3
SFAN5
SFAN4
JUSB
J1394
1
3 1
3
1
1
3
3
3
1
PWR_BT RST_BT
LED1
PCIE5
JLAN
JLAN1
JBIOSLC
SATA1
USB
SATA2
SATA3
PS/2 Keyboard
USB
CMOS_BT
SPDIF_IN
1394
DUAL
eSATA
SPDIF_OUT
LAN
USB
LAN
USB
AUDIO_1
SAFE_BIOS
USER_BIOS
SFAN3
SFAN5
SFAN4
JUSB
J1394
1
3 1
3
1
1
3
3
3
1
FUSB1/FUSB2/FUSB3
Pin No. Denition
1 CD-L
2 GND
3 GND
4 CD-R
CD-IN Connector: Connect CD-ROM or DVD-ROM audio out to the connector.
The headers conform to USB 2.0/1.1 specication. Each USB header can provide two USB ports
via an optional USB bracket.
