Jandy AquaLink RS series User Manual

Page 11
S1
S2
654321 10987654321 4321
4321
RESET
SERVICE
TIME OUT
FIL
TER PUM
P
AUX
1
AUX
2
A
UX 3
A
UX
4
AUX 5
AUX
6
AUX 7
RS6 & RS8 ONLY
RS8 ONLY
HEATER
SOLAR
POOL MODE
SPA MODE
SPA DRAIN
SPA FILL
AUTO
Red
Wire
Green
Wire

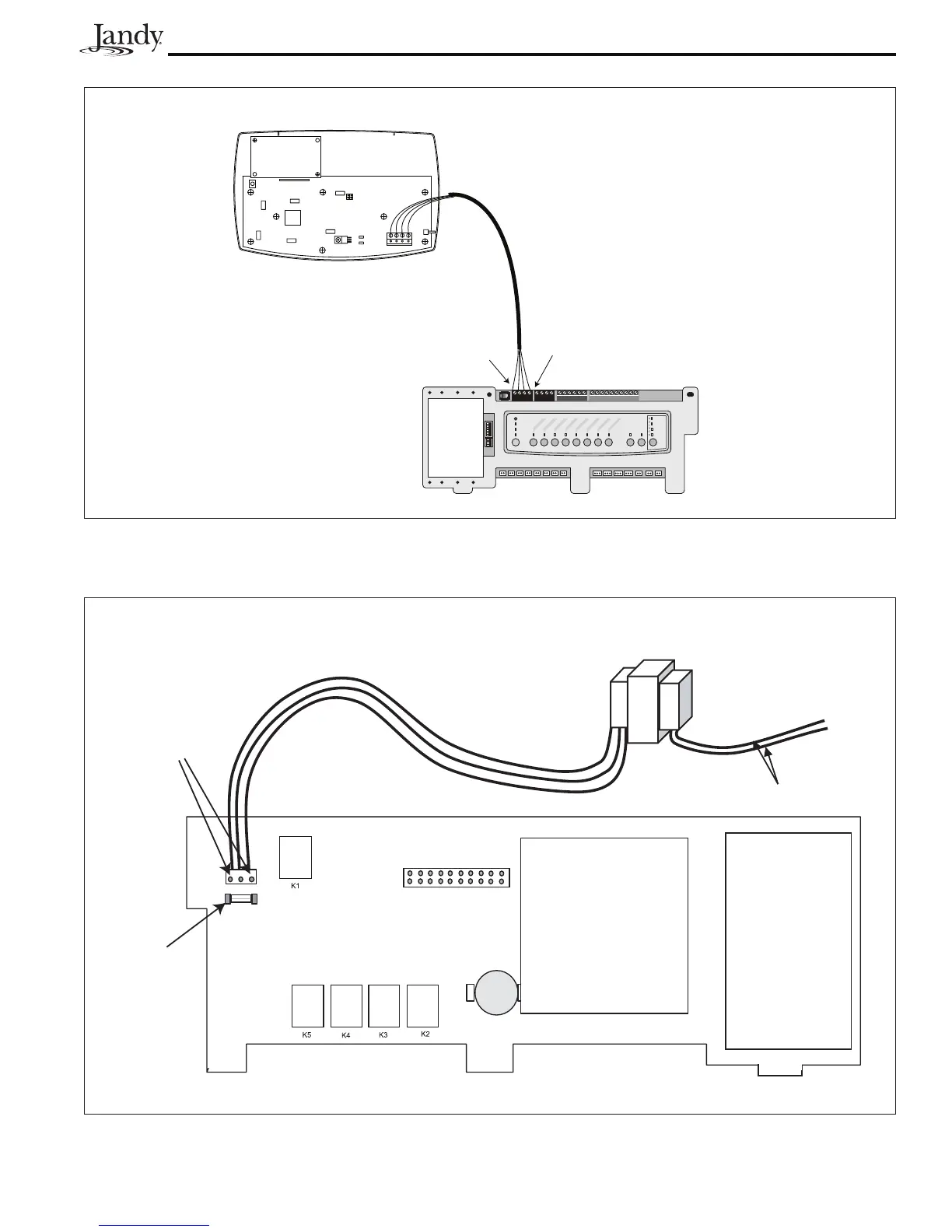

Figure 5. Checking Voltage at Red Terminal Bar
Figure 6. Transformer Primary and Secondary Voltages
Check for broken or loose
wires on terminals 1 and 4
(red and green) of the red
4-pin terminal bar.
Fuse
3.15 amp
24 – 28 VAC
Yellow wires
105 – 130 VAC
Transformer
Secondary
Primary

Jandy AquaLink RS series Specifications

General

Weatherproof	Yes
Automation	Yes
Expandability	Yes
Smartphone Control	Yes
Power Source	120V AC
Communication	RS-485
Humidity Range	0% to 95% non-condensing
Maximum Load Capacity	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Compatible Devices	Jandy pumps, filters, heaters, lights, valves
Wireless Control	Optional (with iAquaLink)
