Page 55
Jandy
®
JXi
™
Gas-Fired Pool and Spa Heater | Installation & Operation Manual
Section 13. Appendix A. ASME
Header
Please use the information below for the following
ASME heater Models, JXi400NC, JXi400NS,
JXi400PC, JXi400PS, JXi260NC, JXi260NS,
JXi260PC and JXi260PS. The corresponding
sections from the manual are cross referenced with
page numbers at the beginning of each section.

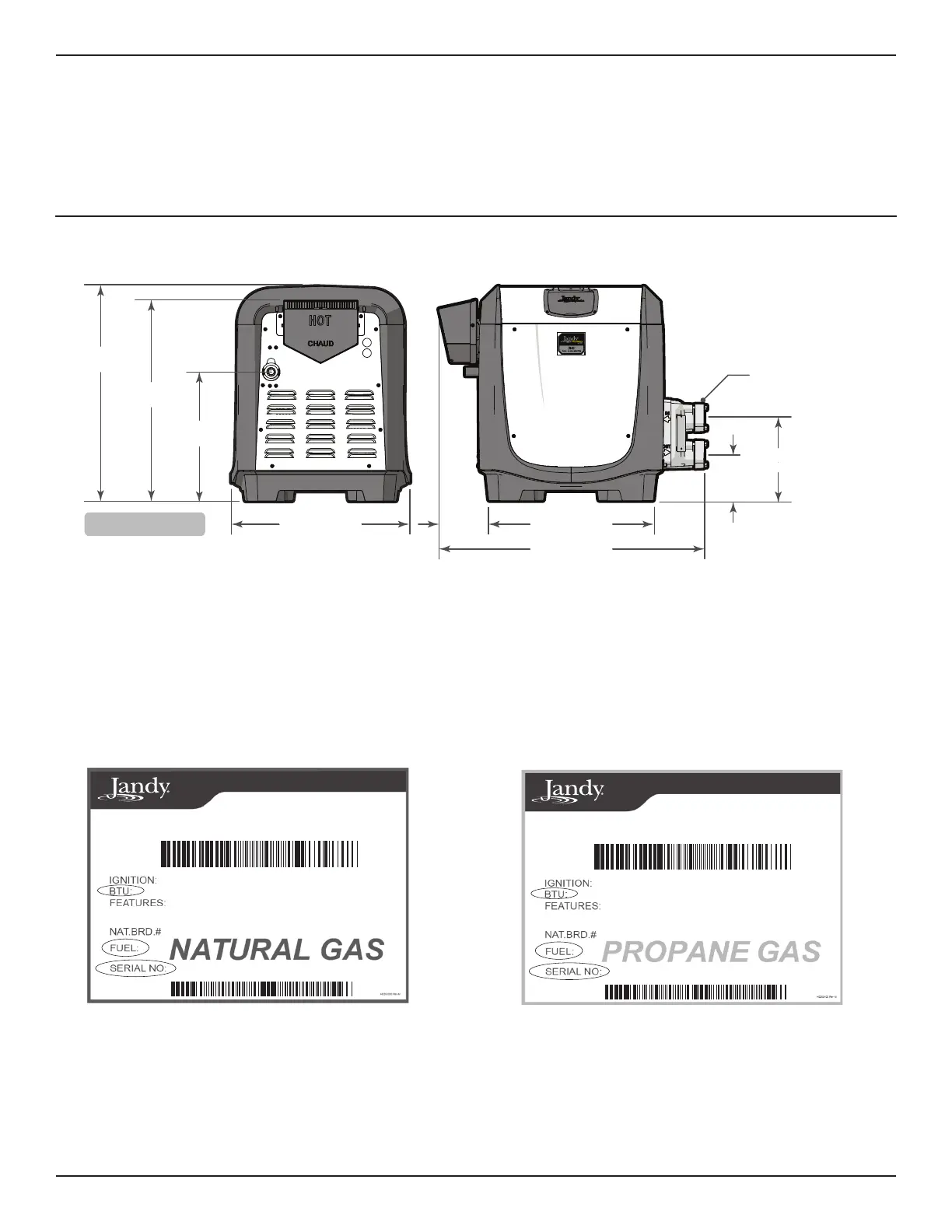

13.1 Dimensions (from “Section 1.6 Dimensions”
on Page 6)
22.1 in (56 cm)
24.9 in
(63 cm)
16 in
(40.6 cm)
21.6 in (55 cm)
5.1 in
(13 cm)
5.5 in
(14 cm)
10.0 in
(26 cm)
5.5 in
(14 cm)
10.0 in
(26 cm)
32.9 in (83 cm)
26.5 in
(67 cm)
22.1 in (56 cm)
24.9 in
(63 cm)
16 in
(40.6 cm)
21.6 in (55 cm)
32.9 in (83 cm)
26.5 in
(67 cm)
Inlet
Dimensions are identical
for all heater models
Figure 26. General Dimensions
13.2 Package Contents (from “Section 2.1
Package Contents” on Page 8)
Before completely unpacking the unit please inspect
carton for damage. In addition, please check the
carton label to ensure that you have the correct fuel
type and BTU rating for your application.
Included with this heater is a 75 psi pressure relief
valve that can be used as an option. Instructions for
the pressure relief valve installation are shown below
in section 5.5.1
JXI400NC
DIRECT IGNITION
XXXXXXXXXXXXXXXXXX
399,000
JXI, US
Zodiac Pool Systems LLC
2882 Whiptail Loop #100, Carlsbad CA 92010
CSA Certified for installations up to 4,500 FT (1,372m), BTU output
is reduced about 4% per 1000 ft (305 m) over 4,500 ft (1,372m). In
general efficiency is not affected by altitude.
ALTITUDE:
JXI400PC
DIRECT IGNITION
XXXXXXXXXXXXXXXXXX
399,000
JXI, US
Zodiac Pool Systems LLC
2882 Whiptail Loop #100, Carlsbad CA 92010
CSA Certified for installations up to 4,500 FT (1,372m), BTU output
is reduced about 4% per 1000 ft (305 m) over 4,500 ft (1,372m). In
general efficiency is not affected by altitude.
ALTITUDE:
