Jandy
®
JXi
™
Gas-Fired Pool and Spa Heater | Installation & Operation Manual

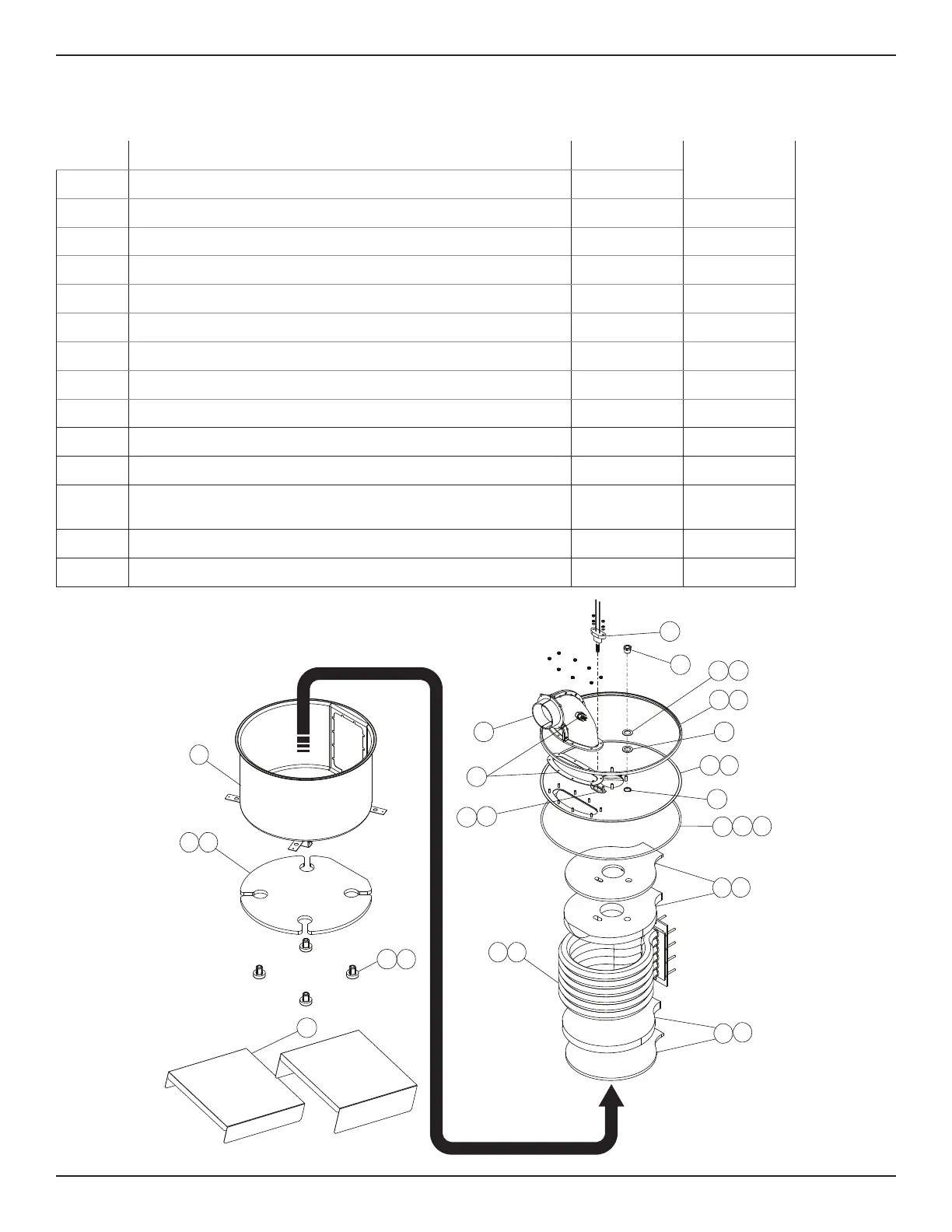

13.4.1 Combustion Chamber Assembly
(From Section “12.3.1 Combustion Chamber Assembly” on page 51)
Key No Description model 260 model 400
1 Exhaust Elbow Assembly Kit R0590200 R0590200
2 Band Clamp Kit R0590400 R0590400
3 Refractory Kit, Internal R0590500 R0590500
4 Combustion Chamber Shelf (set of 2: Models 200, 260) R0590700 N/A
5 Combustion Chamber Lid Kit R0590800 R0590800
6 Gasket Kit R0590900 R0590900
7 Sight Glass Kit R0305400 R0305400
8 Ignitor Kit R0457502 R0457502
9 Insulation Kit, External R0591000 R0591000
10 Isolator Kit (Thermal) R0593200 R0593200
11 Combustion Chamber Assembly (Includes Header) R0810203 R0810205
11a
Combustion Chamber Assembly, ASME CuNi versions (Includes
Header)
R0961000
R0961001
12 Heat Exchanger Kit R0828700 R0828701
12a Heat Exchanger Kit, ASME CuNi versions R0961100 R0961101
3
10
1
8
2
5
7
2
6
9
3
260
200
4
6
8
6
7
7
6
7
1211
11
11
11
11
11
11
11
11
