Model LJ Pool and Spa Heater
Page 5

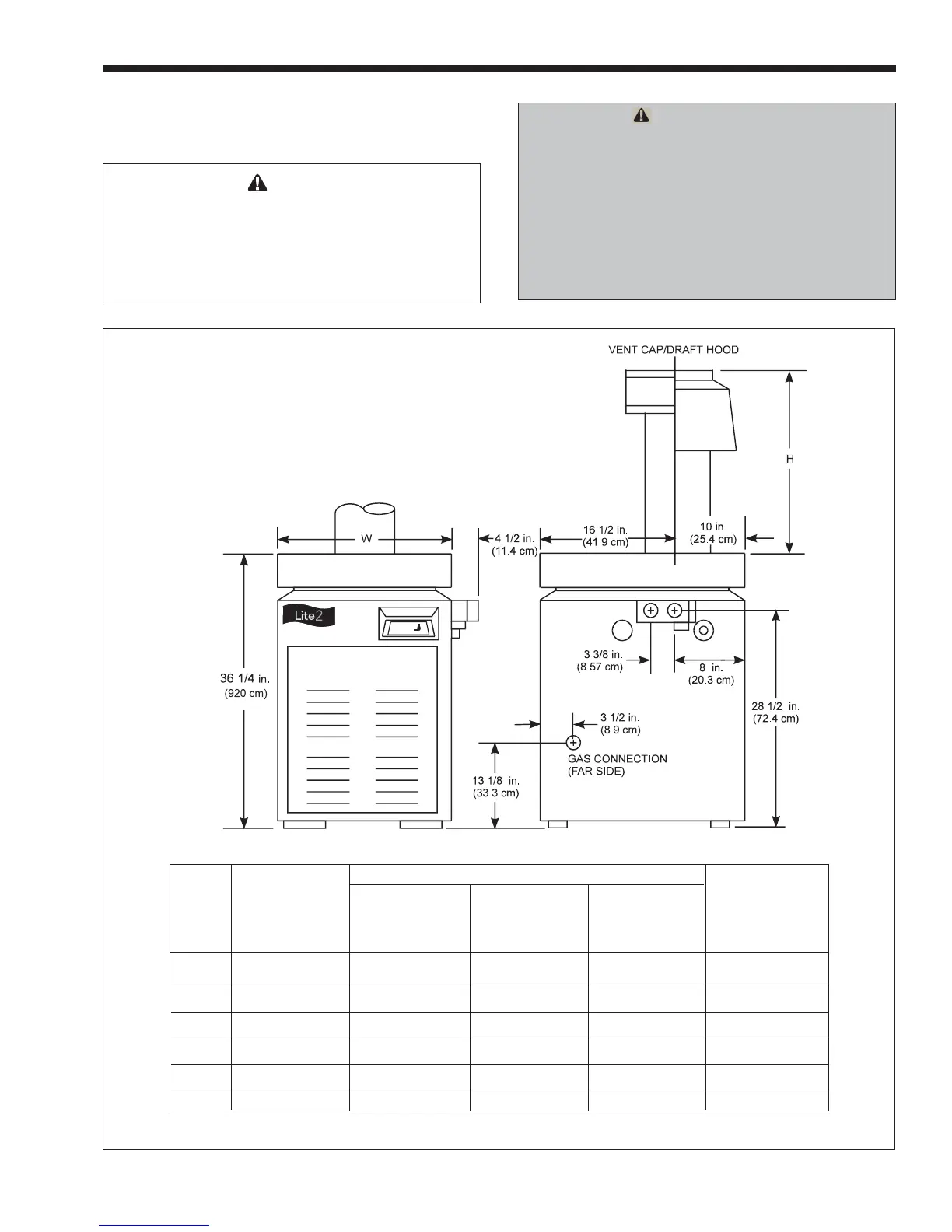

Figure 1. General Configuration
* Ratings shown are for both natural and propane gas.
Venting Dimensions
Model Firing Rate / Hr.*
Heater U.S. Indoor or
Width
Vent U.S. Outdoor
CAN Outdoor (1,000's)
Dim "W"
Diameter Dim "H"
Shelter Dim "H"
in (cm) in (cm) in (cm) in (cm) BTU (kcal)
LJ125 15 (38) 5 (13) 17 3/8 (44) 16 1/4 (41) 125 (32)
LJ175 18 (46) 6 (15) 18 (46) 24 1/8 (61) 175 (44)
LJ250 22 1/2 (57) 7 (18) 18 1/4 (47) 25 1/4 (64) 250 (63)
LJ325 26 3/4 (68) 8 (20) 18 7/8 (48) 26 1/2 (67) 325 (82)
LJ400 31 3/4 (81) 9 (23) 21 1/2 (55) 27 1/2 (70) 400 (101)
2.3 Location Requirements
2.3.1 Introduction
Caution
When pool equipment is located below the pool
surface, a leak from any component can cause
large scale water loss or flooding. Jandy Pool
Products, Inc. cannot be responsible for such
water loss or flooding or resulting damage.
ATTENTION
Lorsque l’équipement d’une piscine est situé
sous la surface de l’eau, une fuite provenant de
n’importe quel élément peut causer une perte
d’eau importante ou une inondation. Jandy Pool
Products, Inc. n’est pas responsable des
pertes d’eau, des inondations ou des avaries
causées par une installation ou un entretien
inadéquat.
