INSTRUCTIONS
1 Stand, base.
2 Seat.
3 Headrest.
4 Headrest adjustment ring.
5 Integrated 5-point seat belt.
5a Buckle.
5b Strap to tighten the integrated seat belt.
5c Button to loosen the integrated seat belt.
5d Shoulder strap.
5e Shoulder strap pad.
5f Crotch strap.
6 ISOx anchors.
7 ISOx unlocking buttons.
8 ISOx status indicator.
9 ISOx length adjustment handle.
10 Reclining adjustment lever.
11 Instruction compartment.
12 Anti-rotation leg.
12a Foot.
12b Height adjuster.
12c Correct leg support indicator.
13 Seat rotation release lever.

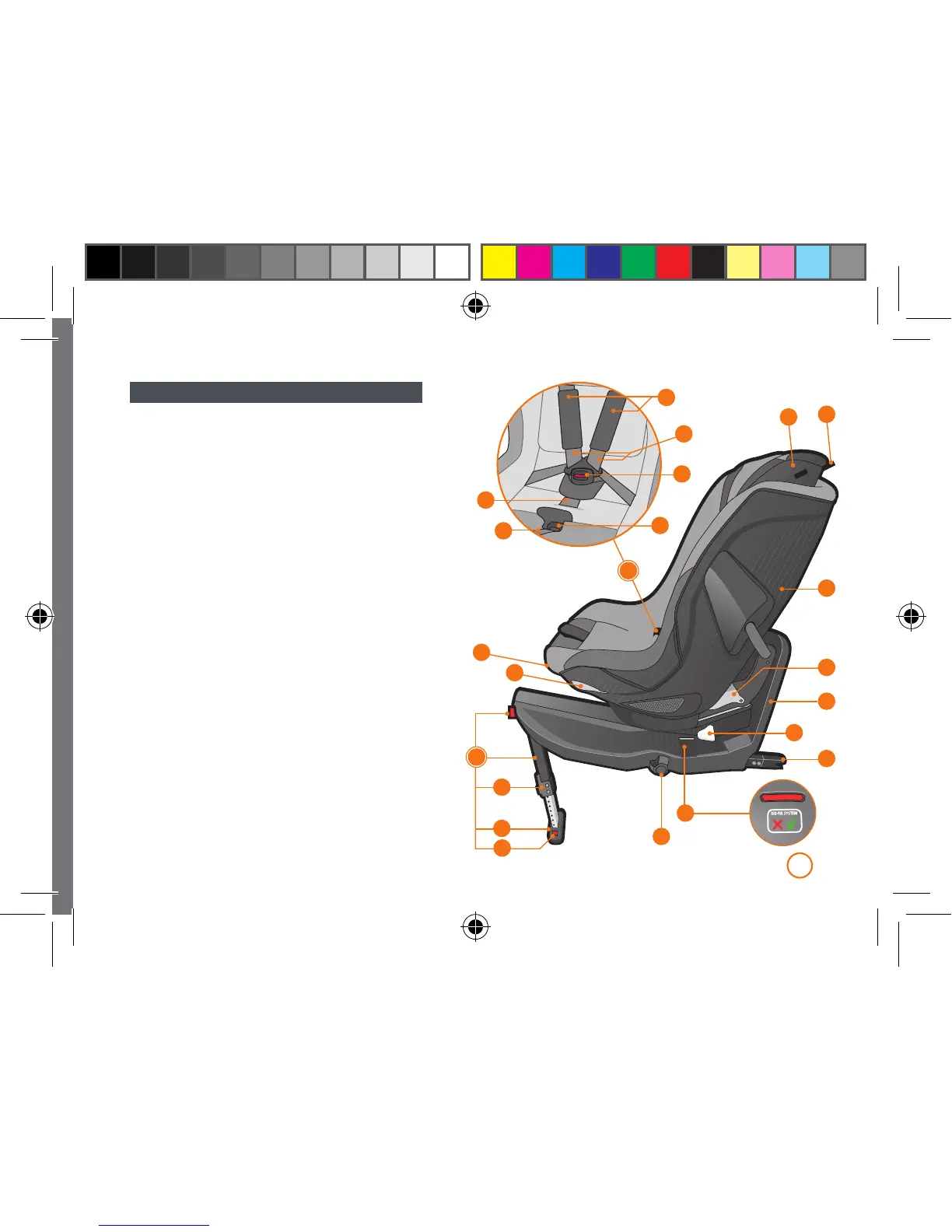

A. PART LIST
3
1
11
9
13
6
7
2
c
a
b
IMG_0744
8
4
a
b
f
e
d
c
10
5
12
3
