janitza Prophi 6R User Manual

Prophi
®
6R
4
Fig. 2 Rear view
The controller is supplied as standard for an operating voltage of 110...230 VAC (+-15%),
a measuring voltage of 30...525 VAC (L-N) or (L-L), 50/60Hz and a measuring current of
5A or 1A. A voltage converter is required for different measuring voltages.
Caution!
Voltages which exceed the specified voltage range can damage the
device !
- 4 -

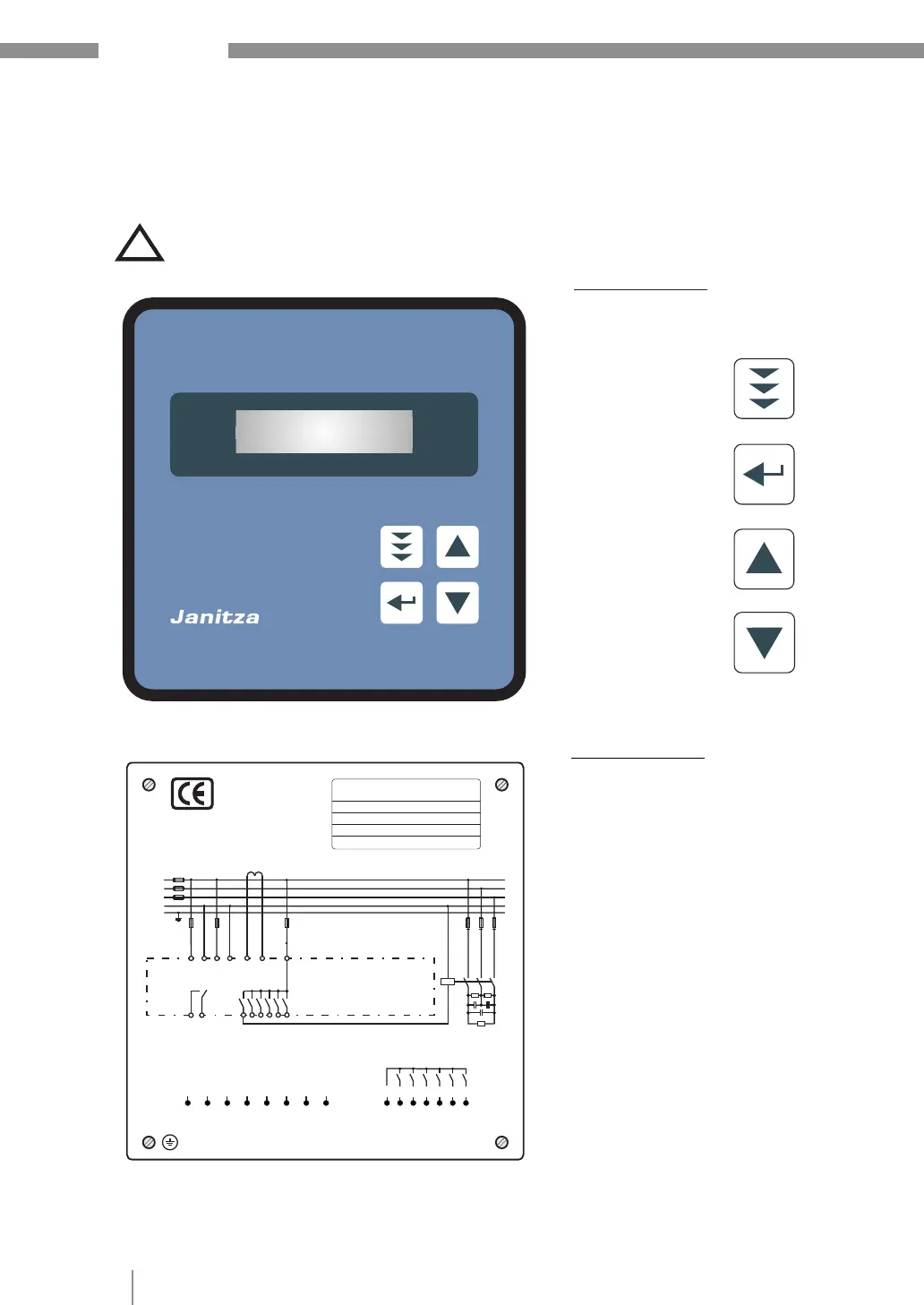

Fig.1 Front view
Operating mode
- Automatic
- Programming
- Manual operation
- Service
- Expert mode
Enter / OK
Confirm and
store values
Increase
selected
parameter
Reduce
selected
parameter
!
1 2 3 4 5 6
Power Factor Controller
Blindleistungsregler
Auto
Program
Manual
Service
Enter
OK
Prophi
®
Blindleistungsregler
Power factor regulator
Type: Prophi 6R
Meas.voltage: 30-525VAC (L-N) /(L-L)
Power supply: 110 - 230VAC 50/60Hz
Ser.No.: 0815 / 2019
L1 ( R)
L2 ( S)
L3 ( T)
me as .curr e nt
Im ( 5 A /1A )
1. ca p aci t or-
br a n ch
su p p ly-
vo l t age
Ub
me a s .
vo l t age
Um
k l
P1
1 2 3 4 5 6
capa c i t or-
cont a c t or 1-6
ala r m-
re l a y
Po wer Fa ctor C o n tro l l er
Pr o phi 6R
T 6, 3A
T 2A T 2A
PE
K1
a b
Ub Um Im
L N L N k l
(L) (N) (L1)
L3
(N)
L2
k l a b
P1 K1 K2 K3 K4 K5 K6
supply-
voltage
110...230V
meas-
voltage
meas.
current
alarm-
relay
