Janome 2030DC - Feed Dog Height

14
The highest position of the feed dog should be between 0.80 and 0.90 mm from the surface of the needle plate.
1. Lower the presser foot and turn the power switch on.
2. Turn the handwheel toward you to set the feed dog at the highest position.
3. Remove the free-arm cover.
4. Loosen the setscrew (A) q and nut w.
5. Adjust the feed dog height by turning the adjusting screw e. The highest position of the feed dog should be
between 0.80 and 0.90 from the surface of the needle plate.
6. Tighten the nut w and setscrew (A) q.
7. Attach the free-arm cover.

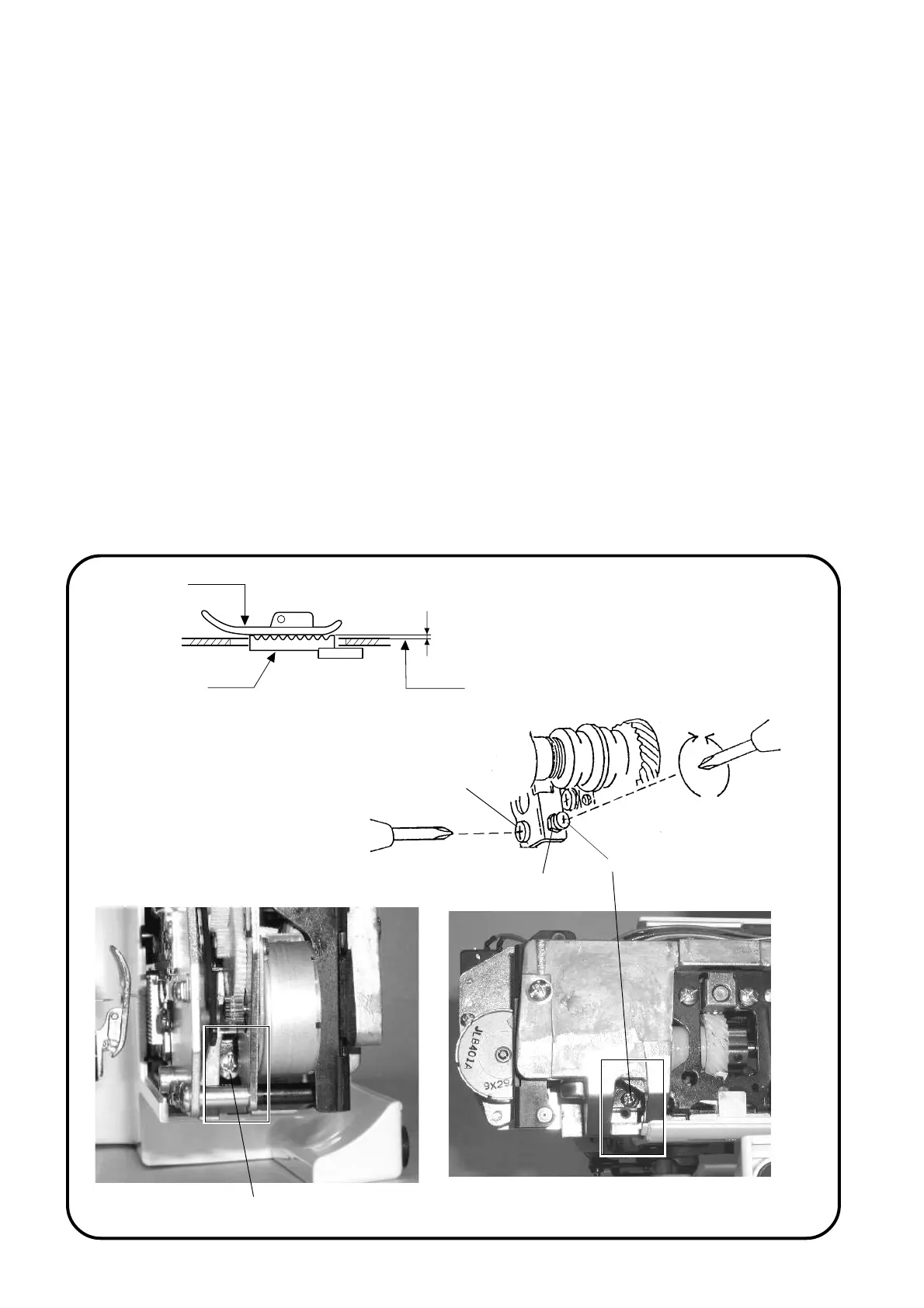

Feed dog height
Mechanical Adjustment
AB
e
w
q
q
Presser foot
Feed dog
0.80 – 0.90mm
Surface of the needle plate
