SWITCHING REGULATOR UNIT
TO REMOVE:
1. Remove the front cover and the rear cover. (See pages 6 and 7.)
2. Remove the setscrews q (3 pcs.) and the switching regulator.
3. Remove the setscrews w (4 pcs.).
TO ATTACH:
4. Follow the above procedures in reverse.
REPLACING THE ELECTRONIC COMPONENTS

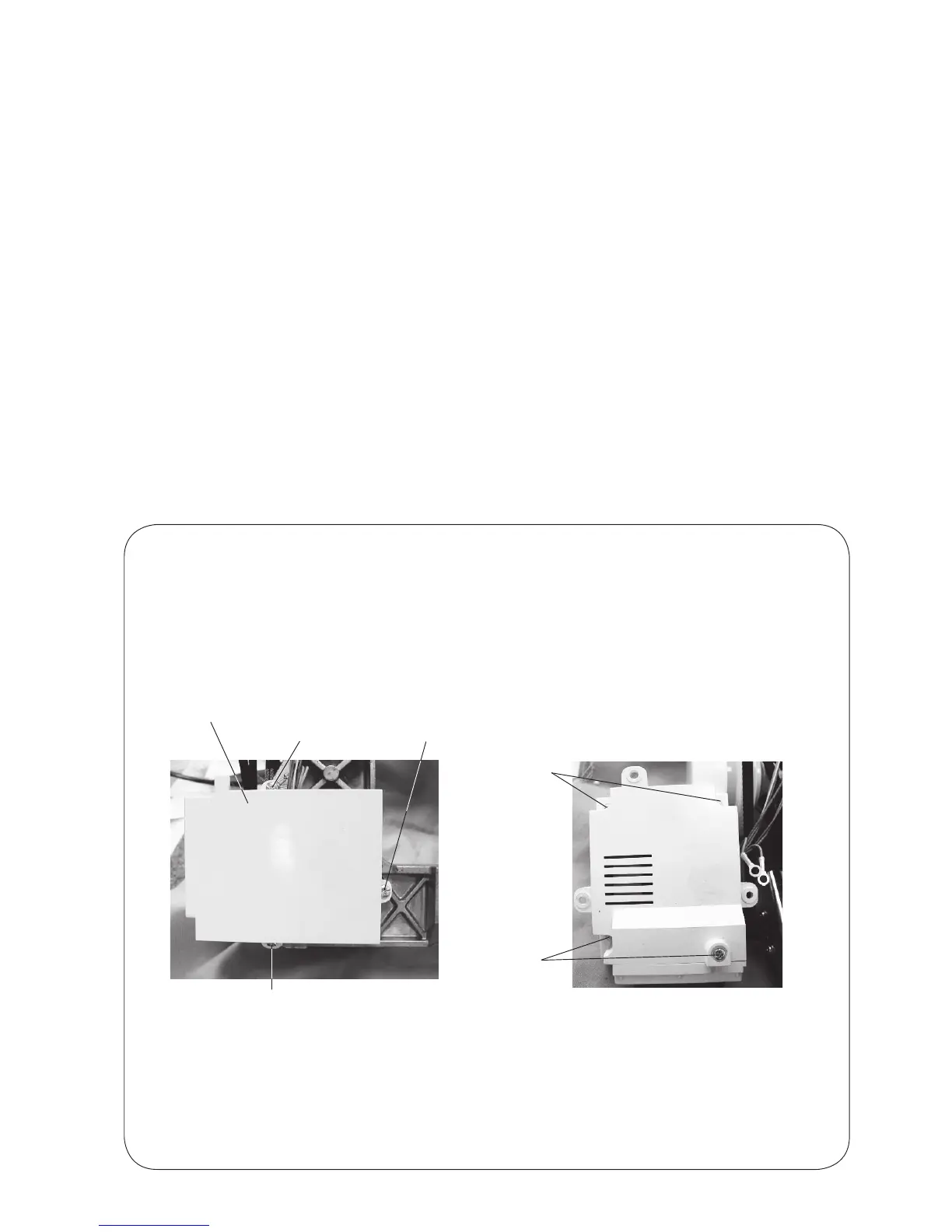

Switching
regulator
q
q
q
w
w
