Jarvis VC - Parts Diagram and List

parts diagram and list
Model VC
page 4 of 12
JARVIS
6222009::.
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457-- 4926
UNITED STATES OF AMERICA E--MAIL. jarvis.products.corp@snet.net
TEL. 860--347--7271 FAX. 860--347--6978 WWW.jarvisproducts.com
®
1 1327038
3
/
8
inch Pilot Pin 1
2 3332001
7
/
8
inch Blade 1
3 1312043 Cutter Shaft 1
4 3330007 Shaft Housing Assembly 1
5 1324040 Hose Connector 1
6 1343004 O--ring 2
7 1350032 Throttle Lever 1
8 1324033 Close Pipe Nipple 1
9 1350033 Lever Pivot Pin 1
10 1324061 Tube Connector w/Washer 1
11 3327002 Trigger Pin Assembly 1
12 1346001 Water Valve 1
13 1324066 Tube Connector 1
14 1350066 Grease Fitting 2
15 1311019 Needle Bearing 2
16 1342003 Planetary Gear 2
17 1350042 Rotor Vane 4
18 1304035 Motor End Plate (Rear) 1
19 1311020 Ball Bearing 1
20 1301060 Screw 1
21 1017084 Warning Label 1
ITEM PART NO. PART NAME QTY
ITEM PART NO. PART NAME QTY
22 1330042 Pistol Grip Handle 1
(includes items 20--23)
23 1317010 Hanger Ring 1
24 1327062 Trigger Retaining Pin 1
25 1343022 Gasket Seal 1
26 1303022 Split Lock Washer 2
27 1350081 Air Exhaust Muffler 1
28 1350043 Air Screen 1
29 1301092 Socket Head Cap Screw 2
30 1317012 Retaining Ring 1
31 1324017 Quick Connect Coupling 1
32 1350080 Air Inlet Valve 1
33 1327064 Valve Stem Pin 1
34 1327063 Valve Pin 1
35 1327048 Cam Retaining Pin 1
36 1349001 Trigger Cam 1
37 1338017 Trigger Bushing 1
38 1345005 Air Motor Trigger 1
39 1327046 Rotor Housing Pin 1
40 1337018 Rotor Sleeve 1
41 1312044 Splined Rotor 1
42 1304034 Motor End Plate (Front) 1
43 1311021 Ball Bearing 1
44 1303019 Washer 1
45 1311018 Needle Bearing 1
46 1312045 Gear Shaft 1
47 1327047 Planetary Gear Pin 2
48 1342004 Ring Gear 1
49 1311017 Ball Bearing 1
50 1316037 Shaft Spacer 1

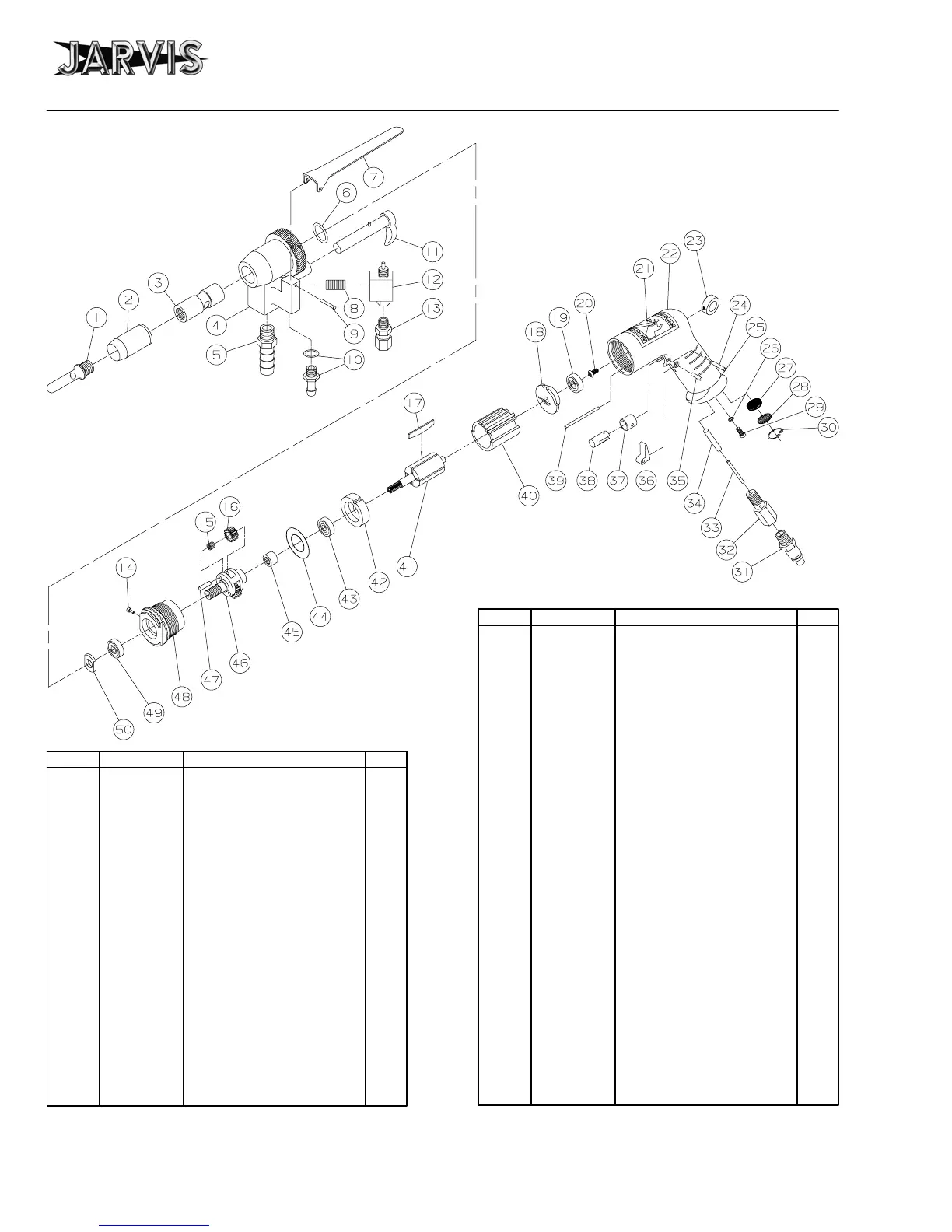

Model VC
Figure A
see page 9 for
additional blade and
pilot pin information.
*
* use tool 8327001 to remove
