Jarvis VC - Air Control Circuit

parts diagram and list
Model VC
page 5 of 12
JARVIS
6222009::.
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457-- 4926
UNITED STATES OF AMERICA E--MAIL. jarvis.products.corp@snet.net
TEL. 860--347--7271 FAX. 860--347--6978 WWW.jarvisproducts.com
®

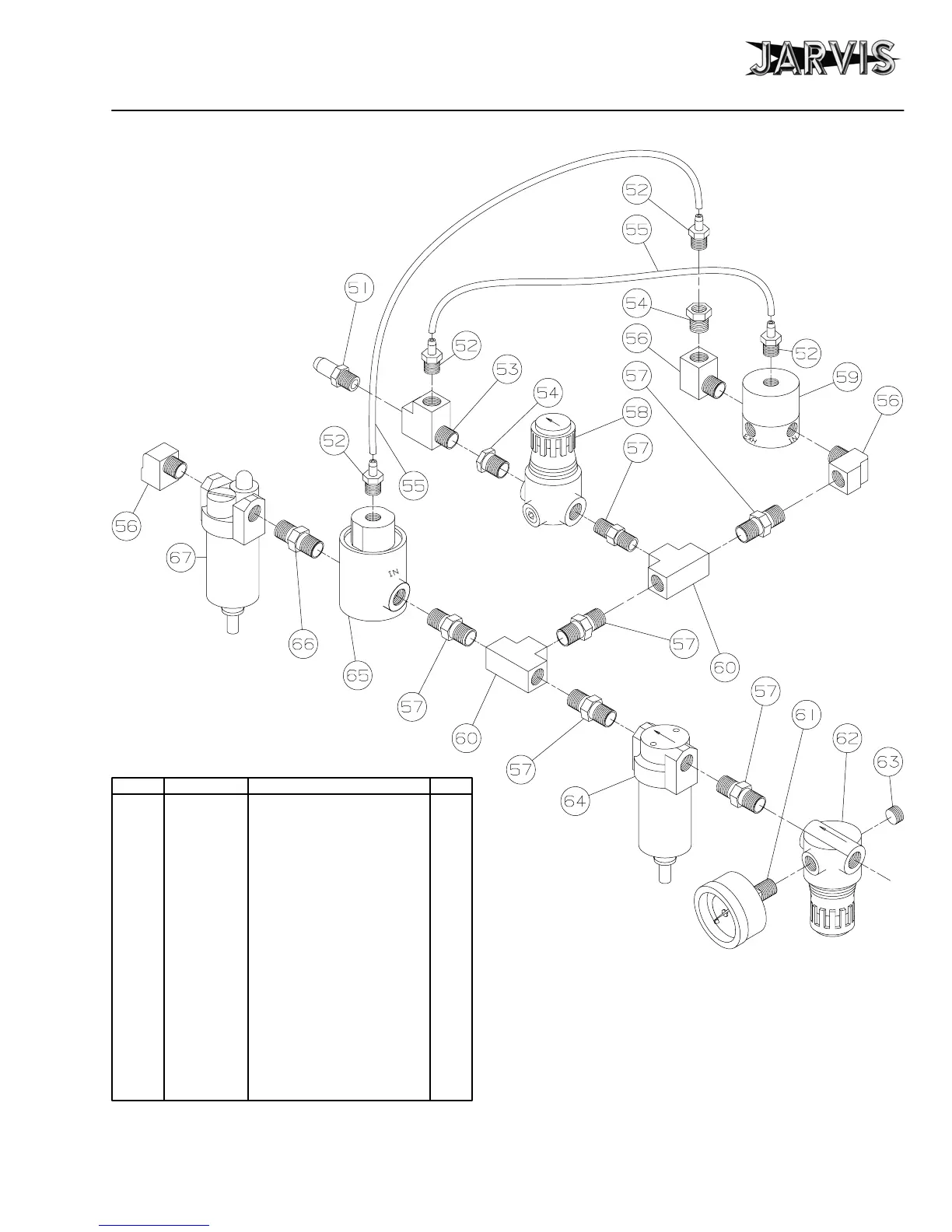

Air Control Circuit
Figure B
51 1324069 Tube Connector 1
52 1324058 Tube Connector 4
53 3350002 Venturi Assembly 1
54 1324063 Reducer Bushing 2
55 1323012 Tubing (9 inch) 2
56 1324051 Street Elbow 3
57 1324049 Hex Pipe Nipple 6
58 1350063 Air Regulator 1
59 1350079 Air Pilot Valve 1
60 1324050 Pipe Tee 2
61 1350048 Air Pressure Gauge 1
62 1350067 Air Regulator 1
63 1324039 Hex Soc Pipe Plug 1
64 1350050 Air Filter 1
65 1350078 Air Pilot Valve 1
66 1346007 Check Valve 1
67 1350057 Air Lubricator 1
1323015 Trigger Control Hose ft
3343009 Seal Kit for item 59
ITEM PART NO. PART NAME QTY
