Jasco ZigBee ZB4001 User Manual

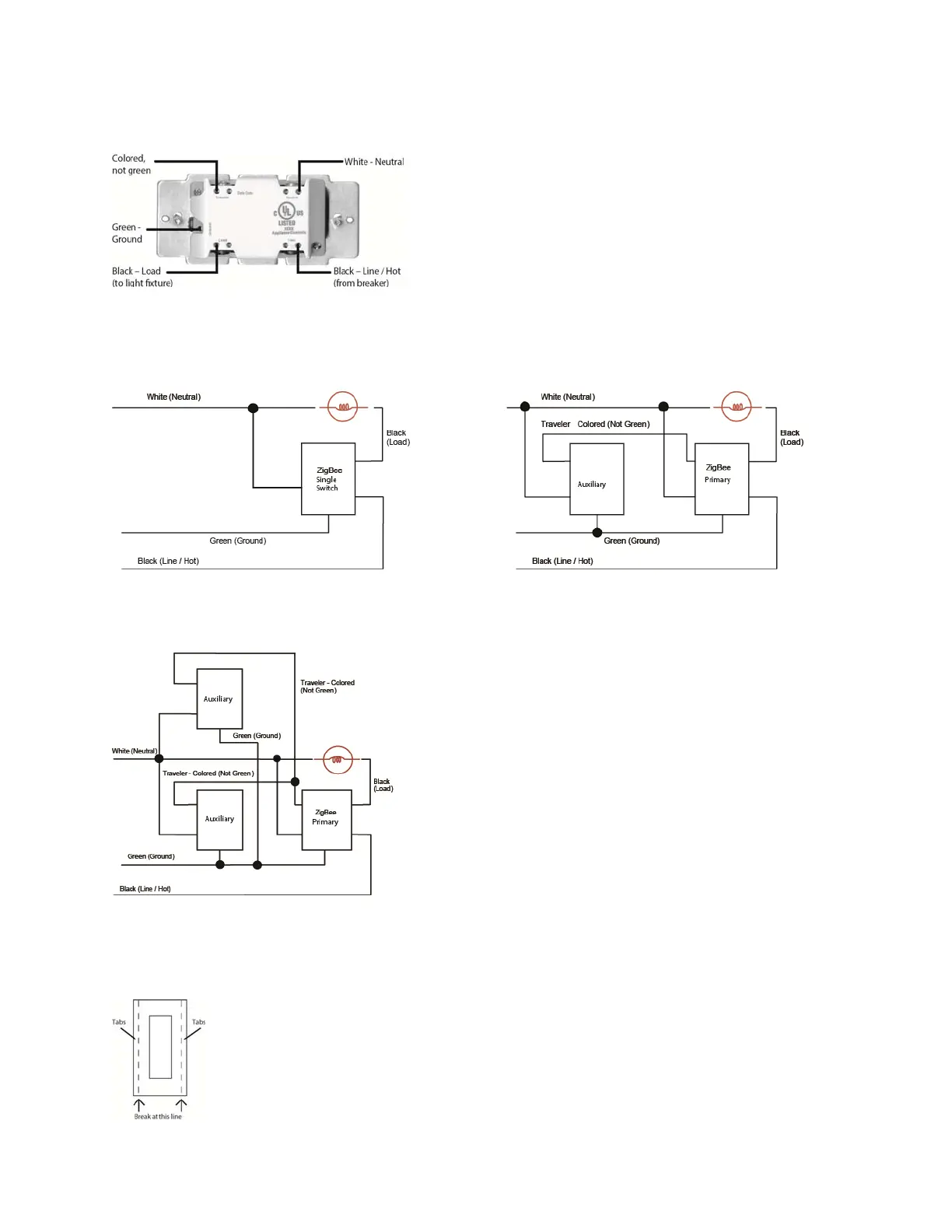

CONNECTIONS




TWO‐WAYCONTROL
SINGLESWITCHWIRINGUSINGONEPRIMARY
SWITCH

THREE‐WAYCONTROL
TWOSWITCHWIRINGUSINGONEPRIMARY
ANDONEAUXILIARYSWITCH


FOUR‐WAYCONTROL
THREESWITCHWIRINGUSINGONEPRIMARYANDTWOAUXILIARYSWITCHES



Single,DualandTripleGangBoxes
Wheninstallingthe
In‐WallOn/Offswitchinmultiplegangboxesitmaybenecessarytobreakoffoneor
bothofthescoredtabsonthefrontyoke.Thisdoesnotaffecttheelectricalratingoftheswitch.



Jasco ZigBee ZB4001 Specifications

Power

power	120VAC, 60Hz

Signal

signal frequency	2.4 Ghz IEEE 802.15.4

Maximum Load

maximum load incandescent	900W
maximum load motor	½ HP
maximum load resistive	12 Amp, 1440W

Operating Environment

operating temperature range	32‐104° F (0‐40° C)
indoor use only	true
