JasperMIDI guide
Standalone use
It is possible to put JasperMIDI in an external box – it can be powered by a Jasper using the mini-
DIN cable. If you wanted to make an external enclosure for use with the vintage Link equipment,
then it can be powered by battery, or external DC. It will work fine using a 9V battery connected to
the 12V header. A full-size 7-pin DIN socket to allow use with vintage EDP equipment could be
wired to the Link header on the PCB.

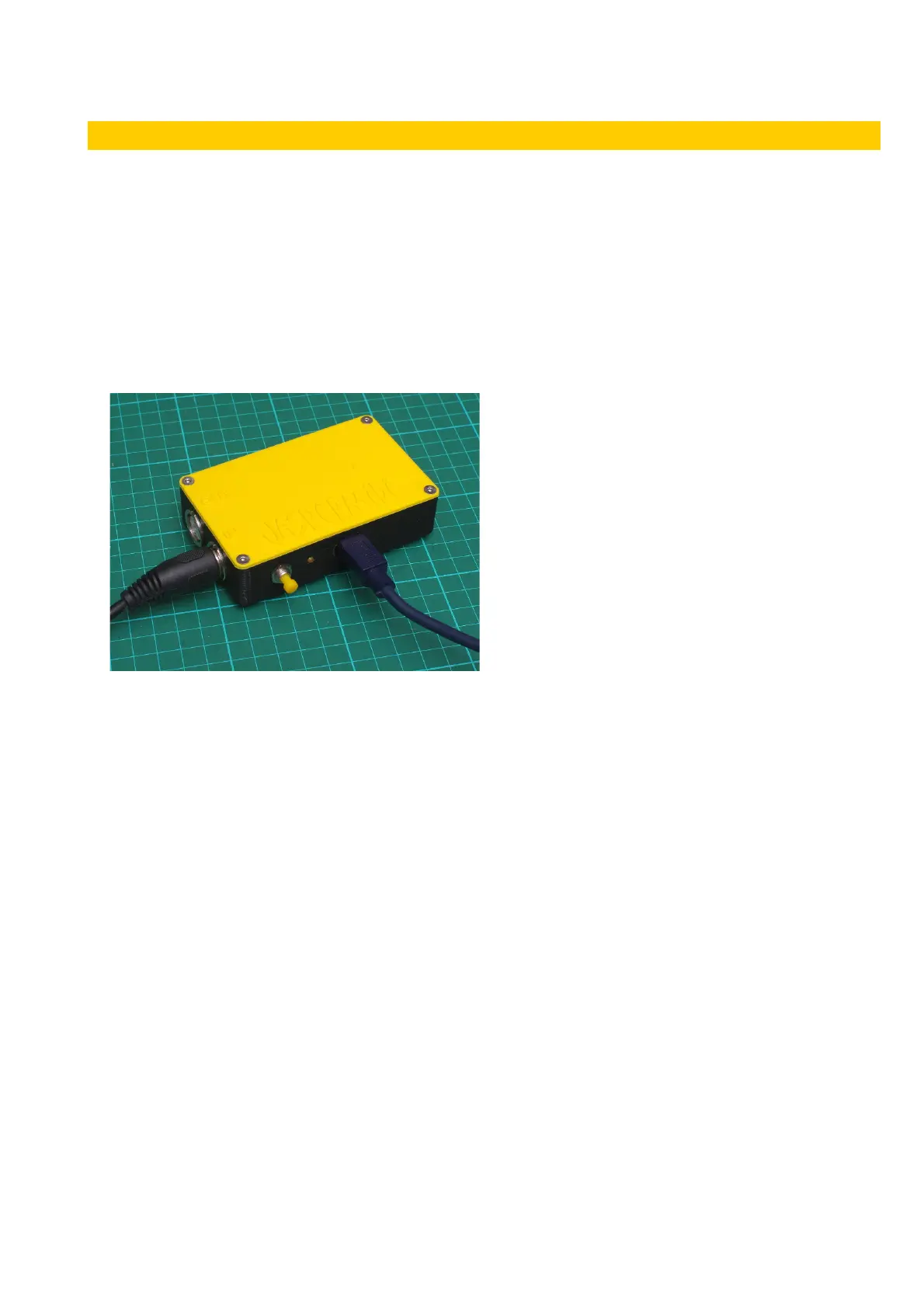

The image below show a simple 3D printed enclosure for JasperMIDI. It has two panel mounted
DIN sockets, and a push-button for programming the channel. It takes its power from the host
Jasper using the mini-din cable. The STL file for 3d printing can be downloaded from the
JasperSynth website.
v1 Page 6 of 9 November 2017
