Instruction Manual FS140 and FS100 - 6115... / 6116...
© BA_FS140+100_EN_Rev02-2010.doc Page 14 of 20

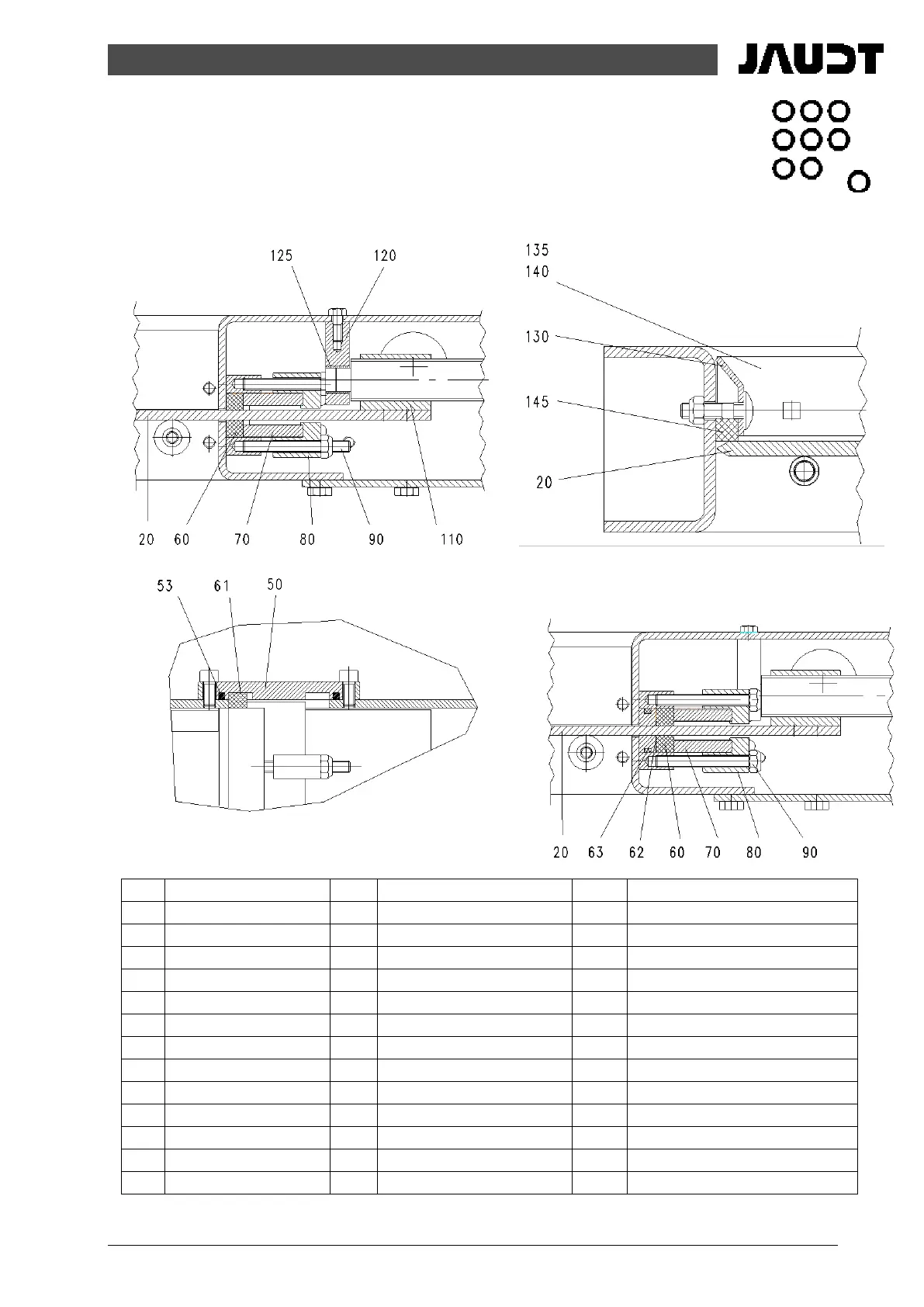

Detail Optional
Packing gland: All-round gasket:
Optional
Wiper in packing
Names of spare parts:
20
Slide plate
115
Lubricator
240
Limit switch
30
Roller / screw
120
Spindle lug
245
Terminal box
40
Cover plate
125
DU liner
300
Pneumatic cylinder / hydraulic cyl.
50
Packing cover
130
Tension bar front
301*
Cylinder repair kit
53*
O-ring
135
Tension bar right
310
Solenoid valve
60*
Packing
140
Tension bar left
320
Piston rod mounting
61*
Packing
145*
Packing all-round
400
Hand wheel
62*
Wiper
150
Spindle bearing housing
410
Chain wheel
63*
Packing cord
151*
O-ring
411
Chain
70
Pressure pad
152*
O-ring
412
Chain guide
80
Pressure part
155
Spindle bearing
413
Swing hook
90
Set screw
160
Clutch housing
420
Hand crank
100
Spindle
170
Clutch
430
Ratchet + accessories
110
Spindle nut
220
Limit stop
500
Motor
*) = Part subject to wear
