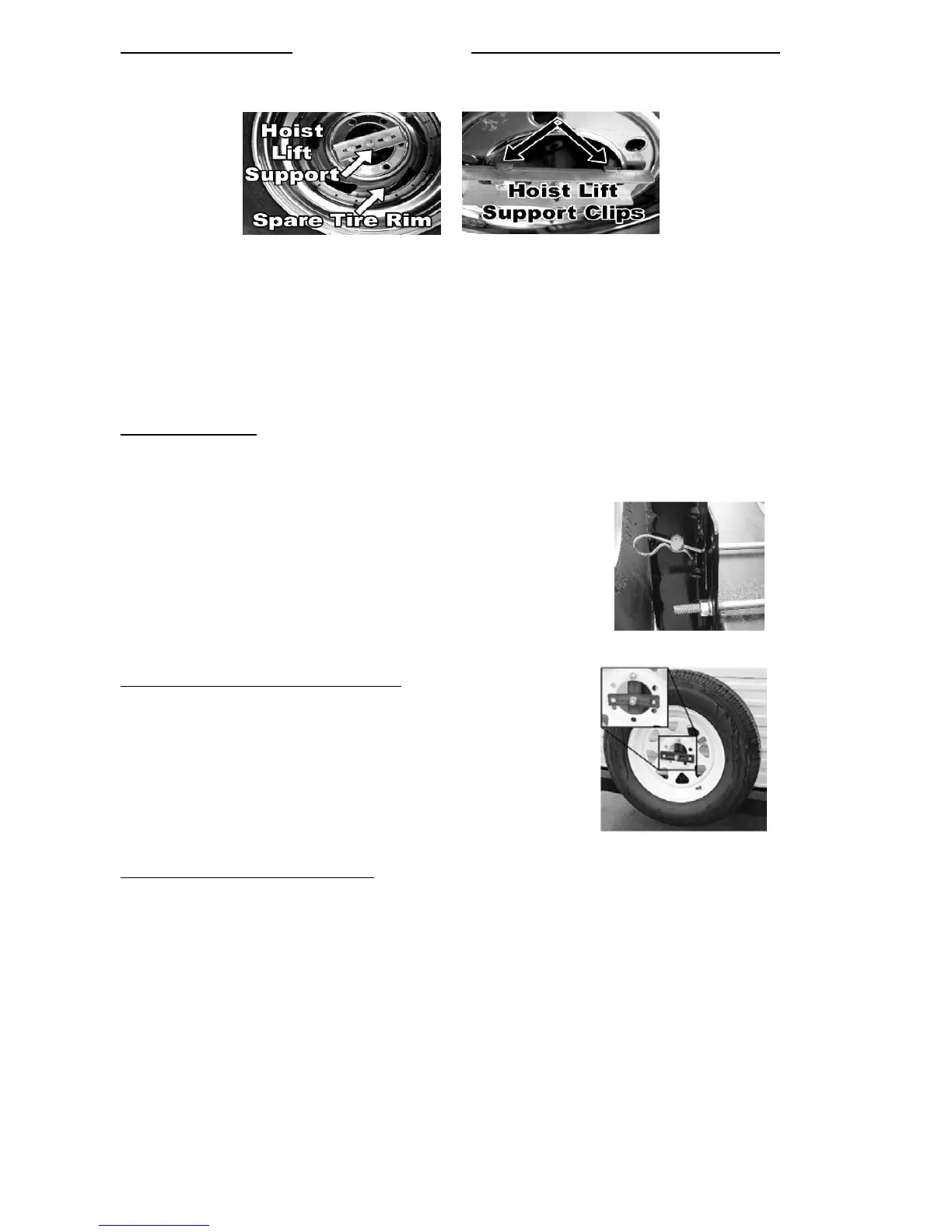

To secure the spare tire in the travel position:
Put the steel hoist lift support located on the end of the cable through the rim of the tire.
The hoist lift support clips need to seat inside the center hole of the tire rim. The valve
stem of the tire MUST be pointed in the up position or toward the bottom of the trailer.
1. Insert the crank handle into the hole located in the center of the rear “bumper.” Turn
the crank handle to lift the tire to the travel position.
2. Two crisp breaks must be heard and felt to insure proper seating of the tire for travel.
Reverse this process to release the spare tire for usage.
Bumper mounted
The spare tire bracket can be released and extended down to access a storage compartment
at the rear of the trailer without removing the tire.
To extend the tire down
1. Remove the cotter key from the pin holding the tire carrier
in place.
2. Remove the pin and extend the tire carrier away from the
trailer.
3. Always return the tire carrier to the upright position and
lock it in place while traveling.
To remove the tire from the tire carrier
1. Remove the lug nuts holding the tire in place.
2. Remove the support bracket from the bottom lug.
3. Pull the tire from the tire carrier.
Bumper mount
To install the tire on the tire carrier
1. Place the tire on the carrier with the top lug bolt inserted into one of the holes in the
tire rim and the bottom lug bolt in the center of the rim.
2. Install the top lug nut.
3. Place the support bracket over the bottom lug bolt across the center of the rim.
4. Install the bottom lug nut over the support bracket.
5. Make sure the lug nuts are tightened securely before returning to travel.
