SECTION 6-ELECTRICAL SYSTEMS JAYCO TOWABLE
BATTERY DISCONNECT SWITCH (IF SO EQUIPPED)
BATTERY ISOLATOR FOR YOUR TOW VEHICLE (CUSTOMER
SUPPLIED)
You may want to consider the installation of a battery isolator on your tow vehicle as a
convenience feature:
It receives current from the tow vehicle alternator and controls distribution of energy
to both the RV auxiliary battery and the tow vehicle battery.
It serves as a check valve to prevent energy from being drawn from your tow vehicle
chassis battery (so you can start your tow vehicle engine).
Your dealer can assist you with the selection, purchase and installation of this aftermarket
part. than 60 watts (5 amps) of 12-volt power. To prevent short circuits do not allow
metallic foreign matter to get into the 12-volt DC outlet.
LOAD CENTER
The Load Center contains 12VDC fuses and 120VAC circuit breakers for almost all of the
electrical appliances and circuits in the RV. The 120V Main Breaker (if so equipped) is
located in this panel and will turn off all 120-volt power to the recreation vehicle. The
Load Center is a hinged panel typically attached to a cabinet face in the main living area.
Locations will vary by model. Refer to the diagram inside the Load Center for specific
fuse assignments. Most load centers contain the same components, but they may be
positioned differently. Not all load centers will include a main breaker.

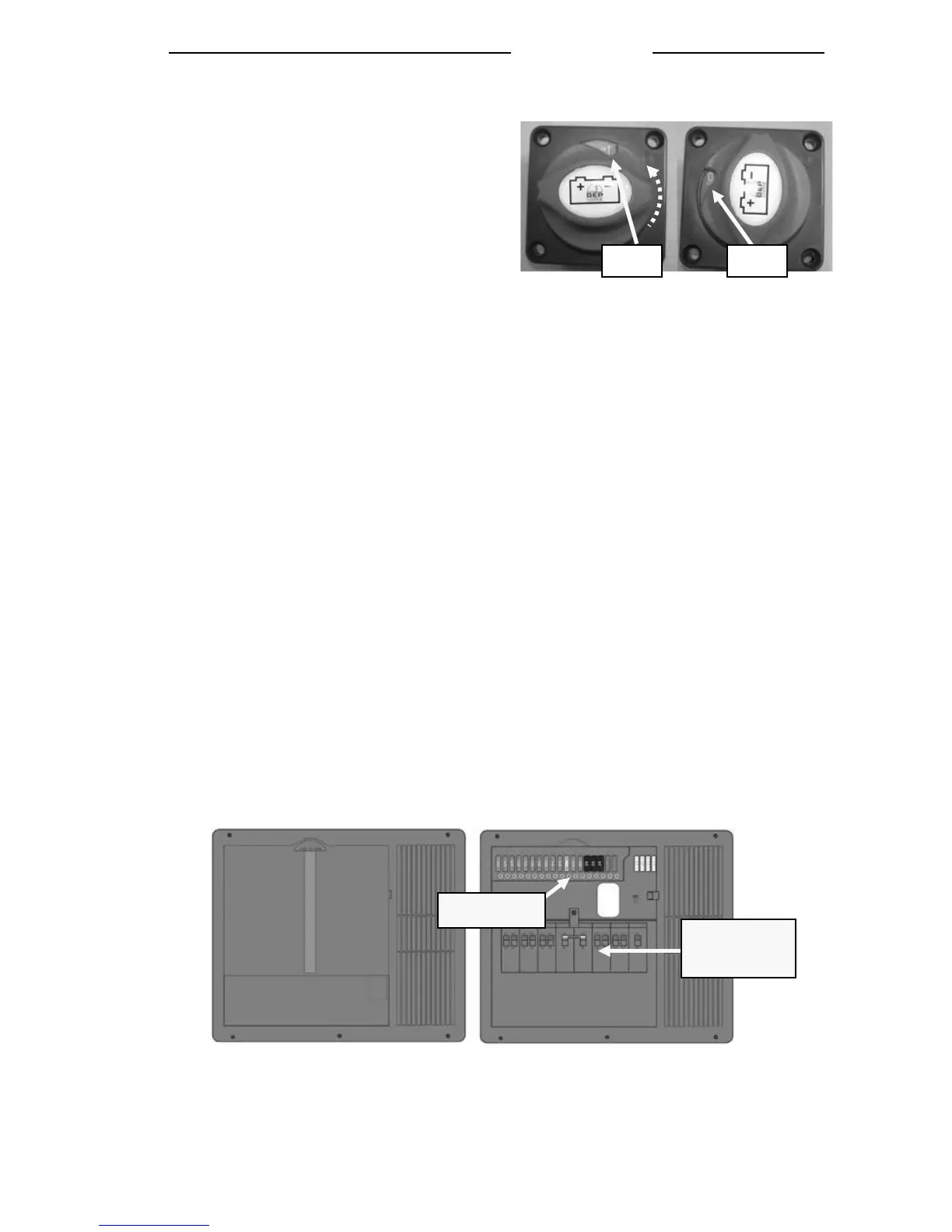

an enclosed exterior compartment at the
front of the recreation vehicle. This switch
shuts off all 12VDC power to the main 12V
fuse panel, and the interior of the vehicle.
When the switch is on, there will be green
visible along with a “1” at the top of the
switch. To turn the switch off, turn it
counter-clockwise until you see red along
with a “0”.
