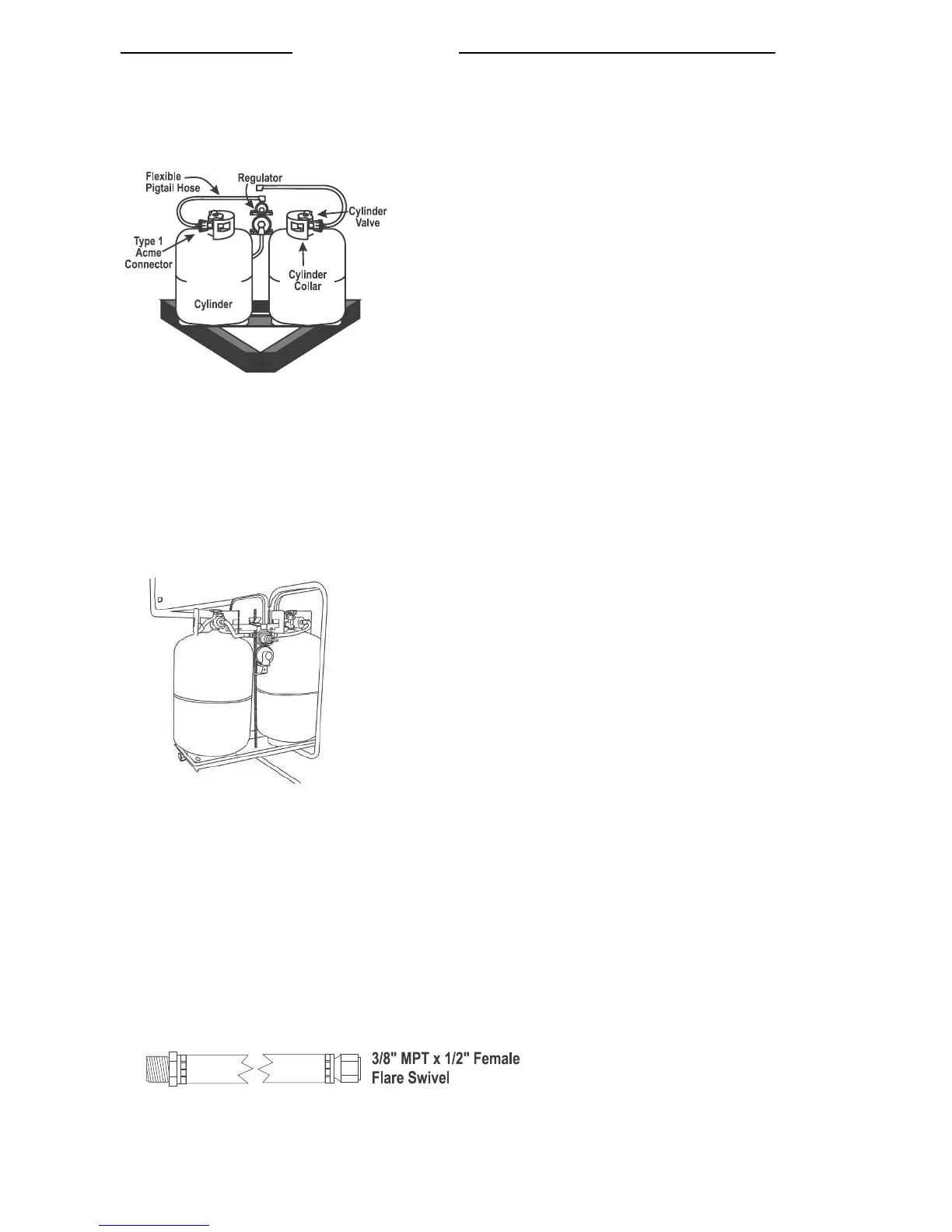

Double Cylinder Mounted On A-Frame (if so equipped)
When a second cylinder is installed, a tee check valve is used to replace the 90° elbow at
the top of the regulator and another 1/4" inverted flare x 24" Type 1 pigtail is added. The
regulator stays in the original position.
Double cylinder
1. Place the second cylinder on the A-frame bracket so the cylinder valve is pointed to
the roadside of the folding camping trailer.
2. Secure the second cylinder to the A-frame using the bolts, nuts and washers provided.
3. If a vinyl cylinder cover is used, slip it over the new single cylinder, or a double
cylinder cover may be used in lieu of single covers.
4. Attach the second 24" hose to the tee check valve on the regulator and the right
handed swivel nut to the cylinder valve.
Located in a recessed compartment or housing (if so equipped)
Two propane cylinders
1. Connect the 3/8” low-pressure hose to the outlet of the two-stage regulator.
2. Place the cylinder on the bracket in the recess compartment or housing and secure
them so the outlets of the cylinder valves are facing the “sidewalls” of the
compartment or housing (opposite of each other).
3. Mount the regulator on the center back wall of the compartment or housing so the
vent is pointed downward.
4. Attach the 1/4” inverted flare x 18” Type-1 pigtail hose to the regulator inlet and the
right hand swivel nut to the cylinder valve.
Main Supply Hose – Low Pressure
Attach the main supply hose from the regulator to the brass manifold fitting in the frame of
the trailer. The swivel brass nut on the main hose will be your final attachment
.
Main supply
hose
7-6
