Maintenance
Your slideout system has been designed to require very little maintenance. To ensure a
long life of your slideout system, read, understand and follow these simple instructions.
This system contains a pre-lubed bearing that is lubricated when the room is moved in and
out. Do not spray oil or grease on the rails while the room is extended.
MANUAL OPERATION
Electronic Manual Override Operation
The Schwintek system comes with an “electronic” manual override. In event the slide out
does not extend or retract follow these steps to override the system which should allow the
slideout to be retracted.
NOTE: Fuses for the slideouts can be found in the Load Center and
may be designated as Auxiliary or Slideout Motor.

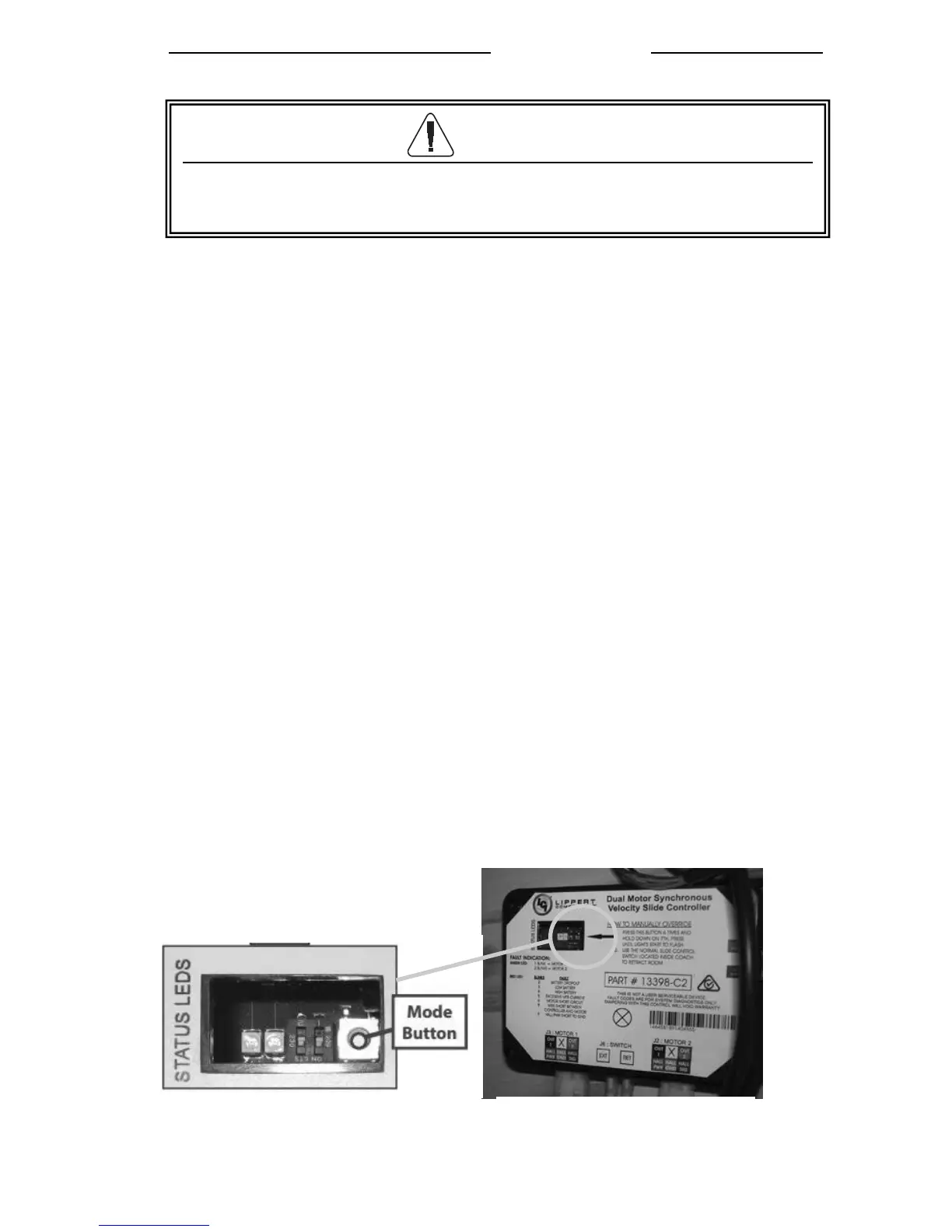

1. Locate the slideout system controllers (shown below). There should be one for each
slideout on the RV. Typically located in the basement compartment in the forward
section of the RV. They will be mounted on the forward wall, or up on the ceiling of
the basement compartment possibly behind a cargo lined panel.
2. The controller that has malfunctioned should have a flashing red LED indicating a
hall signal fault (will flash 8 or 9 times).
3. Press the “mode button” six times quickly, then press a 7
th
time and hold for
approximately 5 seconds.
4. The red and green LED lights will begin to flash indicating you are in override
mode. Release the mode button.
5. Use either a wall switch, or one of the slide room switches located on the Command
Center Panel (depending on the slideout in question). Press the switch toward the
word IN or RETRACT (printed next to the switch) and hold it until the unit comes
completely in.
6.
This will allow you to get the RV to a service center to have the slideout
malfunction diagnosed.
WARNING
Do not work on your system unless the 12-volt DC (auxiliary battery, customer
supplied) and 120-volt AC electrical systems (shore line power cord) have been
