SECTION 3 - PRE-TRAVEL INFORMATION CLASS C MOTOR HOMES
GH/M 3 - 4

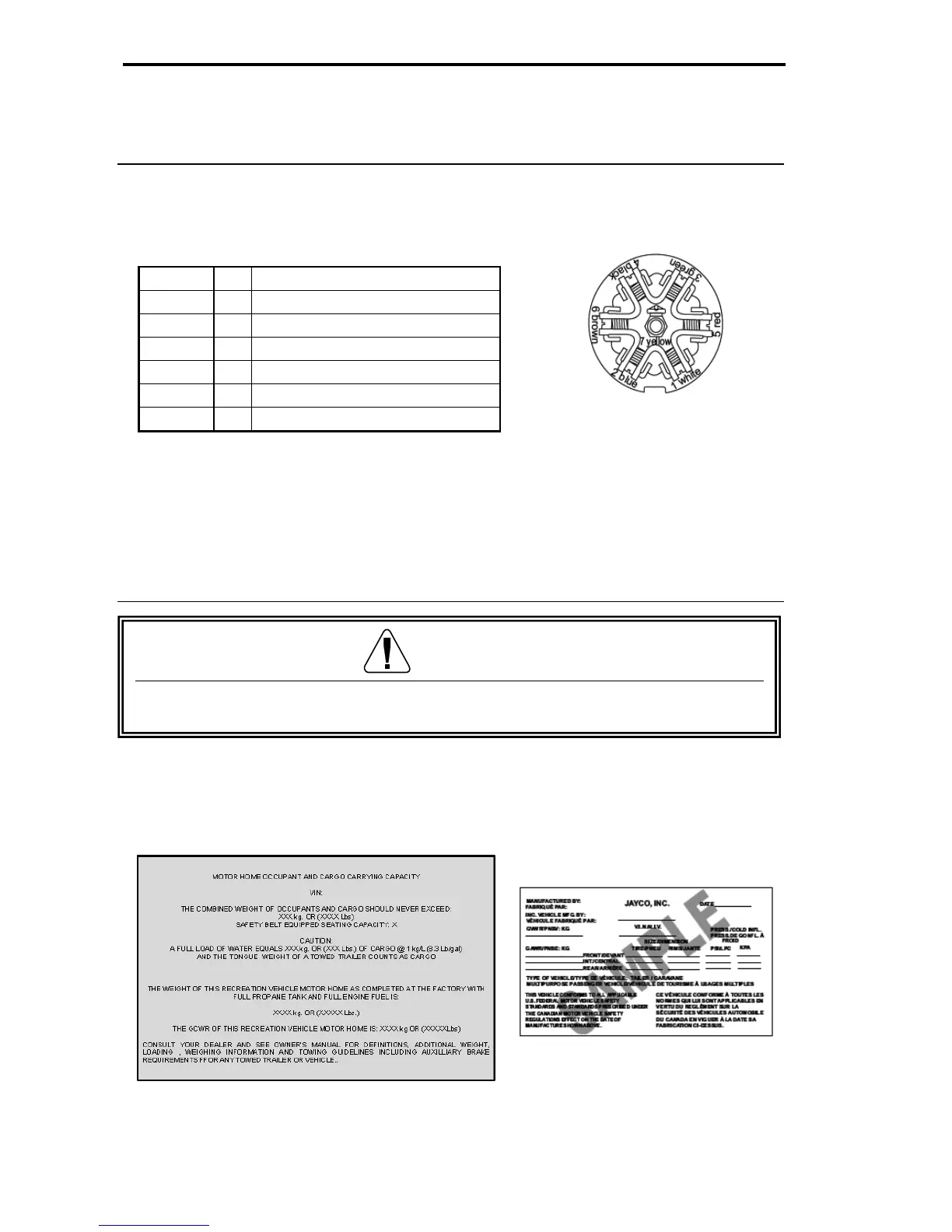

Fig. 3.2
7-way trailer plug
Car end, rear view
Periodically check the bolts for tightness. They need to be torqued to the
proper setting (refer to your Chassis Guide).
TRAILER PLUG
If you choose to tow behind your RV, a chassis manufacturer supplied 7-way
trailer plug (located at the hitch) is pre-wired into your motor home. Wiring to
operate your towed vehicle brakes must be the same size in both the towed
vehicle and the motor home.
White 1 Ground
Blue 2 Brakes
Green 3 Running lights
Black 4 House batteries charge line
Red 5 Stop & left turn
Brown 6
Stop & right turn
Yellow 7 Back up
Maintenance
The connector plug may build up corrosion with extended use and should be
cleaned periodically to insure good electrical contact. Make sure the connector
plug is kept clean and protected from road elements as you travel.
W
EIGHT LABELS
Vehicle weight labels are posted on Jayco manufactured RVs so you can make an
informed decision before your purchase. Do not remove these labels from your
RV. If the labels are missing, contact your dealer or Jayco Customer Service for
replacements.
Fig. 3.3 Federal Certification label
WARNING
The factory-installed weight labels are specific to the recreation vehicle for
which they are supplied and are not interchangeable
.
Fig 3.4 Motor home Weight
Information label
