NON-BASEMENT MODELS
The water pump and valve connections for non-basement vehicles, are typically
located under the bathroom vanity and/or the dinette seat. The pictures for the
following instructions show the layout of the valves, not their locations in the
vehicle. Depending on which non-basement model you have, one of the following
sets of instructions will apply. Determine which method applies to your vehicle
and use that method each time the instructions refer to a variation in the valve
configuration. If you are unable to determine the exact operation of your motorhome, consult with
your dealer for assistance.
For Model 23RK:
•
Connect a garden hose from the water
supply line to the “city water connection”.
(Fig. 4-4)
•
Make sure that valves 1, 2, 3, 5, and 6 are
closed and valve 4 is open. (Fig. 4-5 &
4-6)
•
Open the valve on the water supply line.
•
Enter the unit and open the faucets to
bleed air from the lines. The water heater
will fill first, followed by the supply lines
and faucets. When the lines are near full,
you may experience some air pockets.
Allow them to escape before closing the
faucets.
• Close valve 4. (Fig. 4-5)
For Model 24SS:
•
Connect a garden hose from the
water supply line to the “city water
connection”. (Fig. 4-4)
•
Make sure that valves 1, 2, 5, and 6
are closed and valves 3 and 4 are
open. (Fig. 4-7)
•
Open the valve on the water supply
line.
•
Enter the unit and open the faucets to
bleed air from the lines. The water
heater will fill first, followed by the
supply lines and faucets. When the
lines are near full, you may
experience some air pockets. Allow
them to escape before closing the faucets.
•
Close valves 3 and 4. (Fig. 4-7)
30 Type C Owner’s Manual

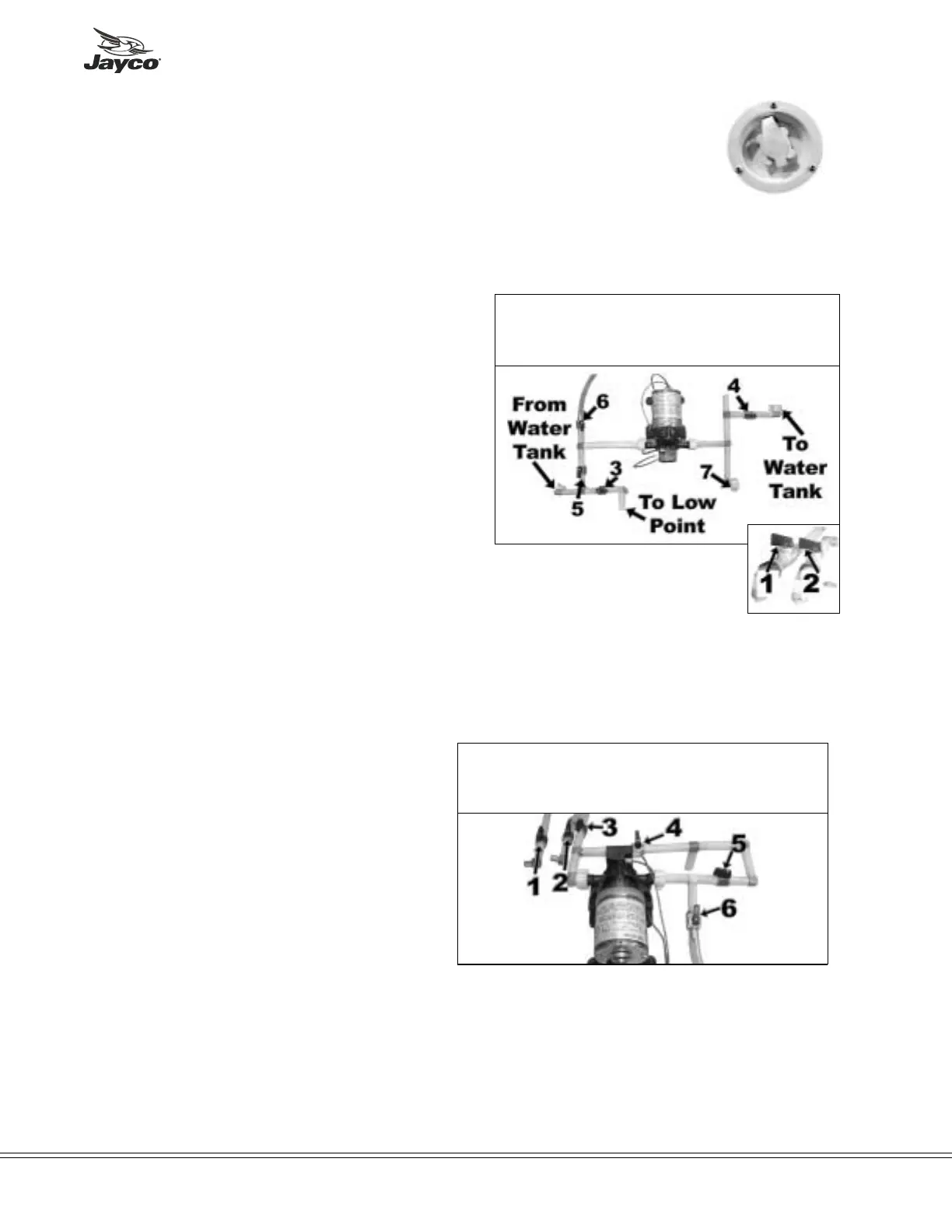

Fig. 4-4
Fig. 4-5
1&2-LowPoint Drains
3 - Tank Drain
4. - Tank Fill
5 - Tank Outlet
6 - Winterize
7 - City Water
Fig. 4-6
Fig. 4-7
1&2-LowPoint Drains
3 - City Water
4 - Tank Fill
5 - Pump
Operation
6 - Winterize
