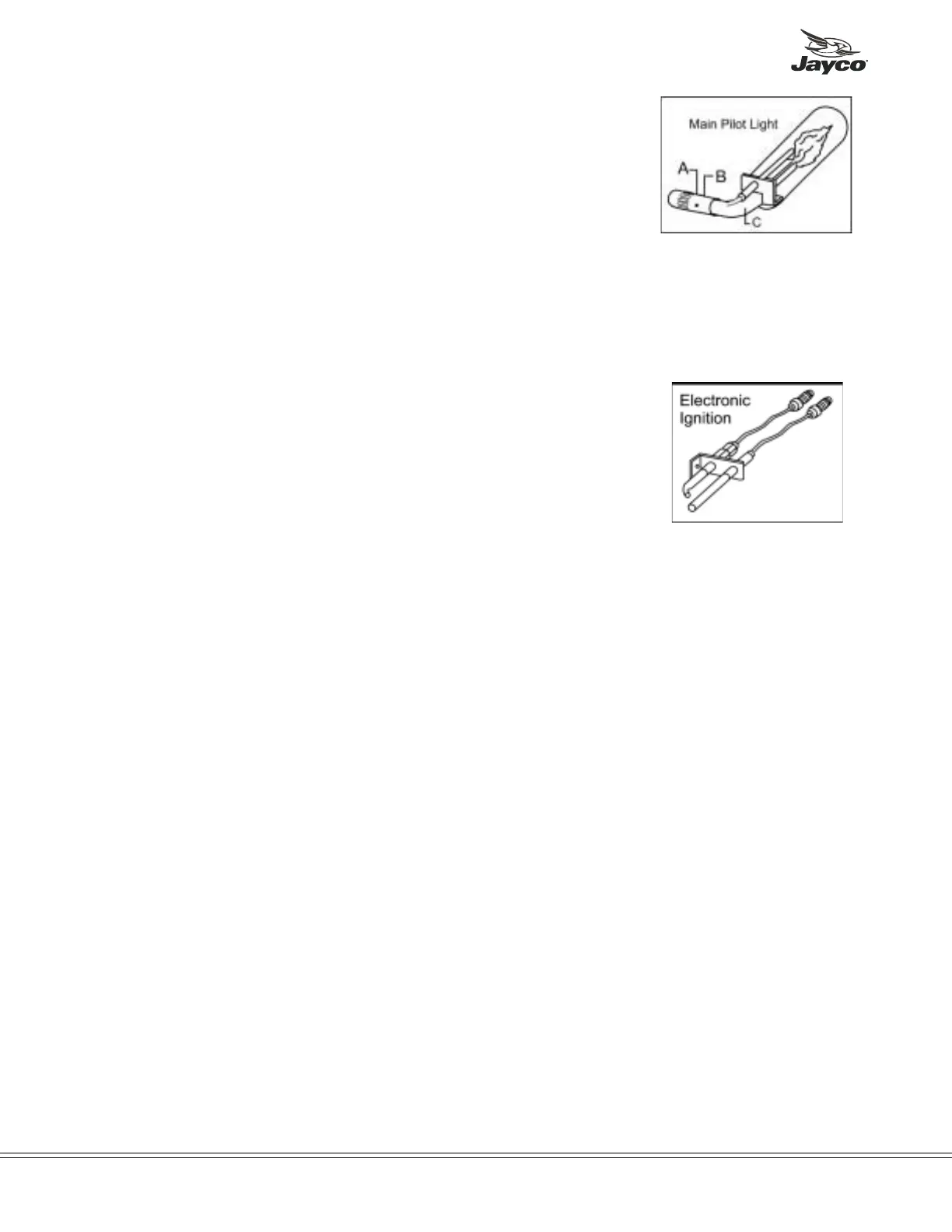

TO ADJUST MAIN BURNER (FIG. 5-6):
1. Loosen air shutter screw (Fig. 5-6A).
2. Slide air shutter (Fig. 5-6B) to the right until some yellow
appears in the main burner flame.
3. Move air shutter (Fig. 5-6B) to left until yellow disappears.
4. Retighten air shutter screw (Fig. 5-6A).
Read MAINTENANCE AND CARE INSTRUCTIONS.
Electric Ignition Operation
1. Refer to Wiring Diagram in the manufacturer's manual. Place remote switch in the "ON"
position.
2. If remote switch light stays on longer than fifteen seconds, place remote switch in the "OFF"
position and wait five minutes.
3. Repeat step one of adjusting main burner.
4. For complete shut-down and prior to servicing:
a. Place remote switch in the "OFF" position.
b. Remove red wire from left hand terminal of ECO switch
(ECO to valve).
5. If heater fails to operate due to high water temperature, a
lockout condition occurs (indicator light on). After water cools,
reset switch in the "OFF" position for at least thirty seconds,
then return to "ON" position.
6. If a lockout condition persists contact an Atwood Service Center.
Read MAINTENANCE AND CARE INSTRUCTIONS & ELECTRONIC IGNITION
MAINTENANCE.
Pilot Re-ignite Operation
1. Turn the switch located on the spark module to the "ON" position.
2. Read Pilot Operation Instructions.
3. For complete shut down, turn lighting control knob on thermostat and spark module switch to
the "OFF" position.
Read MAINTENANCE AND CARE INSTRUCTIONS.
Appliances 71
Fig. 5-6
Fig. 5-7
