120-VOLT AC

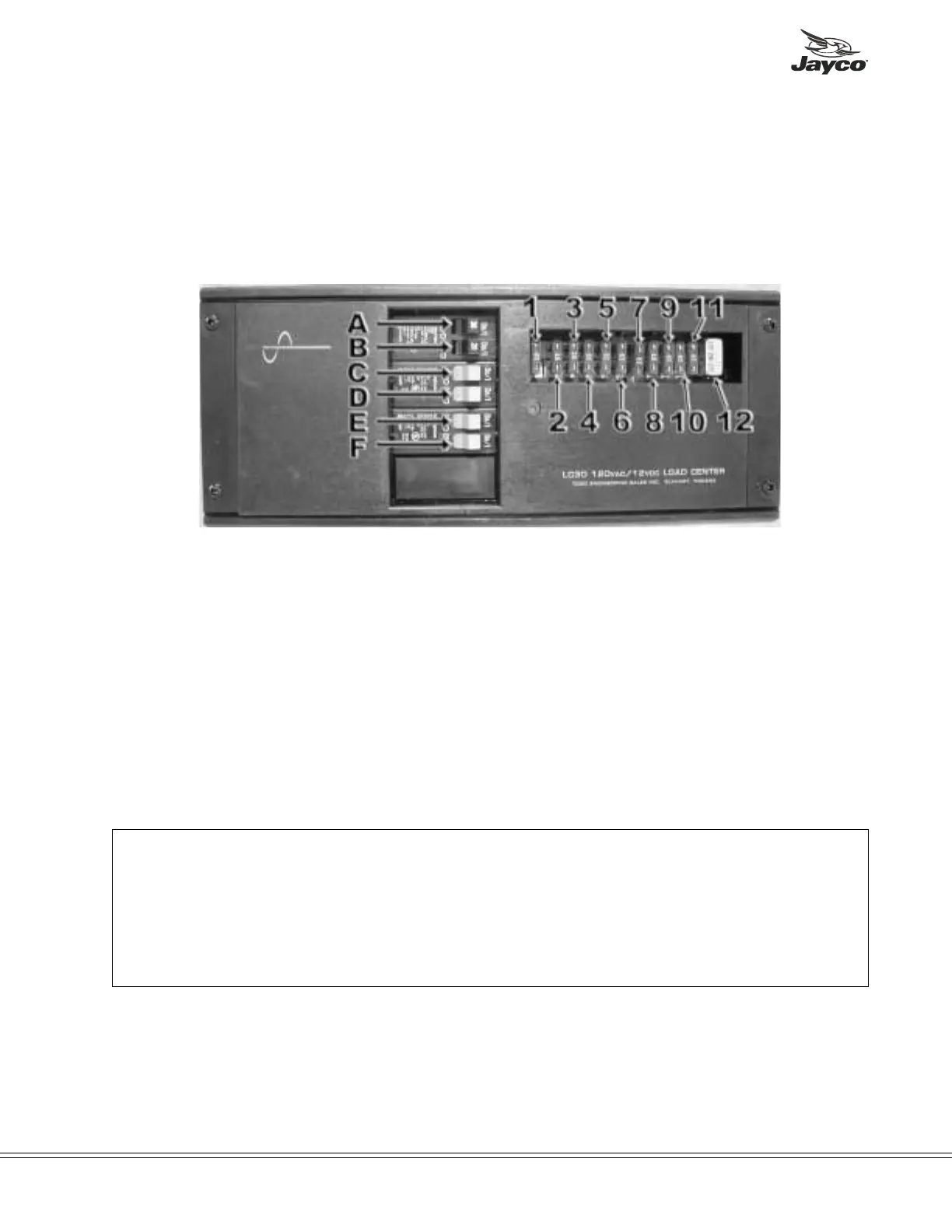

The diagram below for the 120-volt AC layout.
12-VOLT DC
See the above diagram for fuse definitions.
I
CAUTION: Your recreation vehicle has many 12-volt DC loads. When
combined, their total is more power consumption than the power converter can produce.
Periodic overloads can be handled with an auxiliary battery for limited periods of time.
Prolonged overload on a converter will shorten the life of its components. It is recommended
to plan and conserve the usage of your 12-volt DC system in a priority method.
The Systems 55
1 - Bath
2 - Pump
3 - Furnace/Refrigerator
4 - Bed Lights
5 - TV/Radio
6 - Ceiling Lights
7 - Optional
8 - Slideout Lights
9 - Optional
10 - Optional
11 - Optional
12 - Power for Slideout
A - Main
B - Converter/Utility
C - Air Conditioner
D - Kitchen, Bath, Outside
E - Microwave
F - Electric Water Heater
12-volt DC Layout
120-volt AC Layout
Fig. 4-30
Fig. 4-30
