Jaytech 1200 V4 - Battery backup Assembly (optional)

- 9 -
Battery backup Assembly (optional)

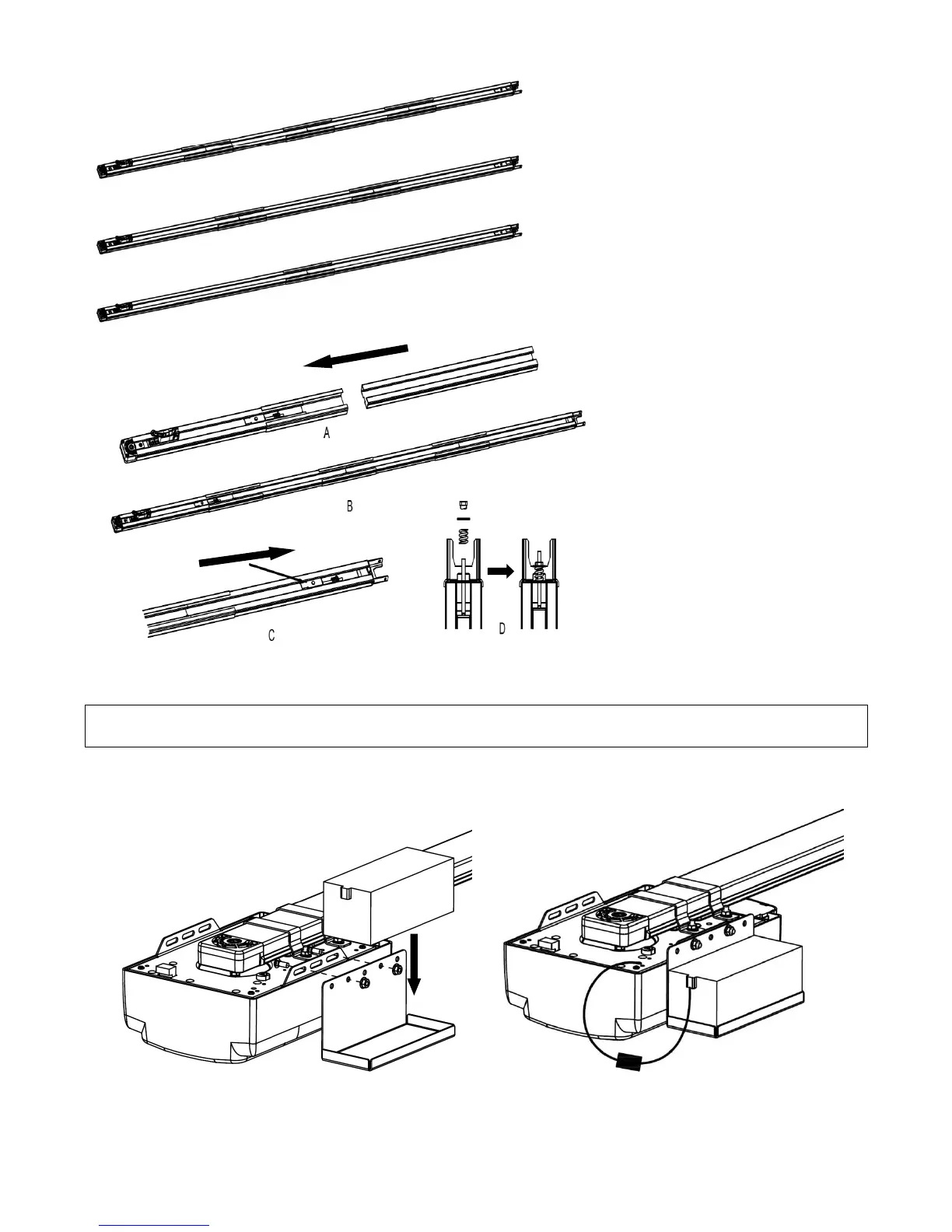

Assemble the battery using battery bracket, washers and nuts supplied (Fig. 9, Fig.10).
Fig.9
Confirm the type of the rail you have
bought according to Fig7.
Fig.7
Install the rails according the
stepsog Fig8:
A. Connect the rails by the sleeve;
B. Follow the steps in the picture to
connect the rails
C. Move the pulley to the top end
of the rail after the rails are
connected
D.Strecth the screw bolt of the
pulley into the hole on the rail.
Install the spring, washer, and
adjusting nut. Adjust the nut to
asuitable position, the installation
of the rails finished.
Fig.8
2 IN 1
4 IN 1
3 IN 1
Fig.10
