Basic function setting and applying
1. Matching the receiver and transmitter

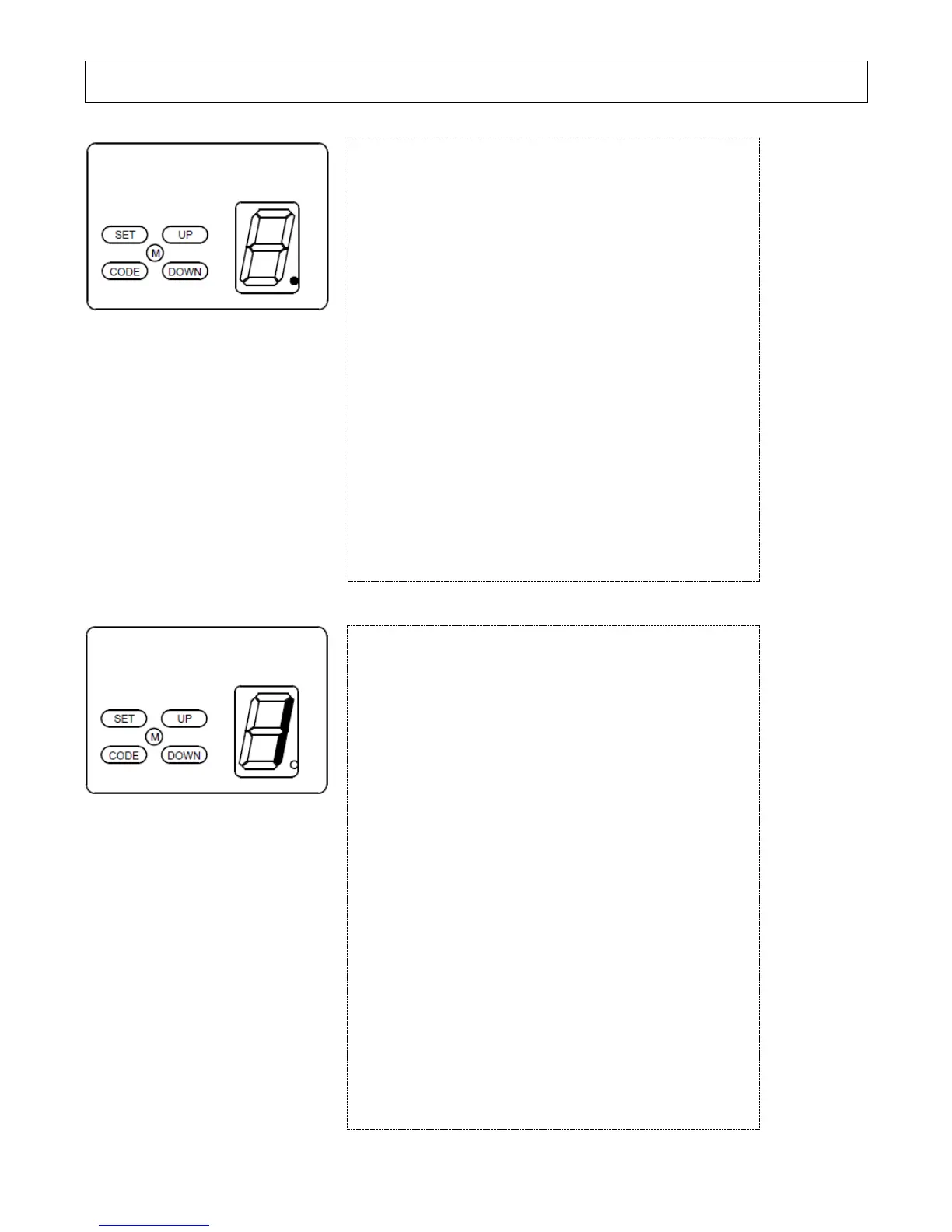

Fig. A
(The opener is supplied with
pre-coded transmitters.)
2. Travel limit setting Opening & closing force self-learning
Press and hold on “SET” button for 3 seconds until the LED
flashes “1”. Press “SET” button again for 1 second . “1”
should now display as steady (not flashing).
Then adjust the up limit by pressing “UP” button.
Fine-tuning “UP” or “DOWN” button to determine the final up
limit position (the LED flashes “n” or “u” during opening or
closing), then press “SET” button, the display turns into “2”
automatically.
Adjust the down limit by pressing “DOWN” button.
Fine - tuning “UP” or “DOWN” button to determine the final
down limit position (the LED flashes “n” or “u” during opening
or closing), then press “SET” button.
If the opener stops and LED flashes “H” or “C”, this indicates
there’s no hall signal or the opener is overloaded.
The opener will operate a cycle automatically to remember
the limit positions and the original opening & closing force,
then return to standby mode.
During learning, if the door stops unusually, and flashes “H”,
“C”, “O”. “L” for 5 seconds, this indicates there’s no hall
signal, overload, overtime or wrong limit setting.
Coding Transmitters:
Press and hold on “Code” button for 1 second until the led
dot is on (Fig A). Press button on transmitter once, the dot
will go off, press the same transmitter button again and the
dot will flash fast for 8 times, and then return to standby
mode. The transmitter is now coded into the receiver.
Repeat the above steps to code more transmitters.
The receiver has the capacity to store 20 transmitters.
If the led display flashes “F” and returns to standby mode
(after you have pressed the Code button), this indicates
that the memory storage is full (20 transmitters).
Follow the steps below to delete all transmitters that are
stored in the receiver memory:
Press and hold on “CODE” button for more than 8
seconds until the LED flashes “C”, all the stored codes are
deleted.
Only the matched switch on the transmitter is available.
If failed to match the transmitter within 20 seconds, then
it will return to standby mode automatically.
