- 7 -
Installation
1) Read the instruction carefully.
2) Make sure the door structure is solid and suitable to be motor driven.
3) Make sure when the door is moving, there are no friction point.
4) The door must be properly balanced and must be easily lowered and raised by hand.

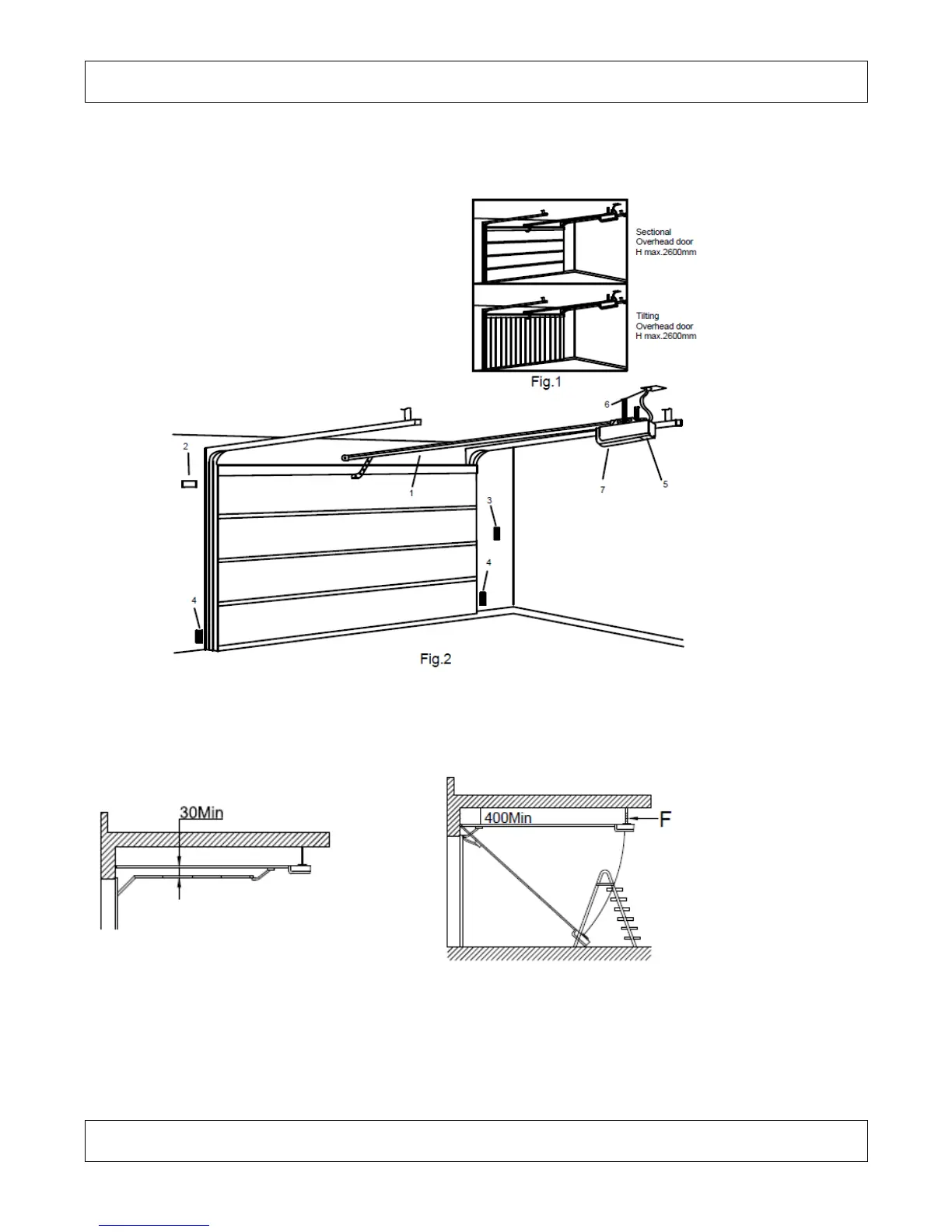

Referring to Fig. 2 for recommended installation
1) Track 5) O/S/C button
2) 24V DC flash light (optional) 6) Power socket
3) Wall switch (optional) 7) Door opener
4) Photo beam (optional)
Maintaining a minimum gap of 30mm between the top panel and the bottom of rail (Fig. 3).
Make sure the track is horizontal and vertical to the shaft. Make sure the connection of hanging bracket F and ceiling is
firm enough (Fig. 4).
Warning: Make sure the opener is affixed to solid ceiling and not to plasterboard. Failure to have a safe and secure
fixing will lead to opener falling, and can cause serious persons and /or property damage.
Installation (steel track)
To Next Page
