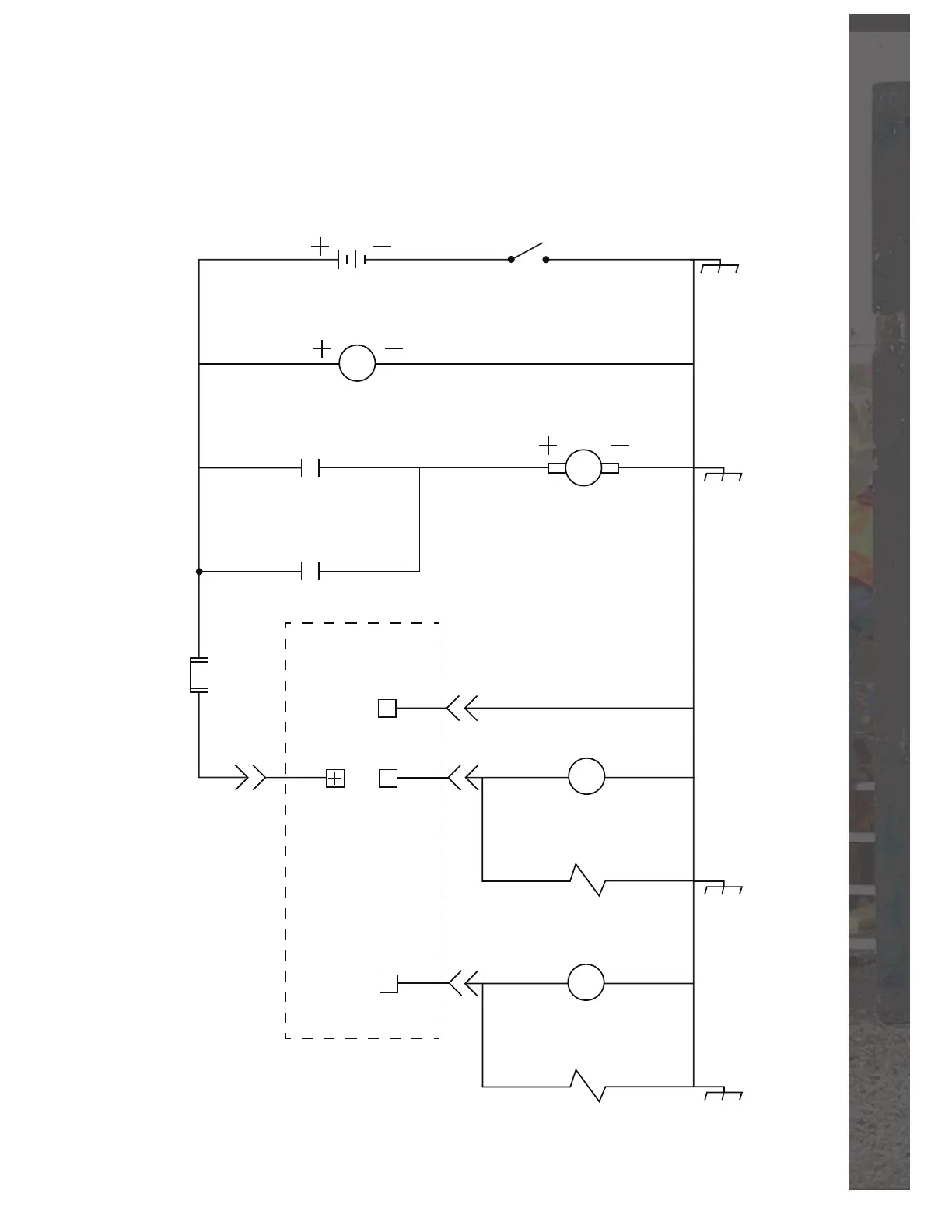

JB Pipepuller 1700 - Cordless Remote Wiring Diagram

JB Pipepuller l Troubleshooting
27
Red
Red
Red
Red
Volt Meter
Solenoid Set
Contact
Solenoid Release
Contact
10
20
30
40
Blk
INTERSTATE
SRM-4D 12 Volt
Marine/RV
Deep Cycle Battery
Cole Hersee Master
Disconnect
Chassis Ground
(Minimum 11 Volts)
V
Hydraulic Motor
M
Cordless Remote
“LODAR”
Model# 110000
10 Amp
Standard
Blade Style
Fuse
50
60
70
80
90
Red
Blk
Grn
Blk
Grn
Purple
Set Solenoid
F1
S
Grn/Yel
Set Coil
Release Solenoid
Yel
Purple
S
Yel
F2
Yel
Release Coil
30
40
3
2
4
1
Cordless Remote Push Button
“LODAR” Model #110000
