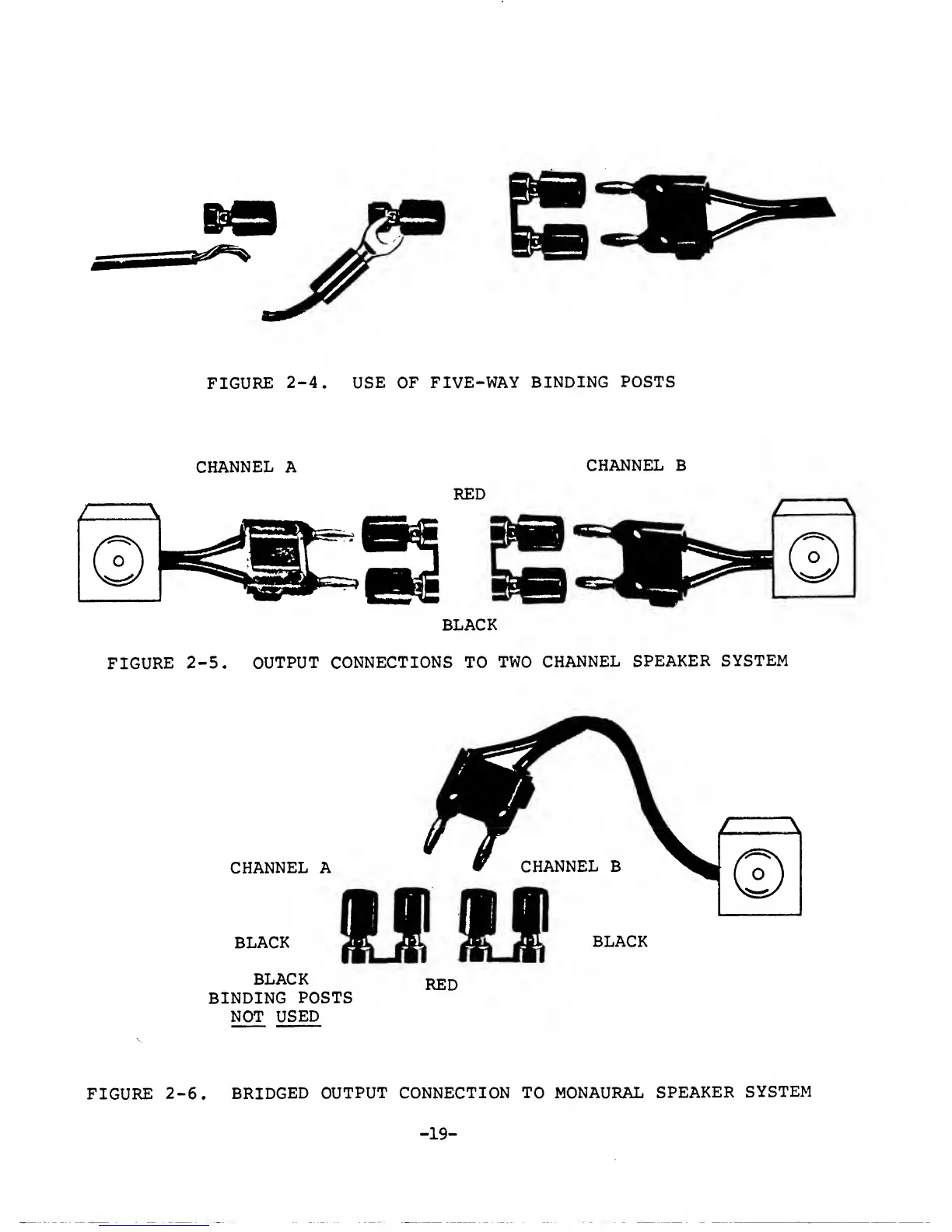

FIGURE
2-4.
USE OF FIVE-WAY
BINDING
POSTS
CHANNEL A
CHANNEL
B
BLACK
FIGURE
2-5.
OUTPUT
CONNECTIONS TO
TWO
CHANNEL
SPEAKER
SYSTEM
CHANNEL
A
BLACK
BLACK
BINDING
POSTS
NOT USED
RED
FIGURE
2-6.
BRIDGED
OUTPUT
CONNECTION TO MONAURAL
SPEAKER
SYSTEM
