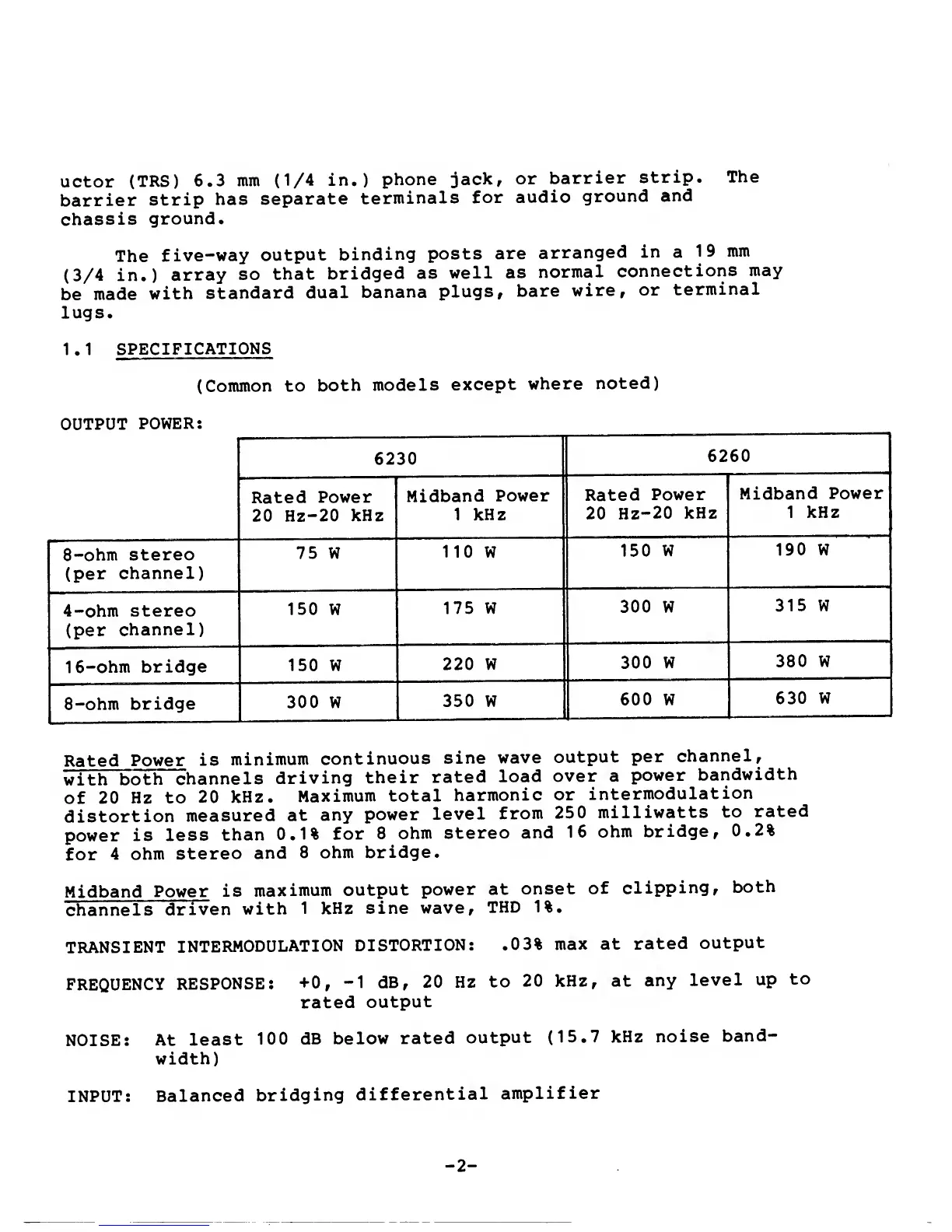

JBL 6230 - 1.1 SPECIFICATIONS

uctor
(TRS)
6.3 mm
(1/4
in.)
phone
jack,
or
barrier
strip.
The
barrier
strip
has
separate
terminals
for
audio
ground
and
chassis
ground.
The
five-way
output
binding
posts
are
arranged
in a
19 mm
(3/4
in.)
array
so
that
bridged
as
well
as
normal
connections
may
be
made
with
standard
dual
banana
plugs,
bare
wire,
or
terminal
lugs.
1
. 1
SPECIFICATIONS
(Common
to
both
models
except
where
noted)
OUTPUT
POWER:
6230
6260
Rated
Power
20 Hz-20
kHz
Midband
Power
1 kHz
Rated
Power
20 Hz-20
kHz
Midband
Power
1 kHz
8-ohm
stereo
(per
channel)
75
W
110
W
150 W
190 W
4-ohm
stereo
(per
channel)
150 W
175 W
300 W
315 W
16-ohm
bridge
150
W
220 W
300 W
380
W
8-ohm
bridge
300
W
350
W
600
W
630 W
Rated
Power
is
minimum
continuous
sine
wave
output
per
channel,
with
both
channels
driving
their
rated
load
over a
power
bandwidth
of
20
Hz to
20 kHz.
Maximum
total
harmonic
or
intermodulation
distortion
measured
at
any
power
level
from
250
milliwatts
to
rated
power
is
less
than
0.1%
for
8
ohm
stereo
and
16
ohm
bridge,
0.2%
for
4 ohm
stereo
and
8 ohm
bridge.
Midband
Power
is
maximum
output
power
at
onset
of
clipping,
both
channels
^driven
with
1 kHz
sine
wave,
THD 1%.
TRANSIENT
INTERMODULATION
DISTORTION:
.03%
max at
rated
output
FREQUENCY
RESPONSE:
+0,
-1
dB,
20 Hz
to
20 kHz, at
any
level
up
to
rated
output
NOISE:
At
least
100
dB below
rated
output (15.7
kHz
noise
band-
width)
INPUT:
Balanced
bridging
differential
amplifier
-
2
-
