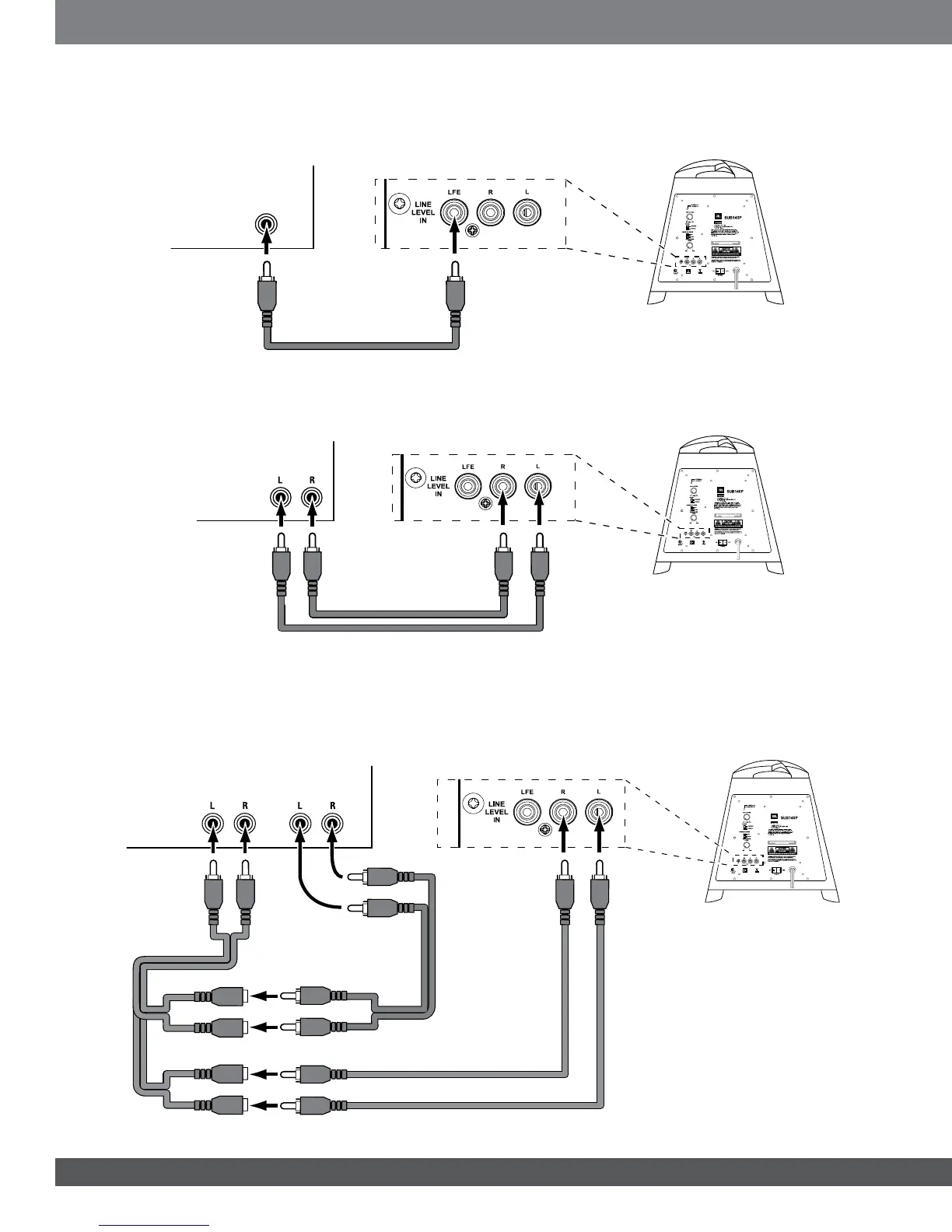

CONNECTING THE SUBWOOFER
TO A RECEIVER OR PREAMP/PROCESSOR WITH A DEDICATED SUBWOOFER OUTPUT
Mono RCA Cable
(included)
Receiver or
Amplifier
SUBWOOFER
LFE OUT
SUB 140P
Subwoofer
Mono RCA Cable
(included)
Mono RCA Cable
(not included)
SUB 140P
Subwoofer
Receiver or
Amplifier
PREAMP
OUTPUTS
PREAMP
OUTPUTS
MAIN AMP
INTPUTS
Mono RCA Cable
(included)
Stereo
Audio Cable
(not included)
Stereo
“Y” Cable
(not included)
Mono RCA Cable
(not included)
Receiver or
Amplifier
SUB 140P
Subwoofer
TO A RECEIVER OR PREAMP/PROCESSOR WITH A PREAMP OUTPUTS
TO A RECEIVER OR PREAMP/PROCESSOR WITH A PREAMP OUTPUTS CONNECTED TO MAIN AMP INPUTS
