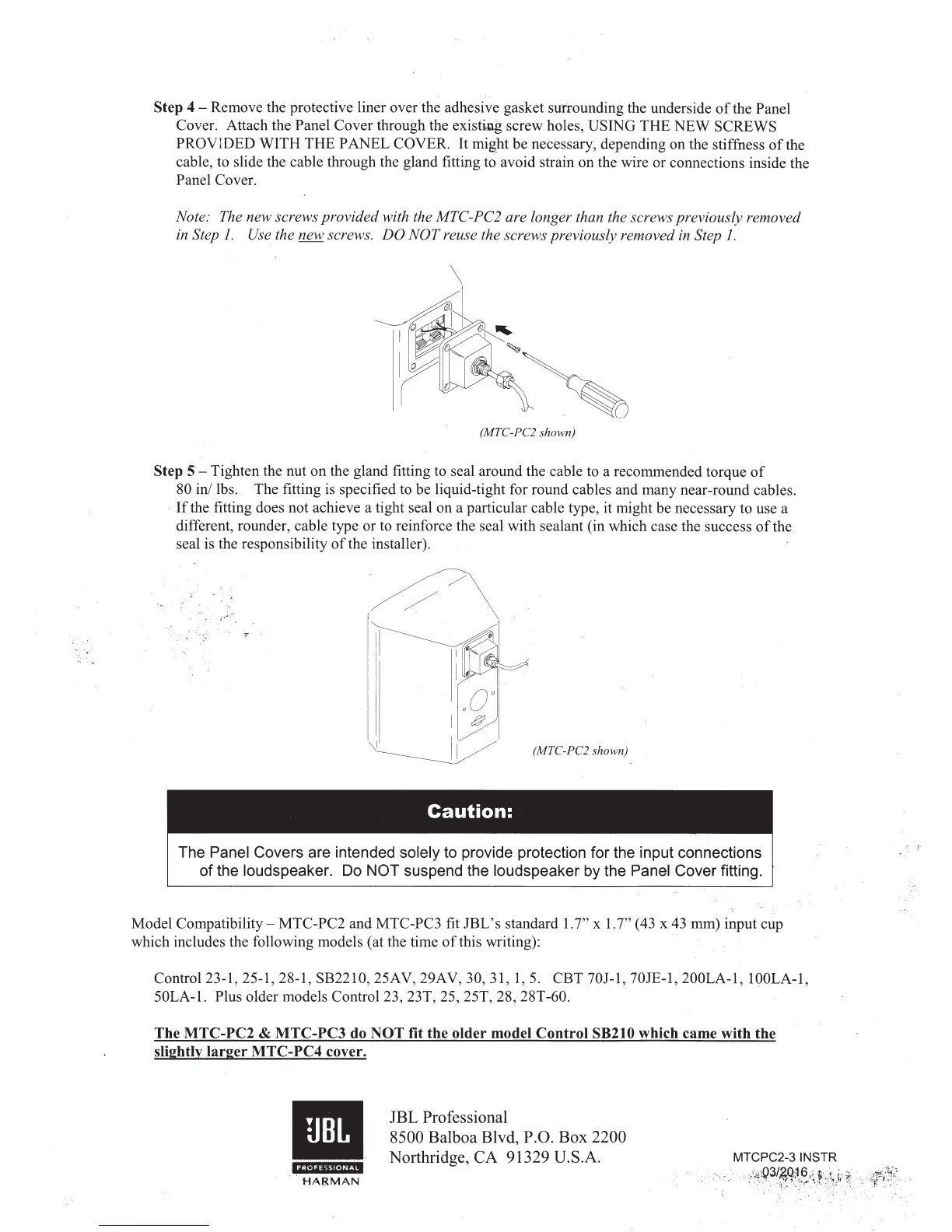

Step
4-
Remove the protective liner over the adhesive gasket surrounding the underside
of
the Panel
Cover. Attach the Panel Cover through the existing screw holes, USING THE NEW SCREWS
PROVIDED WITH THE PANEL COVER.
It
might be necessary, depending on the stiffness
of
the
cable,
to
slide the cable through the gland fitting
to
avoid strain on the wire
or
connections inside the
Panel Cover.
Note: The new screws provided with the MTC-PC2 are longer than the screws previously removed
in Step
1.
Use the new screws. DO
NOT
reuse the screws previously removed
in
Step
1.
(MTC-PC2 shown)
Step 5
-Tighten
the nut on the gland fitting to seal around the cable to a recommended torque
of
80 in!lbs. The fitting
is
specified to be liquid-tight for round cables and many near-round cables.
If
the fitting does not achieve a tight seal
on
a particular cable type,
it
might be necessary to use a
different, rounder, cable type or
to
reinforce the seal with sealant (in which case the success
of
the
seal is the responsibility
of
the installer).
~
~
=
~\
1.
[
-------~~
,
~·
..
I i
~
- ~
~
: I
11
j '
I
I
~
'L._______
~
(M
TC-
PC2 sh
ow
n)
Caution:
The Panel Covers are intended solely
to
provide protection for the input connections
of
the loudspeaker. Do NOT suspend the loudspeaker by the Panel Cover fitting.
Model Compatibility - MTC-PC2 and MTC-PC3 fit JBL's standard 1.7" x 1.7" (43 x
43
mm) input cup
which includes the following models (at the time
of
this writing):
Control23-1, 25-1, 28
-1
,
SB
2210, 25AV, 29AV, 30,
31
, 1, 5. CBT 70J-l, 70JE
-1
, 200LA-1,
lOOLA-1
,
50LA-l. Plus older models Contr
ol23,
23T, 25, 25T, 28, 28T-60.
The
MTC-PC2 &
MTC-PC3
do
NOT
fit the older model
Control
SB210 which came
with
the
slightly
larger
MTC-PC4
cover.
II
. 'k'IQ$Bj[.Vhi
HAS
MAN
JBL Professional
8500 Balboa Blvd, P.O. Box 2200
Northridge, CA 91329 U.S.A.
MTCPC2-3 INSTR
·,;
;
~
'
'
