JBL Control 29AV-1 - High-Pass Frequency Recommendations

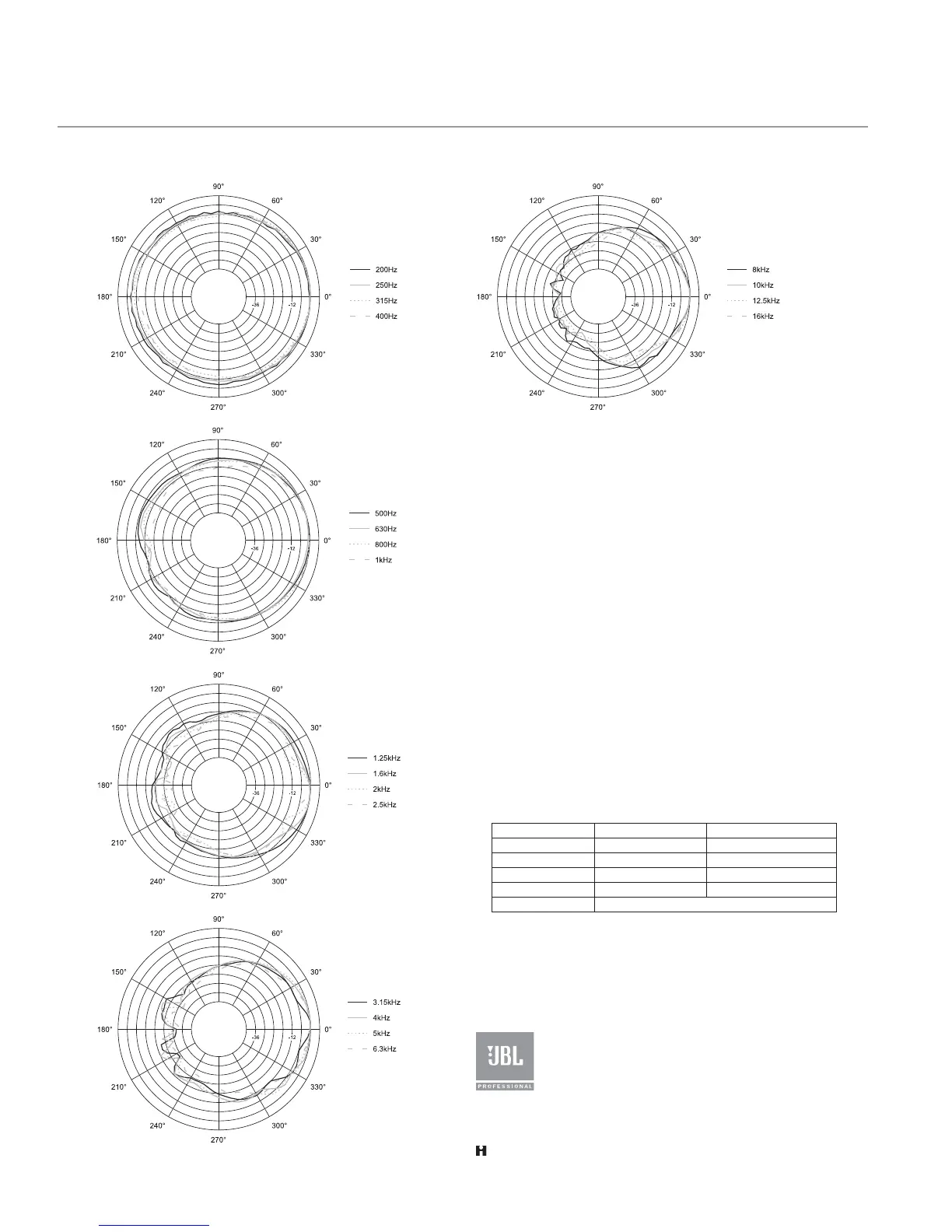

Vertical 1/3 Octave Polars
䉴 Control
®
29AV-1 Premium Indoor/Outdoor Monitor Speaker
JBL Professional
8500 Balboa Boulevard, P. O. Box 2200
Northridge, CA 91329 USA
A Harman International Company
SSCNTRL 29AV-1
CRP 5M 5/05
The line-matching transformer in the Control 29AV-1 has
been designed to minimize saturation; however, it is
recommended that the system be high-passed to prevent
very low-frequency content from overloading the
transformer and/or the driving amplifi er at high signal
levels. The high-pass requirements vary according to the
tap settings and number of speakers connected in
parallel. The following chart will eliminate risk of
saturation, even at full-voltage (70V or 100V) peaks.
Reducing the drive voltage will enable a corresponding
reduction of high-pass frequency (24 dB/octave high-pass
slope).
High-Pass Recommendations for Control 29AV-1
High-Pass Frequency Recommendations
1 or 2 speakers 3 or more speakers
14 Watt Tap 30 Hz 35 Hz
28 Watt Tap 35 Hz 40 Hz
55 Watt Tap 60 Hz 70 Hz
110 Watt Tap 80 Hz 90 Hz
8 Ohm Setting No high-pass required
