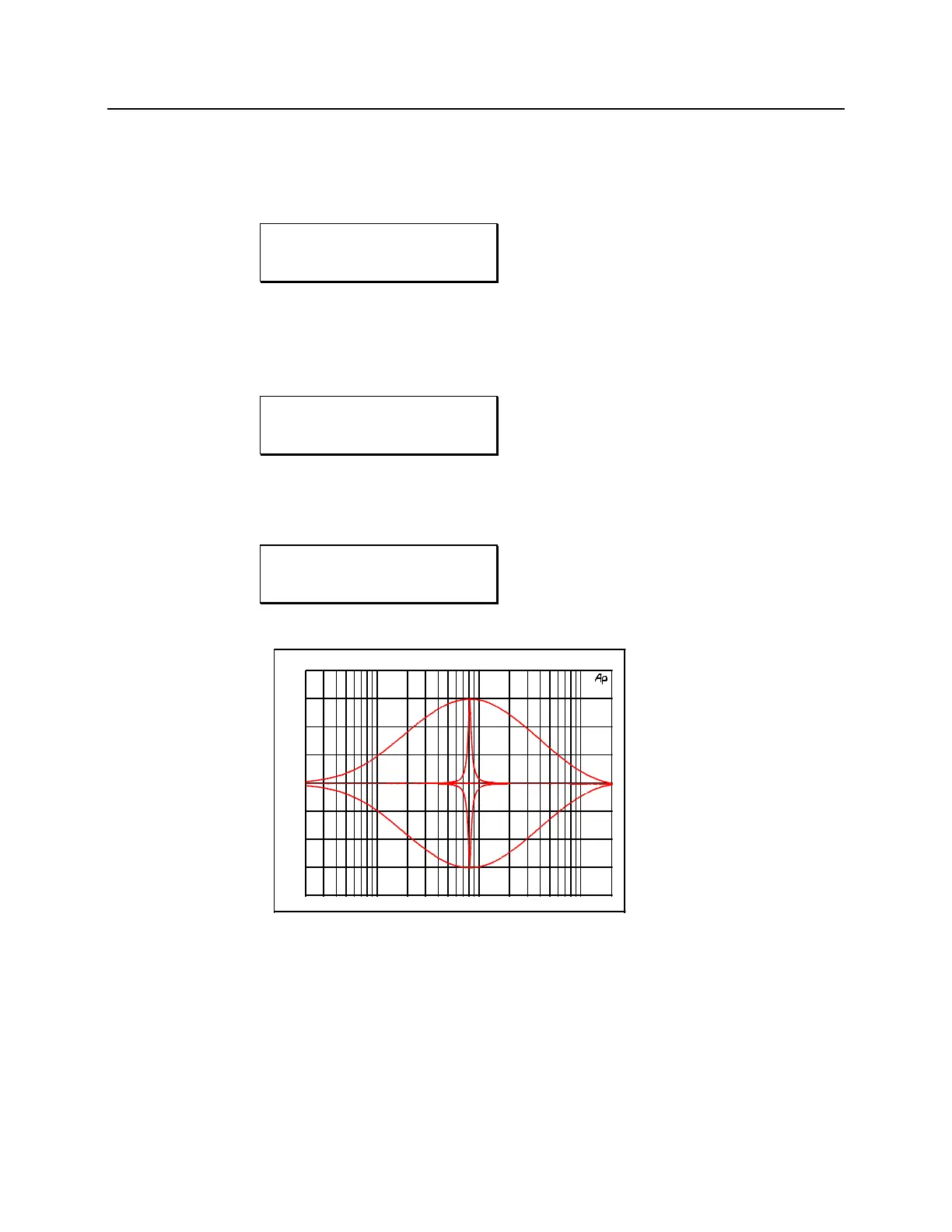

9.2 EQ Frequency 15Hz to 16kHz The Frequency of the EQ is adjustable in approximately 1/6 Octave steps. The screen below shows
that this is the first EQ on output 5 which is labeled High. It has a Frequency of 220.0 Hz. (Since it is a Low Shelving filter
this is the - 3dB point.)
EQ freq on Output 5
OUT 5 High
Eq1M Frq 220.0Hz
9.3 EQ Cut/Boost -15 to +15dB in 0.5dB steps. Setting an EQ cut/boost to 0dB effectively de-assigns the filter, allowing it to be
assigned to another channel.
EQ cut/boost on Output 5
OUT 5 High
Eq1M +/- -15.0dB
9.4 EQ Bandwidth 0.05 to 3.00 Octaves in 0.05 Octave steps. Width is only available for Bell type EQs. The limits of the width are
shown in Figure 14.
EQ width on Output 6
OUT 6 High
Eq1M Wid 0.30Oct
vs
-30.00
-25.00
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
10.000
AMPL(dBu)
20 100 1k 10k 20k
FREQ(Hz)
Figure 14 Limits of EQ Width
