NOTE: You can connect up to 8 speakers to the JBL DSP Amplifier, then specify the frequencies the amplifiers sends to each one
with the JBL tuning software. See “Setting the Sound” for details.
NOTE: If you decide you need more power in your system, you can use two or more of the speaker output wires to connect one or
more additional amplifiers. Connect the desired number of speaker output wires to the high-level inputs of the new amplifier(s).
IMPORTANT: make sure to adjust the output levels of the channels you are connecting to the extra amplifier(s) to ensure that you
do not overdrive the external amplifier(s) and reduce noise, if present
IMPORTANT: None of the speaker output channels can be bridged.

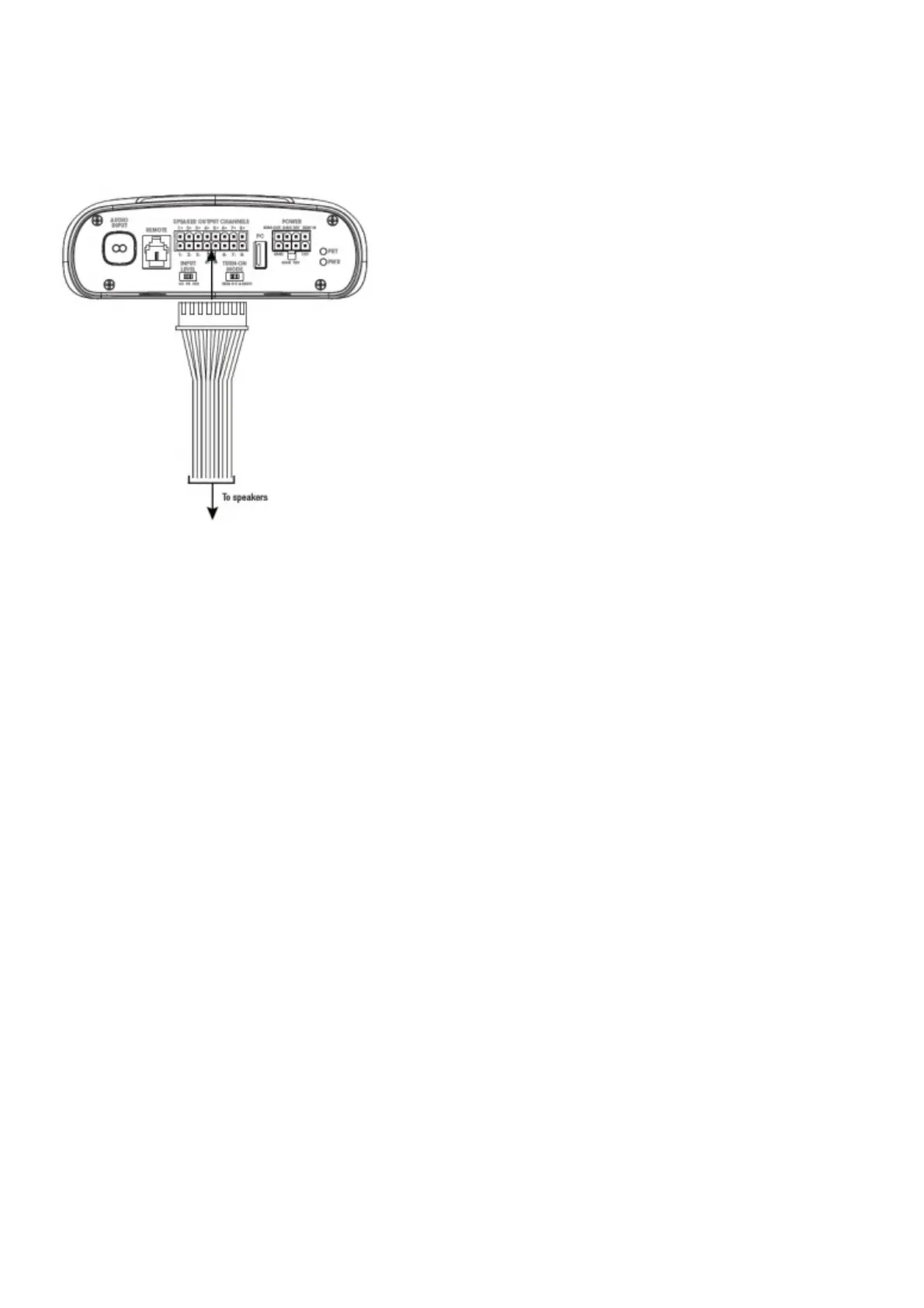

Wire color Channel designation
White Channel 1 +
White/Black Channel 1 –
Gray Channel 2 +
Gray/Black Channel 2 –
Green Channel 3 +
Green/Black Channel 3 –
Purple Channel 4 +
Purple/Black Channel 4 –
To Next Page
