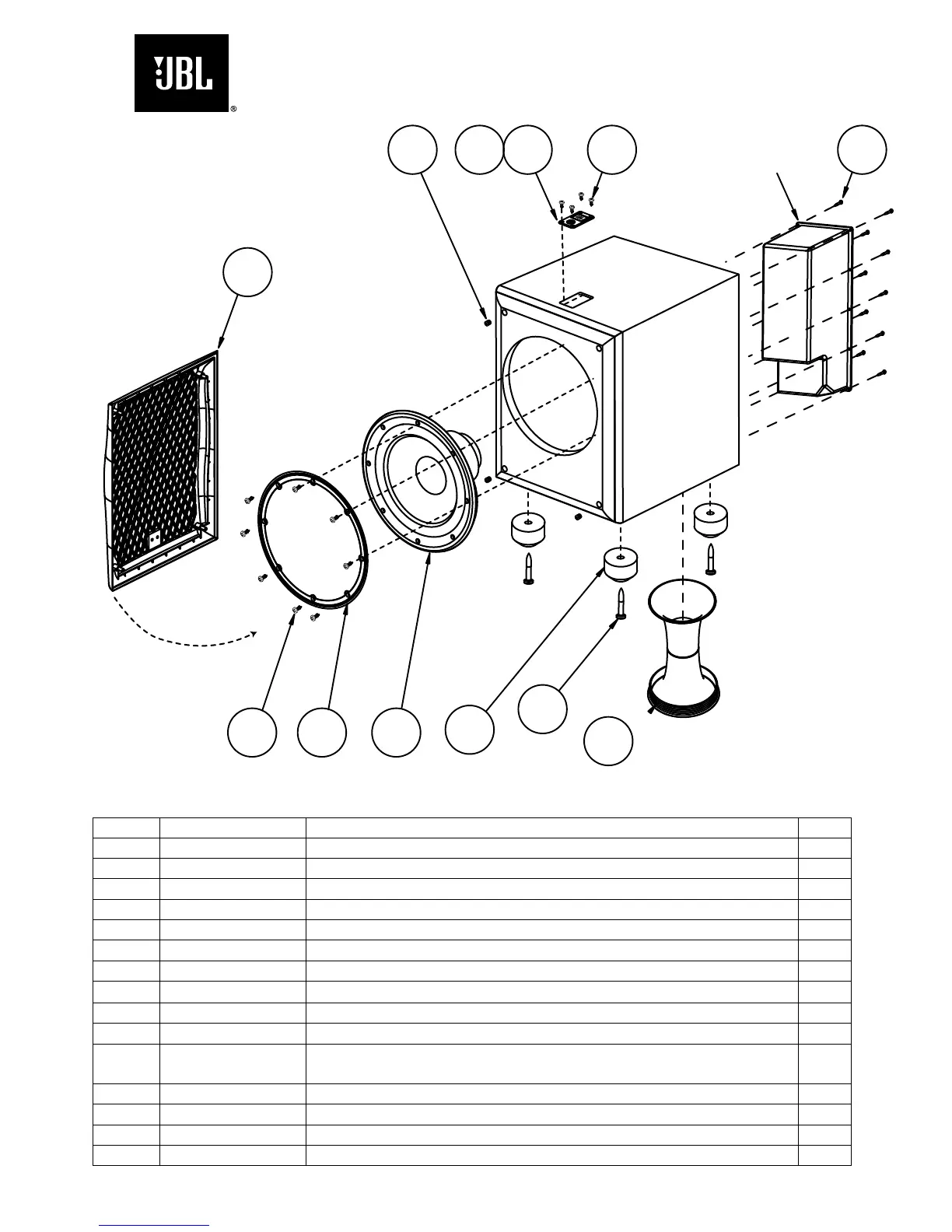

JBL E250P - EXPLODED VIEW; Parts List Details

Ref# Part Number Description Qty
6 351348-001 PLATE,LED/LOGO-E250P 1
7 338125-002 ASY,LED-E250P/E250P 1
8 336486-001 ASY,FOOT,PLSTC- E250P 4
9 763-31110-40 SCREW, 8 X 2 1/2,TR,PH,PB,BLK ZINC,LCS (FOOT) 4
10 908302-012 SCREW, PB,HXS,#6x.75,ZINC (LOGO PLATE) 4
11 903802-016 SCREW, PB,HXS,#8x1",ZINC (WOOFER) 8
12 338128-002
ASY, WOOFER,12" DCR 4.8 Ω
1
13 336799-001 ASY, PORT TUBE 1
14 351307-001 GRILLE, BLK, FRNT 1
15 333249-003 CUP,GRILLE,TITANIUM, (BEECH MODEL) (CHERRY
MODEL)
4
333249-001 CUP,GRILLE (BLACK MODEL) 4
16 351243-001 RING,TRIM,12"-E250P 1
17 903401-012 SCREW, 6 X 3/4,PAN,PH,PB,BLK ZINC,LCS (AMPLIFIER) 10
13
12
16
15
7
6
10
17
14
11
9
8
Amplifier – Not for Sale
E250P
Exploded View
