JBL EON 515 XT - EON515 XT Specifications; System Specification; Amplification; Speaker Specification

11
EON515XT Specications
System Type:
Self powered 15", two-way, bass-reex
Maximum SPL Output: 132 dB
Frequency Range (-10 dB): 39 Hz -20 kHz
Frequency Response (±3 dB): 42 Hz - 18 kHz
Input Connectors:
2 x 1/4" TRS phone jacks balanced/unbalanced 1 x XLR / 1/4" TRS combo jack with XLR loop through
Input Impedance: 14k ohms
Signal Indicators: Limit: Red LED indicates limiter active condition
Signal: Green LED indicates signal present
Mic: Indicates the MIC/LINE switch is in the “MIC” position
EQ:
Individual Bass and Treble controls, center detent, 6 dB cut and boost
Bass +/- 6 dB (200 Hz turnover frequency)
Treble +/- 6 dB (4 kHz turnover frequency)
Mic Input Gain: -Innity to +40 dBu
Line Input Gain: -Innity to +4 dBu (+18 dBu maximum input level)
Limiter: Yes
Amplier Design: Crown
®
Class-D
System Power Rating: 625 Watts (525 + 100)
LF Driver:
1 x JBL 265F-1 380 mm (15") Differential Drive
®
integrated woofer with dual 2" voice coils
HF Driver:
1 x JBL 2414H 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
Coverage Pattern: 100º H x 60º V nominal
Crossover Frequency: 1.7 kHz
Material: Polypropylene, multi-purpose main & monitor
Suspension / Mounting: 36 mm pole socket with stabilizing screw, 5 x M10 suspension points
Handles: One left/right side, one on top, with rubber grip
Finish: Black Granite
Grille: Powder coated perforated steel with acoustically transparent cloth backing.
Dimensions (H x W x D):
673 mm x 406 mm x 368 mm (26.5" x 16" x 14.5")
Gross Weight: 24.2 kg (53.5 lb)

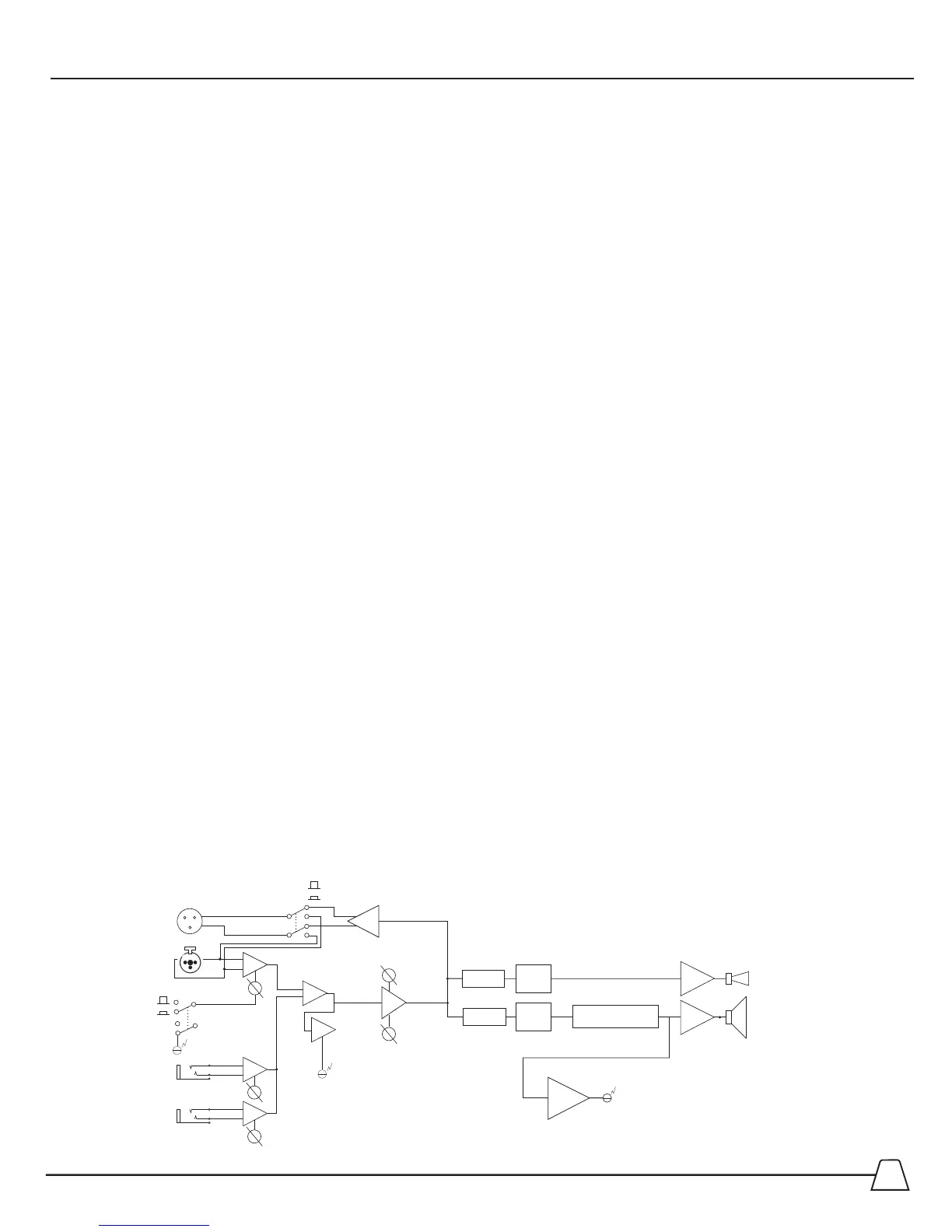

Block Diagram
System Specication
Amplication
Speaker Specication
MIC
SIGNAL
LEVEL 2
LEVEL 1
INPUT 3
OUT
LOOP
MIX
INPUT 2
INPUT 1
BASS
HPF
LEVEL 3
LF
HF
SUM
LINE
MIC
LPF
TREBLE
EQ COMPRESSOR
OVERLOAD LED
EQ
Enclosure
