JBL Eon206P User Manual

9

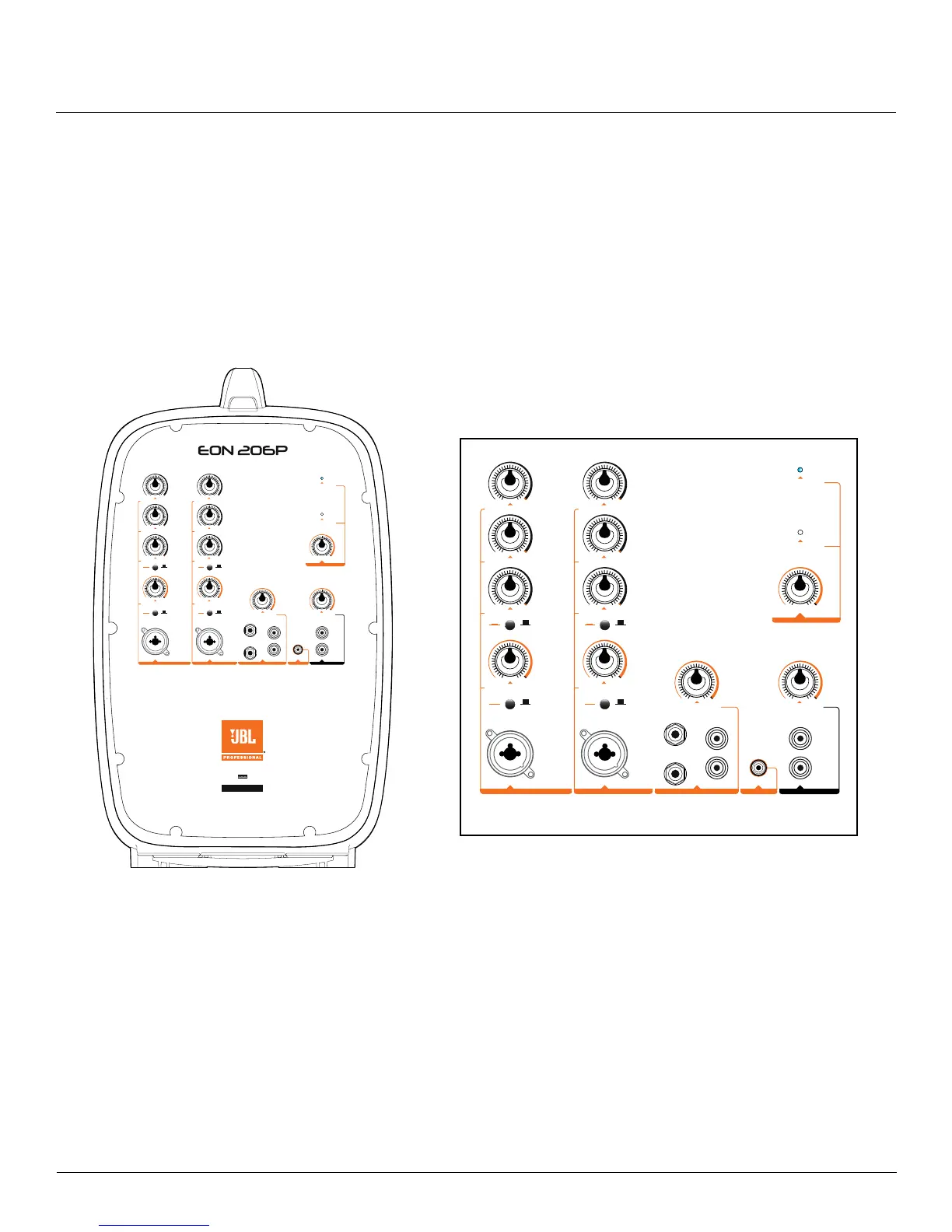

Getting Acquainted with the EON 206P Powered Mixer
This part of the EON 206P system houses the mixing board and power amplier. You will connect all of the
microphones, musical instruments, external sound sources (like MP3 or CD players), in addition to any recording
devices or additional speakers like a personal monitor, subwoofer or “Front of House” feed.
The Basics
The mixing board is actually a very simple device. A “mixing board” brings audio sources “in” (through
the inputs) and routes the signal to the outputs (MASTER VOLUME/SPEAKER OUTPUTS or MONITOR
OUTPUTS). The mixer controls enable the user to affect the tone and/or volume in addition to routing the signal
and adding reverb to individual input sources.
Let’s look at the “inputs” rst:
AUDIO INPUTS
The EON 206P has 6 inputs: 2 mono inputs and 2 stereo inputs.
All of the inputs will route to the speakers and to the MONITOR OUTPUT SECTION.
MONO MIC/LINE INPUTS
Moving from left to right there are 2 identical input strips comprised of (from top to bottom) a treble control,
bass control, reverb control, reverb on/off button, volume control, mic/line selector and a XLR 1/4"
combination conector.
POWER
LIMIT
MASTER
VOLUME
VOLUMEVOLUME
L
R
L
R
VOLUME
REVERB
BASS
TREBLE
VOLUME
REVERB
BASS
TREBLE
ON OFF
MIC LINE
ON OFF
MIC LINE
DESIGNED AND ENGINEERED IN THE USA
MONITOR
OUT
CH 5/6CH 3/4CH 2CH 1
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTERNATIONAL COMPANY
SERIAL NO:
POWER
LIMIT
MASTER
VOLUME
VOLUMEVOLUME
L
R
L
R
VOLUME
REVERB
BASS
TREBLE
VOLUME
REVERB
BASS
TREBLE
ON OFF
MIC LINE
ON OFF
MIC LINE
D ESIGNED AND ENGINEERED IN THE USA
MONITOR
OUT
CH 5/6CH 3/4CH 2CH 1
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTERNATIONAL COMPANY
SERIAL NO:
