JBL GX-A3001 Owner's Manual

12
12
USING THE SPEAKER-LEVEL INPUTS
If your source unit doesn't have line-level outputs you can use the included speaker-level input harness to connect
the amplifier to the source unit's speaker outputs. From left to right, the conductors are: L+, L–, R–, R+ (see the
illustration to the right). The speaker-level connectors on all GX-series amp models follow this wiring configuration.
Follow the instructions in the previous sections, substituting the speaker-level connectors for the line-level
connectors.

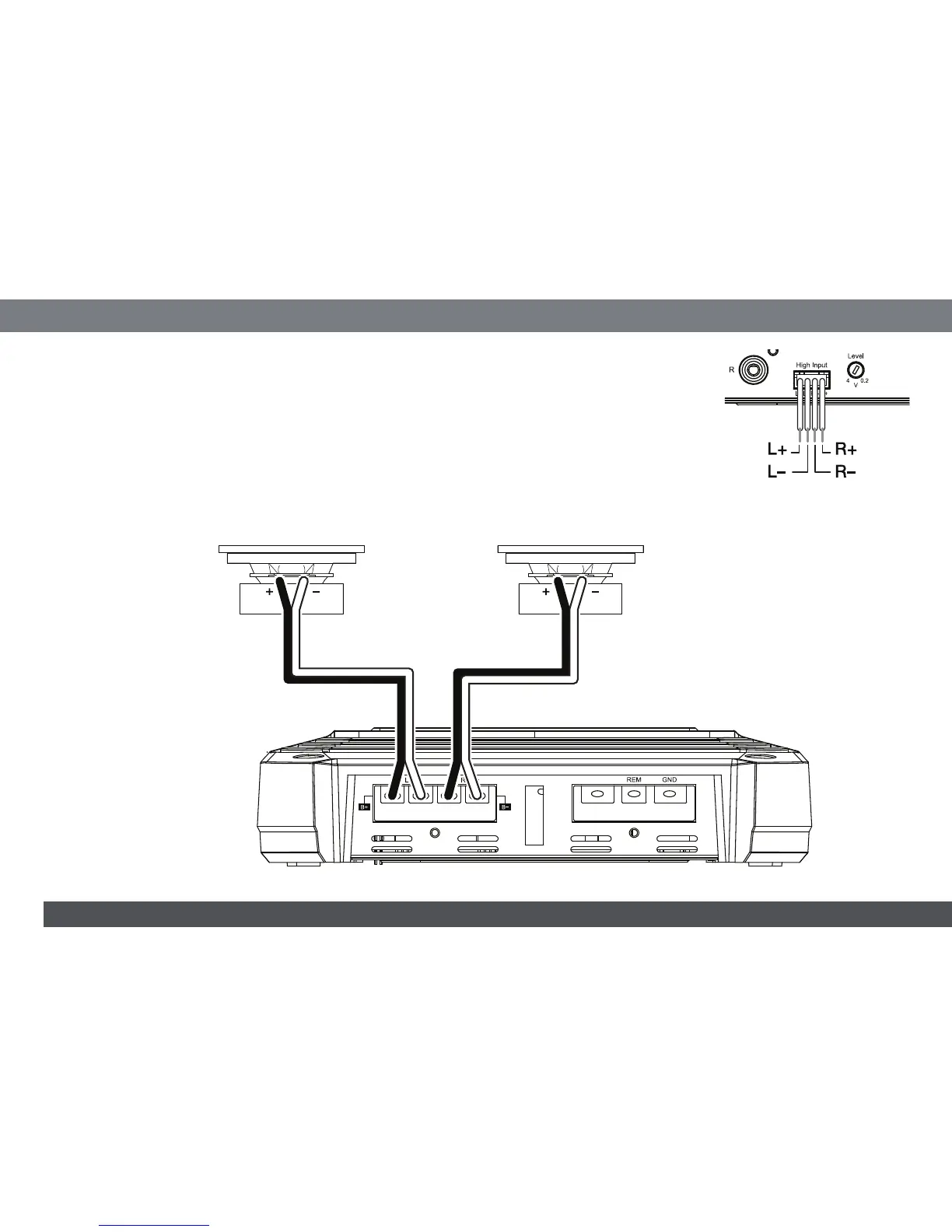

GX-A602 SPEAKER CONNECTIONS; 2-CHANNEL OPERATION
Minimum speaker impedance: 2 ohms (each)
Connect the left and right speakers to the FL and FR (+) and (–) terminals.
Fuse 25A
+12V
Speaker
Front Left Speaker Front Right Speaker

JBL GX-A3001 Specifications

General

Amplifier class	-
Frequency range	10 - 320 Hz
Audio output channels	1.0 channels
Peak power per channel	415 W
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (2 Ohm)	300 W
RMS power output per channel (4 Ohm)	200 W
DC-in jack	Yes
Line inputs (RCA)	2
Speakers connectivity type	RCA
Product color	Black

Weight and Dimensions

Depth	52 mm
Width	206 mm
Height	291 mm
