JBL GX-A3001 Owner's Manual

6
6
SPEAKER AND INPUT CONNECTIONS
Always connect the (+) speaker terminal on the ampli er to the (+) terminal on the speaker and the (–) speaker terminal on the ampli er to the (–) terminal
on the speaker.
IMPORTANT: Make sure the (+) and (–) bare wires do not touch each other or the other terminal at both the amplifier terminals and speaker
terminals. Touching wires can cause a short circuit that can damage the amplifier.

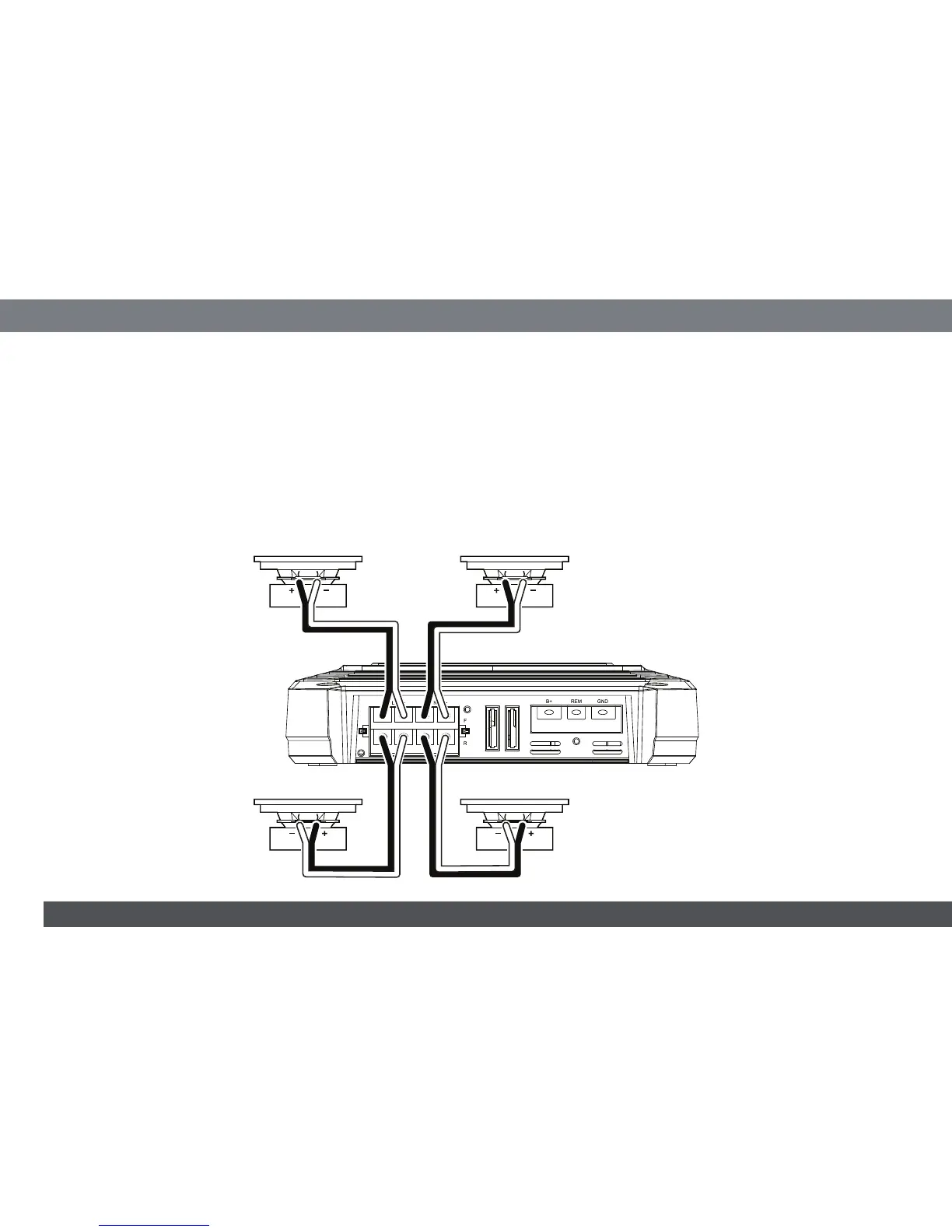

GX-A604 SPEAKER CONNECTIONS: 4-CHANNEL OPERATION
Minimum speaker impedance: 2 ohms (each)
• Connect the front speakers to the FL and FR (+) and (–) terminals.
• Connect the rear speakers to the RL and RR (+) and (–) terminals.
Speaker
Fuses 20A
Front Left Speaker
Front Right Speaker
Rear Left Speaker Rear Right Speaker

JBL GX-A3001 Specifications

General

Amplifier class	-
Frequency range	10 - 320 Hz
Audio output channels	1.0 channels
Peak power per channel	415 W
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (2 Ohm)	300 W
RMS power output per channel (4 Ohm)	200 W
DC-in jack	Yes
Line inputs (RCA)	2
Speakers connectivity type	RCA
Product color	Black

Weight and Dimensions

Depth	52 mm
Width	206 mm
Height	291 mm
